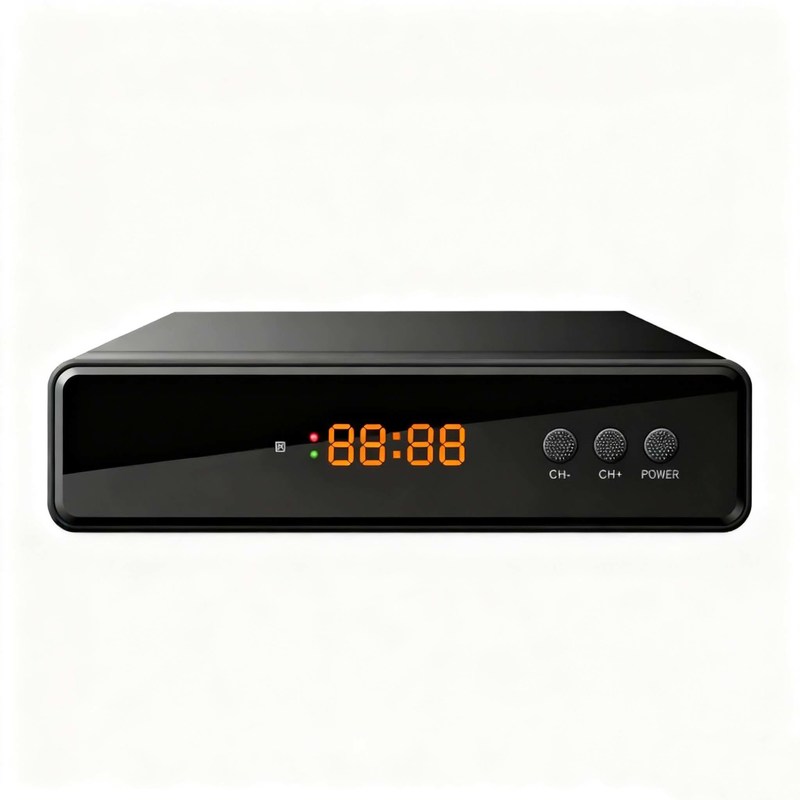

FTA Receiver DVB-S DVB-S2 DVB-S2X Set Top Box With 64MB SDRAM 1080P Output

DVB-S Set Top Box 64MB

DVB S2X Set Top Box

DVB S2 Set Top Box 1080P

Place of Origin:

CHINA

Brand Name:

SETON

Chat Now

Request A Quote

Product Details

Main Processor:

Montage M88CS8001B-S

Flash Memory:

4MB

SDRAM:

64MB

Output Format:

1080P, 1080i, 720P And 576P

Highlight:

DVB-S Set Top Box 64MB

DVB S2X Set Top Box

DVB S2 Set Top Box 1080P

Payment & Shipping Terms

Minimum Order Quantity

1000pcs

Packaging Details

CARTON

Delivery Time

30-35 days

Payment Terms

T/T,Western Union

FTA Receiver DVB-S DVB-S2 DVB-S2X Set Top Box With 64MB SDRAM 1080P Output

Chat Now

86-0735-8888458

huang@setontech.cn

Chat Now

Product Description

STB FTA Receiver DVB-S DVB-S2 DVB-S2X

System and Memory

Fully comply with DVB-S/S2/S2X, EN 300 421/EN 302 307-1/EN 302 307-2 Standard
Support EPG, display present / next TV Program / 7 days EPG
Support up to DiSEqC 1.0 / 1.1 / 1.2 & USALS
PAL & NTSC Auto Switch
Parent control
Support Favorites Group
Auto scan / TP scan / Blind scan
Support Teletext / Subtitle
Selectable output for 1080P, 1080i, 720P and 576P format
User-friendly remote control with colored function buttons
USB Multimedia files playback&PVR
Unicable Support
Support Cas(cardless)
USB Wifi, YouTube(optional)

Main Processor: Montage M88CS8001B-S

Flash Memory: 4MB

SDRAM: 64MB

Video Decoder

Video:

MPEG-2 MP@ML/HL
H.264 BP(with no ASO/FMO),MP& HP@ L3/L4.1
AVS Jizhun profile @ L6.0/L4.0
AVS Broadcast profile @ L6.O/L4.0
MPEG-4 SP Profile, Advanced Simple Profile@Level 5 without GMC/Data Partitioning/Reversible VLC
VC1 SP@ML,MP@HL,AP@L0~3
H.263 baseline profile
JPEG decoder engine

Audio:

MPEG-1/2 Layer I/II/III
Dolby AC3IAC3+(optional)
DRA2 CH/5.1 CH(optional)

Video resolution:

1080P, 1080i, 720P and 576P

Aspect Ratio:

4:3, 16:9

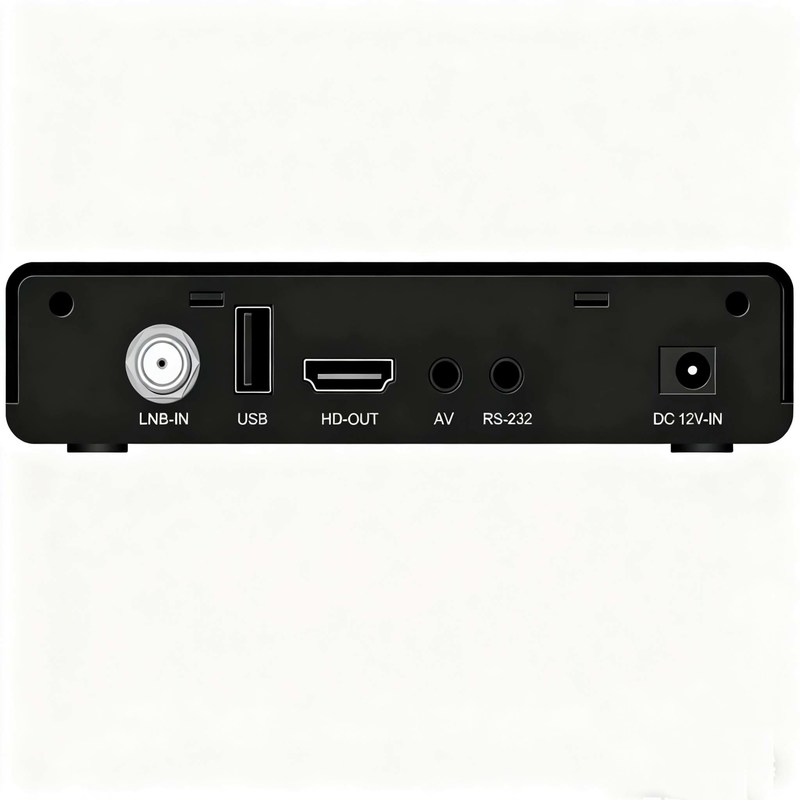

Connector	Tuner
LNB IN (F Type)1 USB 2.0 2 AV Socket 1 RS 232 HDMI JACK1 DC IN (12V)*1	Front End: DVB-S2 M88TS6011 Input Frequency Range: 950 ~ 2150MHz RF input Signal Level: -80 ~ -25 dBM

General Data

Demodulator

Input Voltage range: 100~240V 50~60Hz

Power Consumption: Max 12W (Working mode) Max 0.5W (Standby mode)

Demodulation: QPSK, 8PSK, 16APSK & 32APSK
FEC Code rate: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
