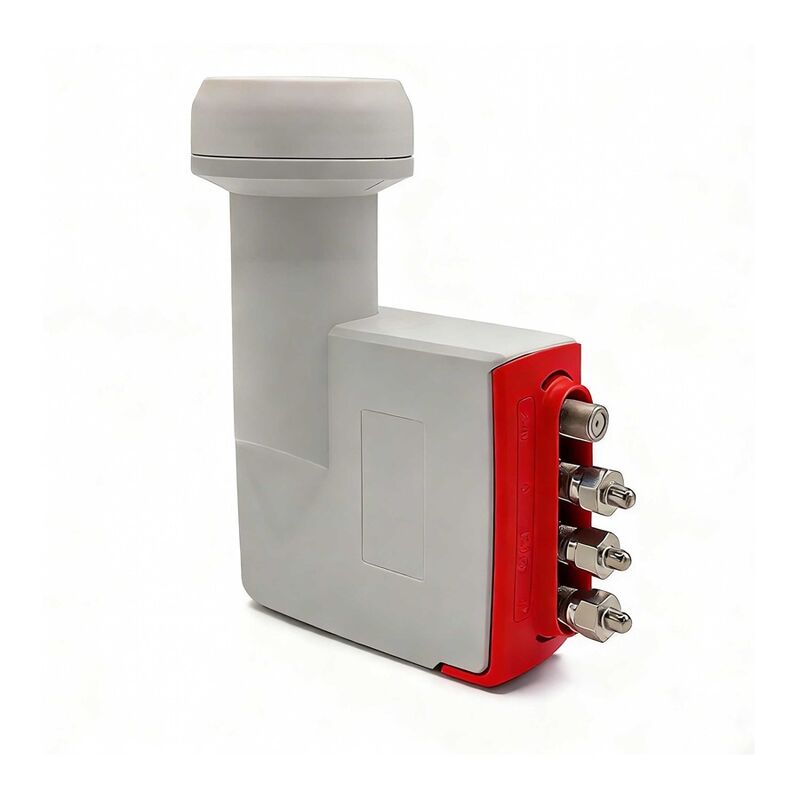

Name: 4 Band LNB 32 Band LNB One Cable Solution DCSS LNB EN50494 EN50607 Compliant Stack LNB
Brand: Chenzhou Seton Technology Co., Ltd
SKU: DCSS-LNB
Availability: InStock

Haus > produits > DCSS-LNB >

4 Band LNB 32 Band LNB One Cable Solution DCSS LNB EN50494 EN50607 Compliant Stack LNB

32 User Bands DCSS LNB

One Cable Solution LNB

EN50494 EN50607 Compliant Stack LNB

Herkunftsort:

China

Markenname:

SETON

Modellnummer:

DCSS-LNB

Plaudern Sie Jetzt

Fordern Sie ein Zitat

Produktdetails

Eingangsfrequenzbereich:

10.7 GHz ~ 12.75 GHz

Ausgangsfrequenzbereich:

750 MHz ~ 2350 MHz

Rauschfigur:

1.0db (max.)

Lo Phasenrauschen bei 10 kHz:

-80dbc/hz

Conversion-Gewinn:

55 dB ~ 65 dB/ 60 dB (Typ.)

Benutzerbänder:

4 ~ 32Bands

Hervorheben:

32 User Bands DCSS LNB

One Cable Solution LNB

EN50494 EN50607 Compliant Stack LNB

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge

1000 Stück

Verpackung Informationen

Karton

Lieferzeit

30-35 Tage

Zahlungsbedingungen

T/T, Western Union

Versorgungsmaterial-Fähigkeit

15 Millionen Stücke

Verwandte Produkte

Video

4 - 32 Band DCSS LNB One Cable Solution EN50494 EN50607

Plaudern Sie Jetzt

Treten Sie mit uns in Verbindung

86-0735-8888458

huang@setontech.cn

Plaudern Sie Jetzt

Produkt-Beschreibung

4 Band LNB 32 Band LNB One Cable Solution DCSS LNB

Advanced satellite LNB supporting EN50494 and EN50607 standards for multi-receiver installations through a single cable.

Main Features

One Cable Solution for multiple receivers
Support for up to 32 user bands
Dynamic and Static mode operation
DiSEqC 1.x/2.x primary control protocol
EN 50494/EN 50607 European technical standards compliance
AGC/ALC function for optimal signal quality

Technical Specifications

Parameter	Specification
Input Frequency Range	10.7GHz ~ 12.75GHz
Output Frequency Range	750MHz ~ 2350MHz
Noise Figure	1.0dB (Max.)
LO Initial Accuracy (25℃)	±0.5MHz
LO Temperature Drift	±0.75MHz
LO Phase Noise @ 10 KHz	-80dBc/Hz
Conversion Gain	55dB~65dB / 60dB (Typ.)
Gain Variation	±0.5dB/26MHz
O/P 1dB Compression Point (P1 dB)	0.0dBm (Min.)
Image-Rejection	-40dBc (Min.)
Crosstalk Isolation	22dB (Min.)
O/P VSWR	2.5:1
Control Signals	DiSEqC 1.X/DiSEqC 2.X; EN50494/50607
DC-Power	18V/350Vdc*mA
Output Impedance	75Ω (F-Type)
Working Temperature	-30℃~+70℃
Waterproof	O-RING
User Bands	4~32 bands

One Cable Solution Technology

This advanced LNB enables connection of multiple set-top boxes (STB) through a single RG6 cable, providing an energy-efficient multi-user receiving solution. Also known as stack LNB technology, it represents the evolution of satellite distribution.

Key Benefits

Simplified wiring with single cable runs
Cost-effective multi-receiver installations
High performance with dual-channel capability
Future-proof design for expanding systems

Ideal for: Installations where running multiple cables is difficult, expensive, or impractical, but multiple receivers are needed. Particularly valuable in apartments, older buildings, or professional installations where cable management is critical.

Advantages

Installation Benefits

Single cable run reduces installation complexity
Lower material costs (less cable, fewer connectors)
Easier retrofits in existing buildings
Cleaner appearance (no multiple cable bundles)

Performance Benefits

Minimal signal loss compared to traditional multi-switch systems
No external power required for switching
Simultaneous access to both polarizations
Future-proof for additional receivers (with splitters)

Operational Benefits

No switching delays between channels
Independent receiver operation
Automatic configuration with compatible receivers
