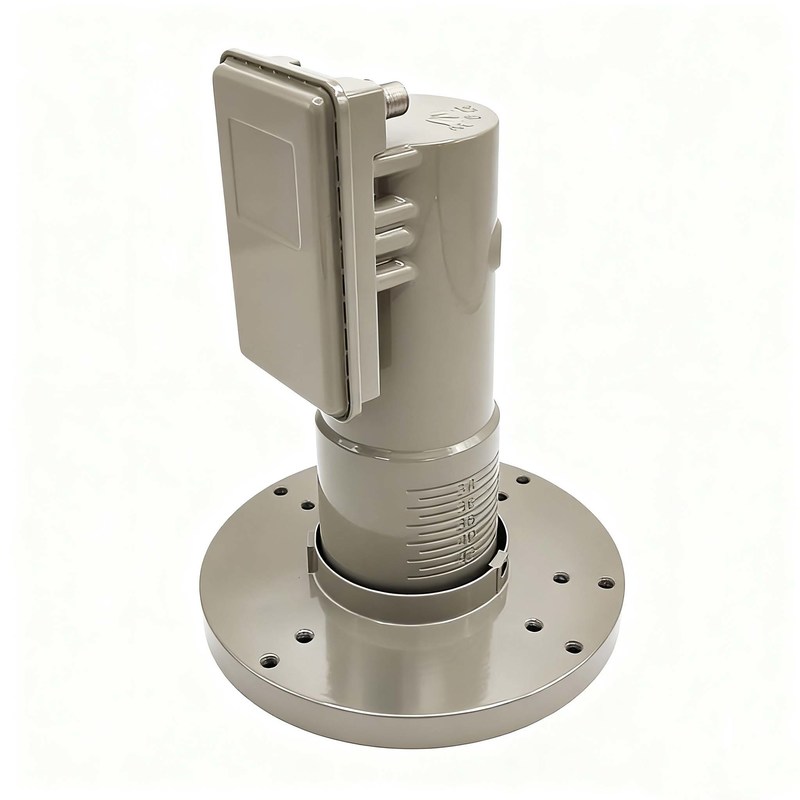

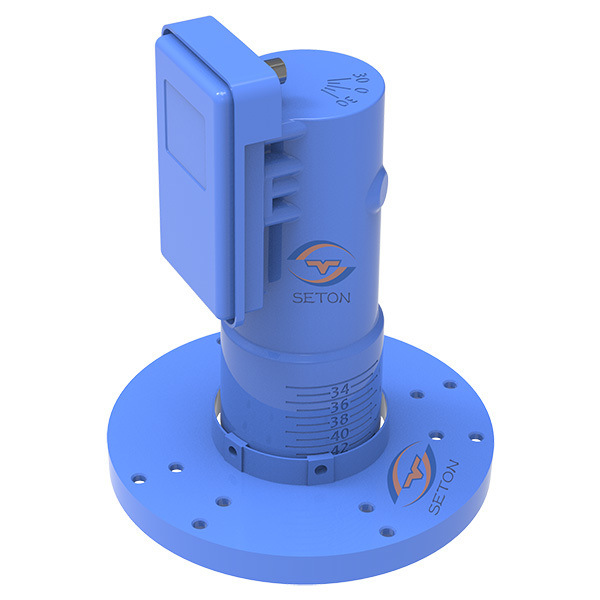

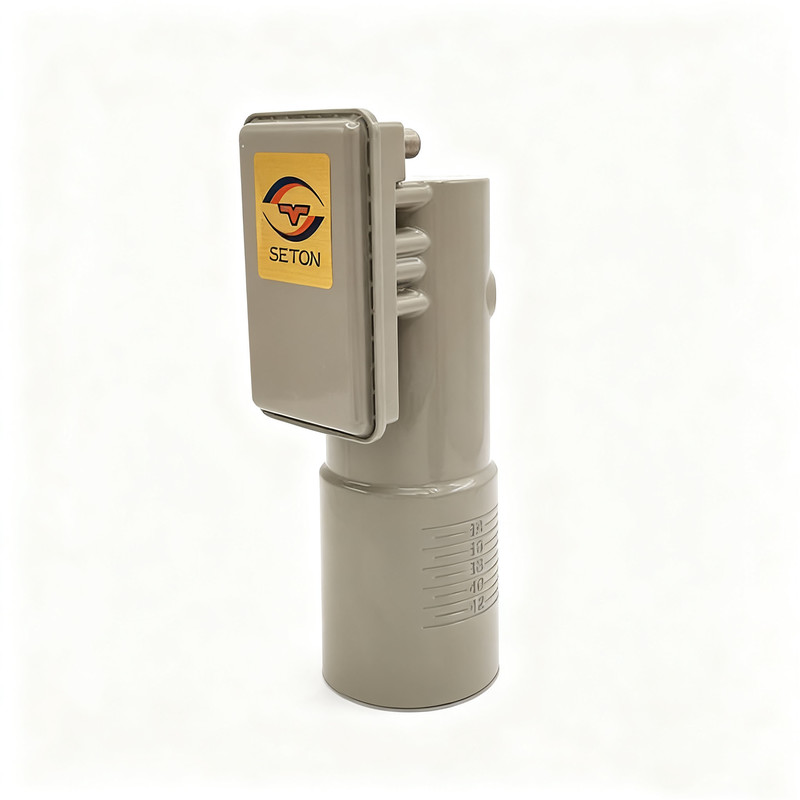

Name: One Cable C Band Pll LNB ANTI 5G Rejection 5G IMT @3.5GHz High Gain Low Noise LNB
Brand: Chenzhou Seton Technology Co., Ltd
SKU: ST-C21M One Cable Solution LNB
Availability: InStock

Home > Products > TVRO LNBF >

One Cable C Band Pll LNB ANTI 5G Rejection 5G IMT @3.5GHz High Gain Low Noise LNB

One Cable C Band Pll LNB

C Band Pll LNB ANTI 5G

C Band Pll LNB High Gain

Place of Origin:

CHINA

Brand Name:

SETON

Certification:

CE, ISO, RoHS

Model Number:

ST-C21M One Cable Solution LNB

Chat Now

Request A Quote

Product Details

Input Frequency Range:

3.7~4.2GHz/ Or 3.8~4.2GHz...etc

Output Frequency Range:

950~1450MHz & 1550~2050MHz...etc

LO Frequency:

5.15 & 5.75GHz

Noise Figure:

17°K (Typ.)/ 30°K (Max.)

Conversion Gain:

60dB (Typ.)

I/P Frequency Rejection-5G（3.3~3.6GHz):

40[min.]

5G Power Level (Guard Band=100MHz):

-35[max.]

Highlight:

One Cable C Band Pll LNB

C Band Pll LNB ANTI 5G

C Band Pll LNB High Gain

Payment & Shipping Terms

Minimum Order Quantity

1000pcs

Packaging Details

CARTON

Delivery Time

30-35 days

Payment Terms

T/T,Western Union

Supply Ability

15 million pieces

Universal Octo LNBF KU Band ST-K28H 10.7 - 12.75GHz Input Frequency

Chat Now

ST-K22Z KU BAND Universal LNBF Dual LO Frequency 9.75GHz 10.6GHz

Chat Now

ST-K21WD KU Band Single LNBF Universal 10.7 - 12.75GHz

Chat Now

Ku Band Universal Quad LNBF ST-K24HA 10.7 - 12.75GHz With 9.75 / 10.6GHz LO

Chat Now

86-0735-8888458

huang@setontech.cn

Chat Now

Product Description

One Cable Solution PLL LNB C-BAND ANTI-5G Rejection-5G IMT @3.5GHz High Gain Low Noise LNB

ST-C21M One Cable Solution LNB

Rejection-5G IMT @3.5GHz High Gain Low Noise C-BAND LNB

Frequency Specifications

LNB: 3.7~4.2 GHz (Customizable design according to different frequency)
5G IMT: 3.3~3.6 GHz
Guard Band: 100 MHz
LNB Input 5G Power level: -30dBm@3.3~3.6GHz

Performance Characteristics

Output gain should not have significant intermodulation when 3.3~3.6 GHz interference input LNB
Output gain should not be saturated when 3.3~3.6 GHz interference input LNB

Technical Specifications

Parameter	Specification
Input Frequency Range	3.7~4.2GHz/ or 3.8~4.2GHz...etc
Output Frequency Range	950 ~ 1450MHz & 1550~2050MHz/ or 950~1350MHz & 1550~1950MHz...etc
LO frequency	5.15 & 5.75GHz
Noise figure	17°K (Typ.)/ 30°K (Max.)
LO Temperature Drift(-30~+60℃)	±0.75MHz
LO phase noise @ 10 KHz	-85dBc/Hz
Conversion Gain	60dB (Typ.)
Gain Flatness	±3.0dB (Max.)
Gain Variation	±0.5dB/ 26MHz
I/P Rejection TI	≤3.6GHz@40dBc(Min.)/ ≤3.7GHz@40dBc(Min.)
Rejection	40dBc
O/P Rejection	50dBc(Min.)
Control Signals (V~Pro & H-Pro)	10.0V~20.0V
DC-Power	10~20V/160Vdc*mA (Max.)
Output Impedance	75Ω (F-Type)

Frequently Asked Questions

Q: What is an LNB?

A: An LNB - Low Noise Block (also called an LNC- Low Noise Converter), it is used for communications (broadcast) satellite reception. The LNB is usually affixed either in or on the satellite dish and its purpose is to collect and amplify the satellite signal received from the dish and then down convert the signal to lower more manageable IF frequency which can then be carried over standard coaxial cabling to the receiver. Divided into C-Band, Ku-Band, Ka-Band according to different frequency.

Q: What is a feedhorn?

A: The feedhorn is a part of the LNB and works like a directional horn. Its function is to capture the signals reflected from the dish and to shield the LNB from receiving extraneous radiation from other sources. These collected signals are then passed form the horn to the electronics within the LNB. Divided into Orthogonal feed, offset feed and elliptical feed.

Q: What is a Monoblock LNB?

A: This design consists of two independent LNBs in a single housing and allows a user the potential of receiving the signal from two different satellites which are at slightly different orbital opposition from a single dish installation. The switching between the satellites is achieved via the use of DiSEqC signals. Monoblock LNB's are available mostly for satellites with a fixed 2°/ 3°/4.3° or 6° spacing and the range covers Ku band Monoblock switch single, twin and quad outputs. For example where a 2°Monoblock LNB could be used is for the reception of 5°W and 7° W or with 3° distance for the reception of 13° E and 16° E.

Q: What is a one cable solution LNB?

A: LNB can connect multi-STB(set-top-box) by one RG6 cable, is a saving energy and multi-users receiving mode, sometimes also called stack LNB.

Q: What does Unicable mean?

A: Unicable is a new method for distributing satellite television. Several receivers (currently up to 32 in accordance with standard EN 50494 & EN 50607). Unicable 1: It means SCR LNB, only achieving static working model; Unicable 2: Both achieving two working models with static and dynamic, LNB can be designed to achieve Universal+Unicable input separately. For example: 1 output Universal+1 output Unicable/ 1 output Universal+ 3 output Unicable.
