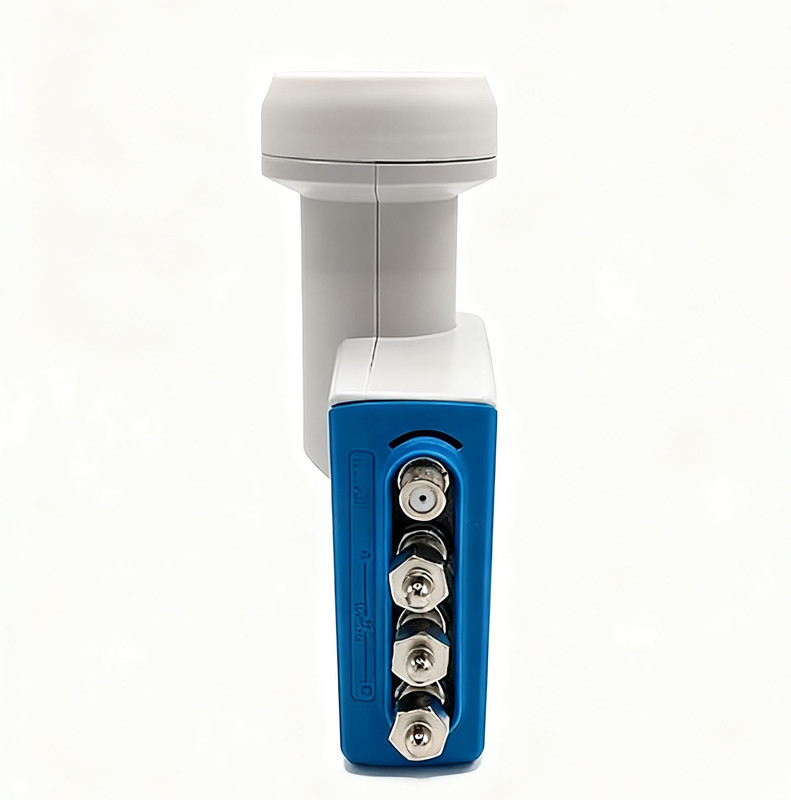

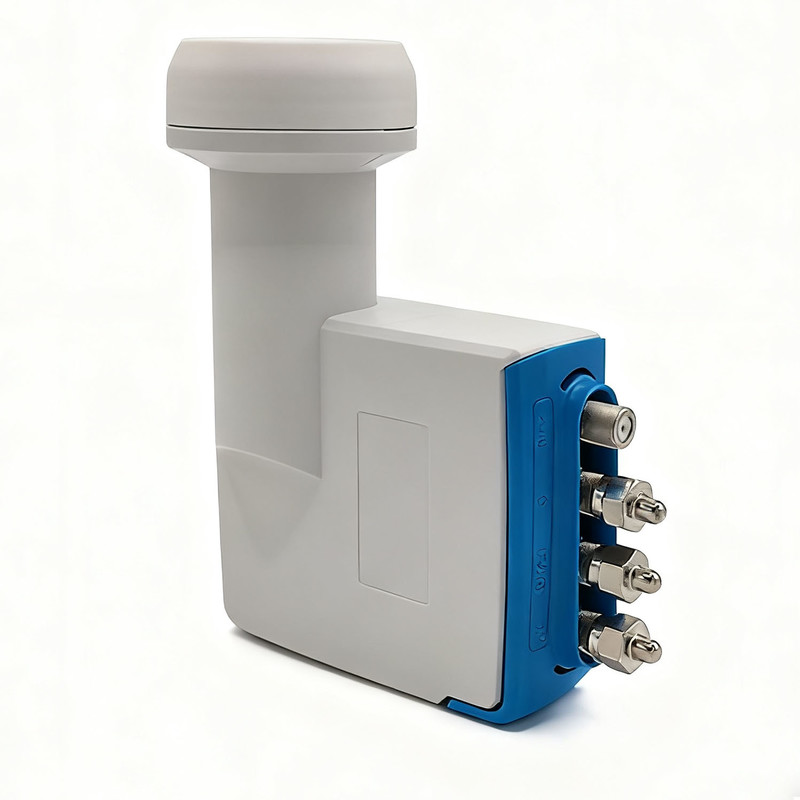

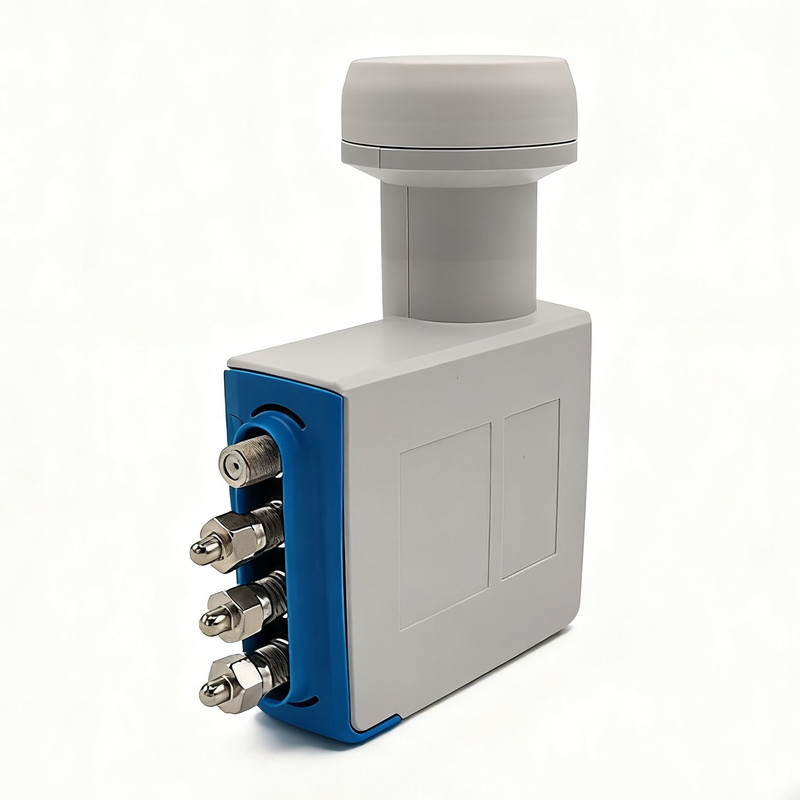

Name: 4 - 32 Band DCSS LNB One Cable Solution EN50494 EN50607
Brand: Chenzhou Seton Technology Co., Ltd
SKU: DCSS LNB
Availability: InStock

Home > Products > DCSS LNB >

4 - 32 Band DCSS LNB One Cable Solution EN50494 EN50607

32 Band DCSS LNB

4 Band DCSS LNB

lnb dcss EN50494

Place of Origin:

China

Brand Name:

SETON

Model Number:

DCSS LNB

Chat Now

Request A Quote

Product Details

Input Frequency Range:

10.7GHz ~ 12.75GHz

Output Frequency Range:

750MHz ~ 2350MHz

Noise Figure:

1.0dB(Max.)

LO Phase Noise @ 10 KHz:

-80dBc/Hz

Conversion Gain:

55dB~65dB/ 60dB (Typ.)

User Bands:

4~32bands

Highlight:

32 Band DCSS LNB

4 Band DCSS LNB

lnb dcss EN50494

Payment & Shipping Terms

Minimum Order Quantity

1000pcs

Packaging Details

CARTON

Delivery Time

30-35 days

Payment Terms

T/T,Western Union

Supply Ability

15 million pieces

RELATED PRODUCTS

86-0735-8888458

huang@setontech.cn

Chat Now

Product Description

DCSS LNB

Main Features

One Cable Solution
Support up to 32 User Bands
Support Dynamic/Static Mode
EN50494 & EN50607 Compliant
AGC/ALC Function

Technical Specifications

Input Frequency Range	10.7GHz ~ 12.75GHz
Output Frequency Range	750MHz ~ 2350MHz
Noise figure	1.0dB(Max.)
LO Initial Accuracy(25℃)	±0.5MHz
LO Temperature Drift	±0.75MHz
LO phase noise @ 10 KHz	-80dBc/Hz
Conversion Gain	55dB~65dB/ 60dB (Typ.)
Gain Variation	±0.5dB/26MHz
O/P 1dB Compression Point (P1 dB)	0.0dBm (Min.)
Image-Rejection	-40dBc (Min.)
Crosstalk Isolation	22dB (Min.)
O/P VSWR	2.5:1
Control Signals	DiSEqC 1.X/DiSEqC 2.X; EN50494/50607
DC-Power	18V/350Vdc*mA
Output Impedance	75Ω (F-Type)
Working Temperature	-30℃~+70℃
Waterproof	O-RING
User Bands	4~32bands

Frequently Asked Questions

Q: What is an LNB?

A: An LNB - Low Noise Block (also called an LNC- Low Noise Converter), it is used for communications (broadcast) satellite reception. The LNB is usually affixed either in or on the satellite dish and its purpose is to collect and amplify the satellite signal received from the dish and then down convert the signal to lower more manageable IF frequency which can then be carried over standard coaxial cabling to the receiver. Divided into C-Band, Ku-Band, Ka-Band according to different frequency.

Q: What is a feedhorn?

A: The feedhorn is a part of the LNB and works like a directional horn. Its function is to capture the signals reflected from the dish and to shield the LNB from receiving extraneous radiation from other sources. These collected signals are then passed form the horn to the electronics within the LNB. Divided into Orthogonal feed, offset feed and elliptical feed.

Q: What is a Monoblock LNB?

A: This design consists of two independent LNBs in a single housing and allows a user the potential of receiving the signal from two different satellites which are at slightly different orbital opposition from a single dish installation. The switching between the satellites is achieved via the use of DiSEqC signals. Monoblock LNB's are available mostly for satellites with a fixed 2°/ 3°/4.3° or 6° spacing and the range covers Ku band Monoblock switch single, twin and quad outputs. For example where a 2°Monoblock LNB could be used is for the reception of 5°W and 7° W or with 3° distance for the reception of 13° E and 16° E.

Q: What is a one cable solution LNB?

A: LNB can connect multi-STB(set-top-box) by one RG6 cable, is a saving energy and multi-users receiving mode, sometimes also called stack LNB.

Q: What does Unicable mean?

A: Unicable is a new method for distributing satellite television. Several receivers (currently up to 32 in accordance with standard EN 50494 & EN 50607). Unicable 1: It means SCR LNB, only achieving static working model; Unicable 2: Both achieving two working models with static and dynamic, LNB can be designed to achieve Universal+Unicable input separately. For example: 1 output Universal+1 output Unicable/ 1 output Universal+ 3 output Unicable.
