Name: Ku Band LNB ST-K22FA Vertical Twin LNB Universal 12.75GHz Dual Satellite LNB Low Noise PLL LNB High Gain LNBF
Brand: Chenzhou Seton Technology Co., Ltd
SKU: ST-K22FA
Availability: InStock

Home > Products > TVRO LNBF >

Ku Band LNB ST-K22FA Vertical Twin LNB Universal 12.75GHz Dual Satellite LNB Low Noise PLL LNB High Gain LNBF

12.75GHz Ku-Band LNBF

0.7dB Noise Figure Universal LNB

Vertical Horizontal Polarization Satellite LNB

Place of Origin:

CHINA

Brand Name:

SETON

Certification:

CE, ISO, ROHS, POP, REACH

Model Number:

ST-K22FA

Chat Now

Request A Quote

Product Details

Input Frequency Range (Low-Band):

10.7GHz ~ 11.7GHz

Input Frequency Range (High-Band):

11.7GHz ~ 12.75GHz

Output Frequency Range (Low-Band):

950MHz ~ 1950MHz

Output Frequency Range (High-Band):

1100MHz ~ 2150MHz

Low Band LO Frequency:

9.75GHz

High Band LO Frequency:

10.6GHz

Noise Figure:

0.7dB (Typ.)/ 1.0dB(Max.)

Conversion Gain:

55dB~65dB/ 60dB (Typ.)

Highlight:

12.75GHz Ku-Band LNBF

0.7dB Noise Figure Universal LNB

Vertical Horizontal Polarization Satellite LNB

Payment & Shipping Terms

Minimum Order Quantity

2000pcs

Packaging Details

CARTON

Delivery Time

30-35 days

Payment Terms

T/T,Western Union

Supply Ability

15 million pieces

Ku-Band Universal Twin LNBF with 10.7GHz ~ 12.75GHz Frequency Range, 0.7dB Noise Figure, and Vertical/Horizontal Polarization

Chat Now

Universal KU Band LNBF ST-K21WA Satellite Single LNB 10.7 - 12.75GHz

Chat Now

Ku Band Universal Quad LNBF ST-K24HA 10.7 - 12.75GHz With 9.75 / 10.6GHz LO

Chat Now

Video

Ku-Band Universal Single LNBF PLL ST-K21WN with 10.7GHz ~ 12.75GHz Range, 0.7dB Noise Figure, and Vertical/Horizontal Polarization

Chat Now

86-0735-8888458

huang@setontech.cn

Chat Now

Product Description

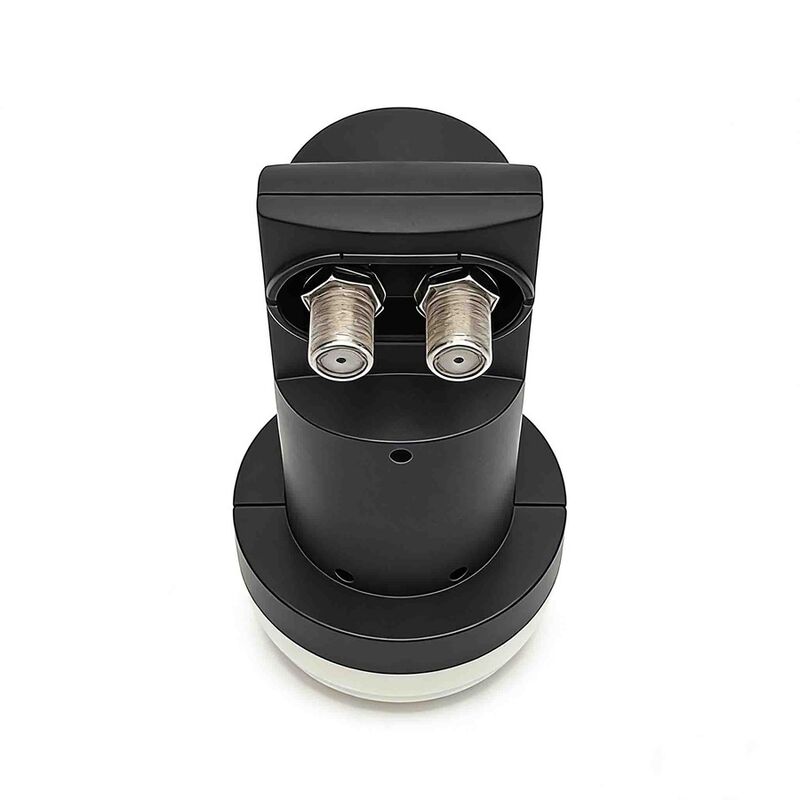

Ku-Band LNBF ST-K22FA - Universal High Gain Dual Satellite LNB

The Ku-Band Universal Twin LNBF ST-K22FA is a professional-grade low noise block downconverter designed for satellite communications and broadcast reception. This vertical twin LNB features universal compatibility with high gain performance and PLL technology for stable signal conversion.

Key Features

Universal Ku-Band frequency coverage
Dual satellite reception capability
Vertical and horizontal polarization
Low noise figure for superior signal quality
PLL technology for frequency stability
High gain conversion performance

Technical Specifications

Parameter	Specification	Unit
Low Band Input Frequency Range	10.7 ~ 11.7	GHz
Low Band Output Frequency Range	950 ~ 1950	MHz
Low Band LO Frequency	9.75	GHz
Noise Figure (Low Band)	0.7 [typ] 1.0 [max]	dB
High Band Input Frequency Range	11.7 ~ 12.75	GHz
High Band Output Frequency Range	1100 ~ 2150	MHz
High Band LO Frequency	10.6	GHz
Noise Figure (High Band)	0.7 [typ] 1.0 [max]	dB
LO Initial Accuracy	± 0.75	MHz
LO Temperature Drift (-30 ~ +60℃)	± 1	MHz
Conversion Gain	55 [min]	dB
Gain Flatness	± 3.5	dB
Output 1 dB Compression Point	0.0 [min]	dBm
Crosstalk Isolation	25 [typ] 20 [min]	dB
DC Power	11 ~ 20* 150(max)	Vdc*mA
Working Temperature	-30 ~ +60	℃
Output Impedance	75	Ω (F-Type)

Frequently Asked Questions

What is an LNB?

An LNB (Low Noise Block) or LNC (Low Noise Converter) is used for communications and broadcast satellite reception. Mounted on the satellite dish, it collects and amplifies the satellite signal, then downconverts it to a lower IF frequency for transmission over coaxial cabling to the receiver. Available in C-Band, Ku-Band, and Ka-Band frequencies.

What is a feedhorn?

The feedhorn is a directional component of the LNB that captures signals reflected from the dish while shielding against extraneous radiation. It directs collected signals to the LNB's internal electronics. Available in orthogonal, offset, and elliptical feed types.

What is a Monoblock LNB?

A Monoblock LNB contains two independent LNBs in a single housing, enabling reception from two different satellites with slight orbital separation using a single dish. Switching between satellites is achieved via DiSEqC signals. Commonly available for satellites with 2°/3°/4.3° or 6° spacing in Ku band with single, twin, and quad outputs.

What is a one cable solution LNB?

This LNB type connects multiple set-top boxes via a single RG6 cable, providing an energy-efficient multi-user reception solution, sometimes referred to as a stack LNB.

What does Unicable mean?

Unicable is a modern satellite television distribution method supporting multiple receivers (up to 32 according to EN 50494 & EN 50607 standards). Unicable 1 (SCR LNB) operates in static mode only, while Unicable 2 supports both static and dynamic modes, allowing designs with Universal and Unicable inputs combined.
