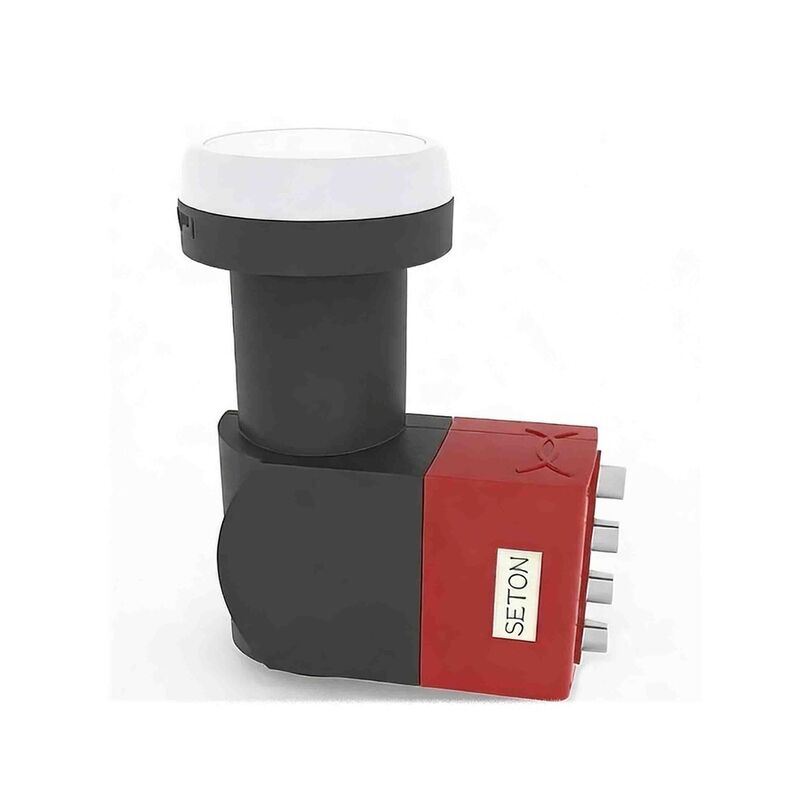

Name: Ku Band Universal Quad LNBF 4-output Low-Noise Block Downconverter with 10.7GHz ~ 12.75GHz Frequency and 0.7dB Noise Figure
Brand: Chenzhou Seton Technology Co., Ltd
SKU: ST-K24HB
Availability: InStock

Home > Products > TVRO LNBF >

Ku Band Universal Quad LNBF 4-output Low-Noise Block Downconverter with 10.7GHz ~ 12.75GHz Frequency and 0.7dB Noise Figure

4-output Quad LNBF

10.7GHz ~ 12.75GHz Ku Band Universal LNBF

0.7dB Noise Figure Low-Noise Block Downconverter

Place of Origin:

CHINA

Brand Name:

SETON

Certification:

CE, ISO, RoHS

Model Number:

ST-K24HB

Chat Now

Request A Quote

Product Details

Input Frequency Range (Low-Band):

10.7GHz ~ 11.7GHz

Input Frequency Range (High-Band):

11.7GHz ~ 12.75GHz

Output Frequency Range (Low-Band):

950MHz ~ 1950MHz

Output Frequency Range (High-Band):

1100MHz ~ 2150MHz

Low Band LO Frequency:

9.75GHz

High Band LO Frequency:

10.6GHz

Noise Figure:

0.7dB (Typ.)/ 1.0dB(Max.)

Conversion Gain:

55dB~65dB/ 60dB (Typ.)

Highlight:

4-output Quad LNBF

10.7GHz ~ 12.75GHz Ku Band Universal LNBF

0.7dB Noise Figure Low-Noise Block Downconverter

Payment & Shipping Terms

Minimum Order Quantity

500pcs

Packaging Details

CARTON

Delivery Time

30-35 days

Payment Terms

T/T,Western Union

Supply Ability

15 million pieces

KU Band Universal LNBF Single LNB Satellite Dish with 10.7 - 12.75GHz Frequency Range and 0.7dB Noise Figure

Chat Now

One Cable C Band Pll LNB ANTI 5G Rejection 5G IMT @3.5GHz High Gain Low Noise LNB

Chat Now

ST-K22Z KU BAND Universal LNBF Dual LO Frequency 9.75GHz 10.6GHz

Chat Now

ST-K21WD KU Band Single LNBF Universal 10.7 - 12.75GHz

Chat Now

86-0735-8888458

huang@setontech.cn

Chat Now

Product Description

TVRO Ku Band Universal LNBF Quad Signal Transmission Equipment

Product Overview

The Ku-Band Universal Quad LNBF ST-K24HB is a professional-grade 4-output low-noise block downconverter designed for satellite signal transmission.

Key Features

Operates in the Ku frequency band (10.7-12.75 GHz)
Universal switching between low/high bands (9.75/10.6 GHz LO)
4 independent outputs for simultaneous receiver operation
Dual Polarization: Vertical and Horizontal

Technical Specifications

Parameter	Specification
Input Frequency Range (Low-Band)	10.7GHz ~ 11.7GHz
Output Frequency Range (Low-Band)	950MHz ~ 1950MHz
Low band LO frequency	9.75GHz
Input Frequency Range (High-Band)	11.7GHz ~ 12.75GHz
Output Frequency Range (High-Band)	1100MHz ~ 2150MHz
High band LO frequency	10.6GHz
Noise figure	0.7dB (Typ.)/ 1.0dB(Max.)
LO Initial Accuracy	0.5MHz
LO Temperature Drift (-30~+60℃)	0.75MHz
LO phase noise @ 1 KHz	-75dBc/Hz
LO phase noise @ 10 KHz	-80dBc/Hz
LO phase noise @ 100 KHz	-90dBc/Hz
Conversion Gain	55dB~65dB/ 60dB (Typ.)
Gain Flatness	3.0dB (Max.)
Gain Variation	0.5dB/ 26MHz
O/P 1dB Compression Point (P1 dB)	0.0dBm (Min.)
Image-Rejection	-40dBc (Min.)
Crosstalk Isolation	20dB (Min.)
O/P VSWR	2.5:1
Control Signals Ca V	10.0V~14.0V
Control Signals Cb H	16.0V~20.0V
Control Signals Cc	22±4KHz
DC-Power	10~20V/160Vdc*mA (Max.)
Output Impedance	75Ω (F-Type)
Working Temperature	-30℃~+60℃

System Advantages

Cost-Effective Scalability: More economical than purchasing multiple single LNBFs
Simplicity: Plug-and-play installation with minimal setup
Reliability: Fewer connections than switch-based systems for enhanced durability
Full Independence: All 4 receivers operate simultaneously without signal interference
Future-Proofing: Built-in extra capacity for adding additional receivers

Ideal Application

The Ku Band Universal QUAD LNBF represents the optimal solution for medium-sized satellite installations, providing independent satellite TV access for up to 4 receivers from a single fixed dish. This eliminates the need for external switches while maintaining full functionality for each connected device. Its widespread adoption stems from the perfect balance of capability, cost-effectiveness, and simplicity for typical residential satellite installations.
