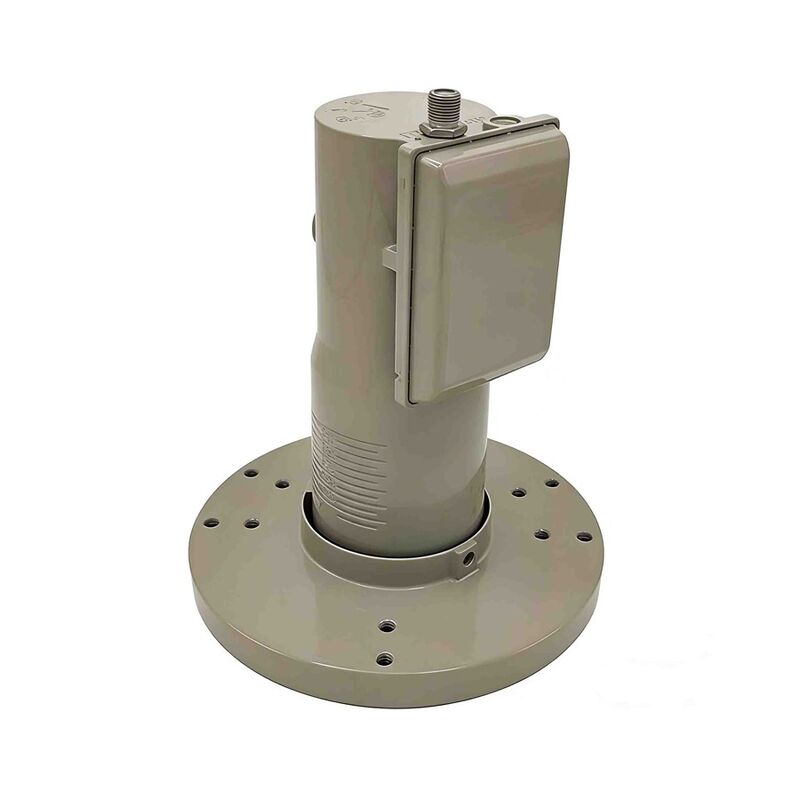

Name: Professional C-Band FSS LNB Provider - ST-C11A Horizontal Universal Single Output LNBF
Brand: Chenzhou Seton Technology Co., Ltd
SKU: ST-C11A
Availability: InStock

Home > Products > TVRO LNBF >

Professional C-Band FSS LNB Provider - ST-C11A Horizontal Universal Single Output LNBF

3.7-4.2GHz Input Frequency C Band LNB

5.15GHz L.O.Frequency Satellite LNB

950-1450MHz Output Frequency Universal LNB

Place of Origin:

CHINA

Brand Name:

SETON

Certification:

CE, ISO, RoHS

Model Number:

ST-C11A

Chat Now

Request A Quote

Product Details

Input Frequency:

3.7-4.2GHz

L.O.Frequency:

5.15GHz

Output Frequency:

950-1450MHz

Conversion Gain:

65dB(Typ.)

Noise Figure:

12°K(Max.)

Highlight:

3.7-4.2GHz Input Frequency C Band LNB

5.15GHz L.O.Frequency Satellite LNB

950-1450MHz Output Frequency Universal LNB

Payment & Shipping Terms

Minimum Order Quantity

1000pcs

Packaging Details

CARTON

Delivery Time

30-35 days

Payment Terms

T/T,Western Union

Supply Ability

15 million pieces

Universal Twin LNBF for Ku-Band (10.7-12.75 GHz) - 0.7dB Noise Figure, Vertical & Horizontal Polarization

Chat Now

ST-K22FA PLL Twin LNB - Vertical, Universal Ku Band up to 12.75GHz, Dual Output, High Gain, Low Noise

Chat Now

ST-K21WB High Gain Low Noise KU Band LNB - Horizontal, Universal Single Output for VSAT, China Supplier

Chat Now

For BBS-119.1° Satellite Receivers: C-Band LNB with 4.5-4.8GHz, 0.7dB NF, 58dB Gain

Chat Now

86-0735-8888458

huang@setontech.cn

Chat Now

Product Description

TVRO LNBF C Band Satellite LNB Single Universal LNB

TVRO LNBF Universal C Band Single LNB ST-C11A - Professional satellite signal reception component for C-Band FSS applications.

Key Features

Frequency Range: 3.7~4.2 GHz
Dual Polarization: Vertical and Horizontal / Left-hand circular and Right-hand circular polarization
Universal C-Band compatibility

Technical Specifications

Item	Specification
Input Frequency	3.7-4.2GHz
Local Oscillator	5.15GHz
Output Frequency	950-1450MHz
Conversion Gain	65dB (Typical)
Noise Figure	12°K
LO Frequency Accuracy	±0.5MHz
Phase Noise	-80dBc/Hz@10kHz
Output Impedance	75Ω F-Type
DC Power	11-20V/110mA (Max.)
Output VSWR	2.0:1
Output 1 dB Compression Point	0.0dBm [Min.]
Working Temperature	-30°C to +60°C

Frequently Asked Questions

What is an LNB?

An LNB (Low Noise Block) or LNC (Low Noise Converter) is used for communications satellite reception. Mounted on the satellite dish, it collects and amplifies satellite signals, then down-converts them to manageable IF frequencies for transmission over coaxial cabling to the receiver. Available in C-Band, Ku-Band, and Ka-Band frequencies.

What is a feedhorn?

The feedhorn is a directional component of the LNB that captures signals reflected from the dish while shielding against extraneous radiation. It passes collected signals to the LNB electronics. Available in orthogonal feed, offset feed, and elliptical feed configurations.

What is a Monoblock LNB?

A Monoblock LNB contains two independent LNBs in a single housing, enabling reception from two different satellites at slightly different orbital positions using a single dish. Switching between satellites is achieved via DiSEqC signals. Typically available for satellites with 2°/3°/4.3°/6° spacing in Ku band with single, twin, and quad outputs.

What is a one cable solution LNB?

This LNB type connects multiple set-top boxes (STBs) using a single RG6 cable, providing an energy-efficient multi-user receiving solution, sometimes referred to as stack LNB.

What does Unicable mean?

Unicable is a modern satellite television distribution method supporting multiple receivers (up to 32 according to EN 50494 & EN 50607 standards).
Unicable 1: SCR LNB achieving static working mode only.
Unicable 2: Supports both static and dynamic working modes, with Universal+Unicable input configurations (e.g., 1 Universal + 1 Unicable output, or 1 Universal + 3 Unicable outputs).
