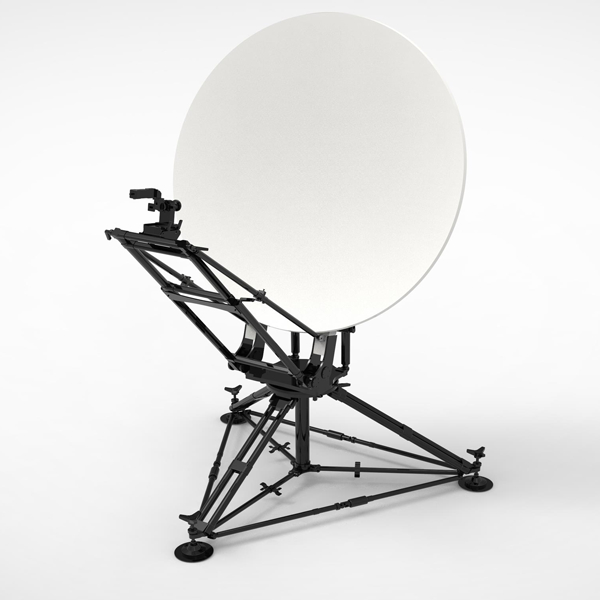

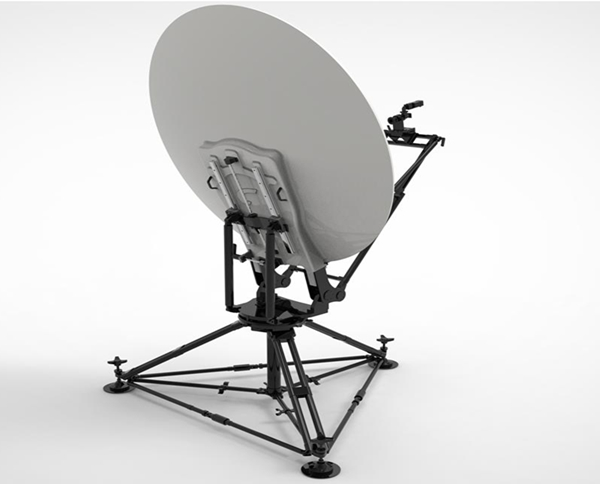

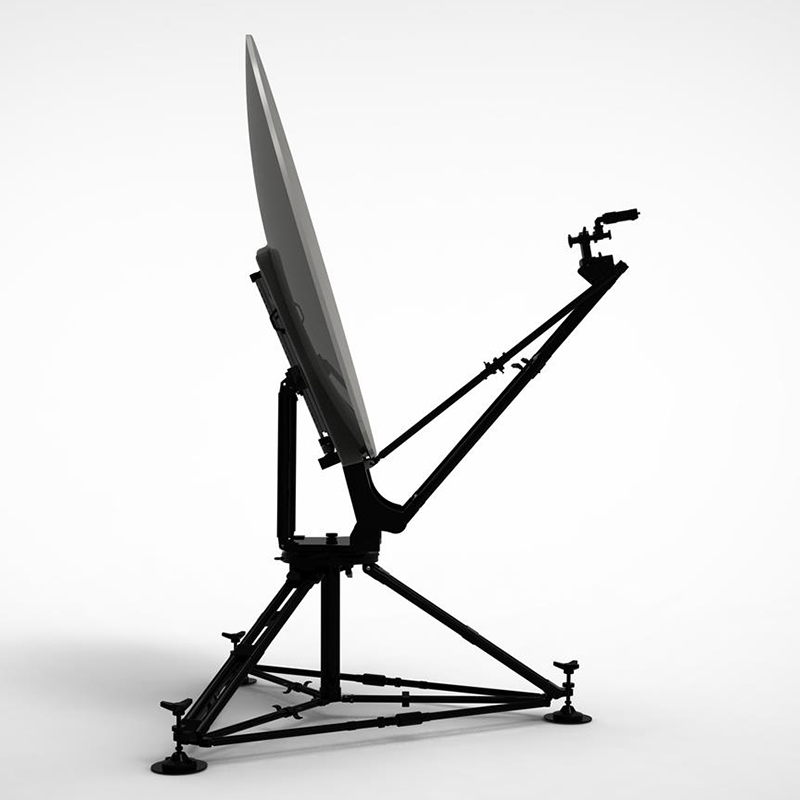

Name: 1.8m VSAT Antenna Carbon Fiber Manual Offset Flyaway Antenna 98KG Tripod type
Brand: Chenzhou Seton Technology Co., Ltd
SKU: Flyaway Antenna
Availability: InStock

Home > Products > Rx Antenna >

1.8m VSAT Antenna Carbon Fiber Manual Offset Flyaway Antenna 98KG Tripod type

1.8m VSAT Antenna

1.8m Tripod Antenna

Carbon Fiber Flyaway Antenna

Place of Origin:

China

Brand Name:

SETON

Model Number:

Flyaway Antenna

Chat Now

Request A Quote

Product Details

Antenna Diameter:

1.8m

Antenna Type:

Single Offset

Reflector Construction:

Carbon Fiber

Surface Accuracy (R.M.S):

0.3mm

Band Support:

Compatible With C, X, Ku, And Ka Frequency Bands

Weight:

98KG

Highlight:

1.8m VSAT Antenna

1.8m Tripod Antenna

Carbon Fiber Flyaway Antenna

Payment & Shipping Terms

Packaging Details

CARTON/ PALLET/ CASE

Delivery Time

30-35 days

Payment Terms

T/T,Western Union

1.8m VSAT Antenna Carbon Fiber Manual Offset Flyaway Antenna 98KG Tripod type

Chat Now

60cm KU Band Rx Antenna 10.7 - 12.75GHz For Satellite Communication

Chat Now

Galvanized Steel 75cm Rx Antenna Ku Band ST-Ku75 With High Gain

Chat Now

86-0735-8888458

huang@setontech.cn

Chat Now

Product Description

1.8M Carbon Fiber Manual Offset Flyaway Antenna (Tripod-type)

Components

Single Offset Antenna
Azimuth & elevation turnable
Portable case
Compass & leveling

Applications

Emergency response for public events and disaster relief operations
Critical communications for public security, military, government, and infrastructure sectors
Remote areas with limited or no network coverage
Field operations including exploration, law enforcement, and news media

Highlight Features

Carbon fiber reflector - lightweight (98kg), high precision (R.M.S≤0.3mm), and high efficiency
Multi-band support - compatible with C, X, Ku, and Ka frequency bands
Quick deployment - tool-free assembly requiring minimal training
Ka-band optimized - compact, robust design for reliable satellite communications
Field-ready performance - delivers high-quality broadband in any environment

Electrical Specification

Operation Frequency(GHz)	KU band		C band
Type	CFM 180
Operation Frequency(GHz)	Receive	Transmit	Receive	Transmit
	10.7~12.75	13.75~14.5	3.625~4.2	5.85~6.425
Typical Gain(dBi)	44.8@12GHz	46.2@14GHz	35.7@4GHz	39.2@6GHz
Polarization	Linear		Linear
XPD on Axis(dB)	33dB		33dB
Power Handing Capability	/	200W	/	400W
Feed Interface	WR75	WR75	CPR229	CPR137
Tx/Rx Isolation	80dB
Radiation pattern	ITU-R.S580-5

Mechanical Specification

Antenna diameter	1.8m
Antenna type	Single Offset
Reflector construction	Carbon Fiber
Pointing mode	Manual
Azimuth travel	360°
Elevation travel	0 to 90°
POL travel	±95°
Mount type	Elevation over azimuth
Surface Accuracy (R.M.S)	0.3mm
Weight	98KG
Operation temperature	-40 to +60℃
Wind loading	Operating: 40Km/h gusting to 72Km/h Survival: 96Km/h with ties down
Relative Humidity	0%~100%
