Model: CFM 180
Lightweight Carbon Fiber Design | Ideal for Emergency Response and Critical Communications

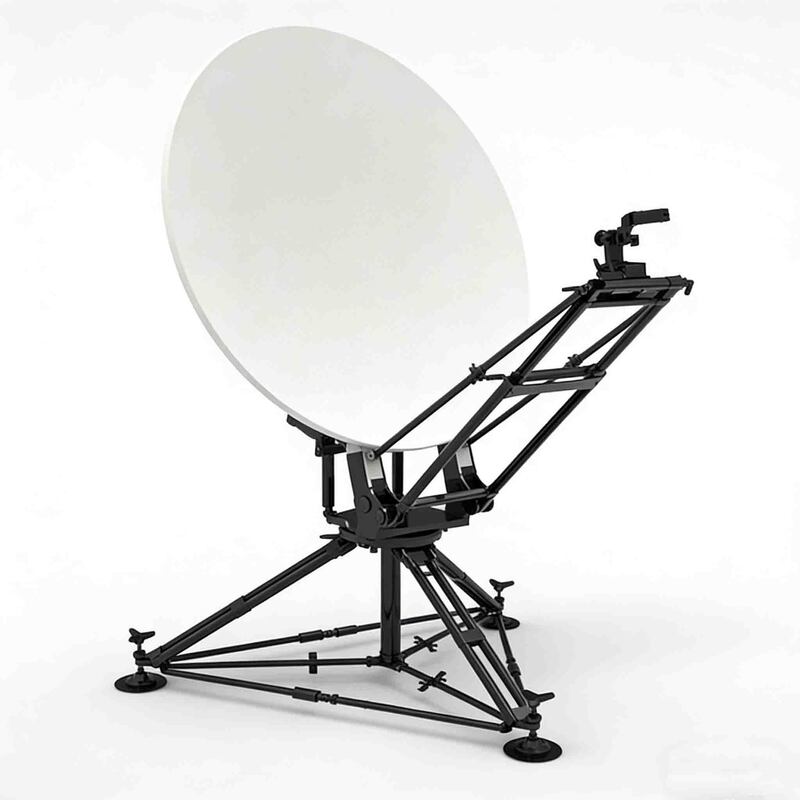

The 1.8m Carbon Fiber Manual Offset Flyaway Antenna (CFM 180) is a high-performance portable antenna system designed for emergency communications, field operations, and critical communication missions. Featuring a carbon fiber reflector, it achieves lightweight construction (total weight only 98kg) while maintaining high precision (R.M.S ≤ 0.3mm), significantly improving transport efficiency and deployment speed.
Key Advantages:
Lightweight Design – Carbon fiber reflector, total weight only 98kg
High Precision – Surface accuracy R.M.S ≤ 0.3mm for excellent gain performance
Multi-band Support – Compatible with C, X, Ku, and Ka bands – one antenna for multiple applications
Rapid Deployment – Tool-free assembly with minimal training required
Tripod Mount – Stable and reliable, adapts to various complex terrains
Portable Case Packaging – Easy transport and storage
98kg lightweight carbon fiber design · R.M.S ≤ 0.3mm high precision · C/Ku multi-band compatibility · Rapid deployment for emergency scenarios
| Carbon Fiber Reflector |
High Precision Manufacturing |
|---|---|
| Made of carbon fiber composite Total weight only 98kg – lightweight design High strength, corrosion resistance, thermal stability Significantly reduces transport and handling difficulty |
Surface accuracy R.M.S ≤ 0.3mm Excellent RF performance High gain output Ensures signal transmission quality |
| Multi-band Support |
Rapid Deployment |
|---|---|
| Supports C / X / Ku / Ka multiple frequency bands One antenna meets various communication needs Covers broadcast, broadband, private network, and more Modular feed design for quick band switching |
Tool-free assembly – hand-operated Minimal training required Single person can complete deployment Tripod structure adapts to complex terrains |
| Manual Precision Pointing |
All-Weather Reliability |
|---|---|
| Azimuth: 360° continuous adjustment Elevation: 0°~90° adjustment range Polarization: ±95° adjustment range Includes compass and level for rapid pointing |
Operating Temperature: -40℃ ~ +60℃ Operating Wind: 72km/h gusts Survival Wind: 96km/h (with ties down) Relative Humidity: 0%~100% full range |
| Portable Case Packaging |
Multi-band Performance |
|---|---|
| Dedicated portable transport cases Protects antenna components Easy transport and storage Fits vehicle trunks and air freight |
Ku-band: Rx 44.8dBi@12GHz / Tx 46.2dBi@14GHz C-band: Rx 35.7dBi@4GHz / Tx 39.2dBi@6GHz Cross-polarization discrimination: ≥33dB Tx/Rx Isolation: ≥80dB |
| Type | CFM 180 | |||
|---|---|---|---|---|
| Operation Frequency (GHz) | KU band | C band | ||
| Receive | Transmit | Receive | Transmit | |
| 10.7~12.75 | 13.75~14.5 | 3.625~4.2 | 5.85~6.425 | |
| Typical Gain (dBi) | 44.8@12GHz | 46.2@14GHz | 35.7@4GHz | 39.2@6GHz |
| Polarization | Linear | Linear | ||
| XPD on Axis (dB) | 33dB | 33dB | ||
| Power Handing Capability | / | 200W | / | 400W |
| Feed Interface | WR75 | CPR229 / CPR137 | ||
| Tx/Rx Isolation | 80dB | |||
| Radiation pattern | ITU-R.S580-5 | |||
| Antenna diameter | 1.8m |
|---|---|
| Antenna type | Single Offset |
| Reflector construction | Carbon Fiber |
| Pointing mode | Manual |
| Azimuth travel | 360° |
| Elevation travel | 0 to 90° |
| POL travel | ±95° |
| Mount type | Elevation over azimuth |
| Surface Accuracy (R.M.S) | 0.3mm |
| Weight | 98KG |
| Operation temperature | -40 to +60℃ |
| Wind loading | Operating: 40Km/h gusting to 72Km/h Survival: 96Km/h with ties down |
| Relative Humidity | 0%~100% |
| Challenge | How This Antenna Solves It |
|---|---|
| Traditional antennas are heavy – transport and handling difficulties |
Carbon fiber reflector, total weight only 98kg – two-person lift, compatible with various transport methods. |
| Need to establish communication links quickly in emergencies |
Tool-free assembly – rapid deployment with minimal training. Saves critical time for emergency response. |
| Different missions require different frequency bands – one antenna can't cover all |
Supports C/X/Ku/Ka multi-band – modular feed design for quick switching. One antenna for multiple applications. |
| Remote areas with complex terrain – traditional antennas difficult to install |
Tripod mount – adapts to mountains, deserts, snow, and other complex terrains. Stable and reliable. |
| Weak signals in remote areas – need high gain antenna |
Carbon fiber high-precision reflector (R.M.S ≤ 0.3mm) – Ku-band receive gain up to 44.8dBi. Ensures weak signal communication. |
| Harsh outdoor weather affects equipment reliability |
-40℃~+60℃ wide temperature operation, 72km/h wind resistance, weather-sealed design – all-weather reliable operation. |
Carbon Fiber Lightweight – Total weight only 98kg. Carbon fiber reflector for portability and efficiency.
High Precision Manufacturing – R.M.S ≤ 0.3mm surface accuracy for excellent RF performance.
Multi-band Support – Supports C/X/Ku/Ka frequency bands – one antenna for multiple uses.
Rapid Deployment – Tool-free assembly with minimal training required.
Precision Pointing – 360° azimuth, 0~90° elevation, ±95° polarization. Includes compass and level.
All-Weather Reliability – -40℃~+60℃ operating temperature, 72km/h wind resistance.
Portable Transport – Dedicated portable cases for easy transport and storage.
| Application | Description |
|---|---|
| Emergency Response & Disaster Relief |
Rapidly establish emergency communication links after earthquakes, floods, typhoons, and other disasters |
| Public Safety & Government Critical Communications |
On-site command communications for public safety, government, and infrastructure sectors |
| Remote Area Communication Coverage |
Temporary communication in mountains, deserts, oceans, and other areas with limited or no network coverage |
| Field Operations & News Broadcasting |
Satellite transmission for geological exploration, news media, and events |
| Critical Infrastructure Communications |
Backup or emergency communication links for utilities, oil & gas, and power sectors |
| Step | Description |
|---|---|
| 1. Unpacking | Open portable cases and remove antenna components |
| 2. Assembly | Tool-free assembly of tripod and reflector – no additional tools required |
| 3. Feed Installation | Install corresponding feed based on operating band (C/Ku/Ka) |
| 4. Pointing | Use compass and level for initial pointing. Fine-tune azimuth, elevation, and polarization for accurate satellite acquisition |
Deployment Time: Skilled operators can complete assembly and pointing within minutes
Q: What is the total weight of this antenna?
A: Total weight is only 98kg, including reflector, tripod, feed, and portable cases. The carbon fiber reflector is key to the lightweight design – reducing weight by over 50% compared to traditional fiberglass or metal antennas.
Q: What are the advantages of a carbon fiber reflector compared to traditional materials?
A: Carbon fiber offers low density, high strength, low coefficient of thermal expansion, and corrosion resistance. It significantly reduces weight while maintaining reflector precision, and maintains shape stability across temperature variations – ensuring consistent RF performance.
Q: What does R.M.S ≤ 0.3mm surface accuracy mean in practice?
A: This represents very high manufacturing precision. Surface accuracy directly affects antenna gain and efficiency. 0.3mm precision ensures excellent performance at both Ku and Ka bands, approaching theoretical gain.
Q: Which communication frequency bands are supported?
A: Supports C, X, Ku, and Ka – four mainstream satellite communication bands. Quick switching between bands is achieved by changing feed components – one antenna meets multiple mission requirements.
Q: How long does deployment take?
A: Skilled operators can complete the entire process from unpacking to satellite pointing in just minutes. Tool-free design and intuitive adjustment mechanisms significantly reduce operational difficulty.
Q: Is the tripod mount stable?
A: Professionally engineered and rigorously tested. The tripod structure is stable and reliable under 40km/h operating wind conditions, and survives safely at 96km/h with ties down. Adapts to various complex terrains.
Q: What are the dimensions of the portable cases? Are they suitable for air freight?
A: The dedicated portable transport cases use standard dimensions, fitting most vehicle trunks and air freight requirements. Please contact sales representatives for specific dimensions.
Q: Is professional expertise required for operation?
A: No. The product is designed with ease of use in mind, including a compass and level. Simple training enables independent completion of assembly and pointing operations.
