Place of Origin:
China
Brand Name:
SETON
Model Number:
ST-Ku60

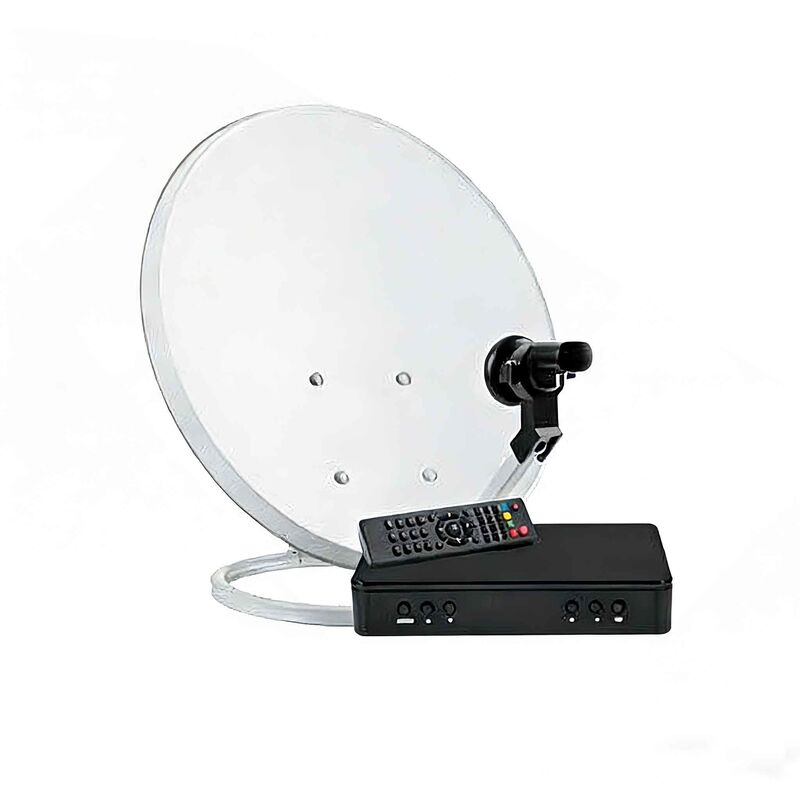

The 60cm Ku-Band Offset Rx Antenna (ST-Ku60) is a high-performance satellite reception antenna designed specifically for space-constrained environments. Its compact and lightweight structure makes it an ideal choice for balconies, small rooftops, RVs, and similar installation scenarios. Rigorously tested for corrosion resistance, environmental durability, and aging, it ensures long-term stable operation in various harsh conditions.
Key Advantages:
Compact & Lightweight – 60cm diameter, ideal for balconies, small rooftops, and other space-constrained locations
User-Friendly Installation – Optimized structural design for rapid field assembly and precise orbital alignment
Superior Signal Integrity – High-precision reflector minimizes signal loss with gain ≥38.52dBi
Exceptional Durability – Professional anti-corrosion treatment, passing Neutral Salt Spray Testing and Damp Heat Testing
Environmental Adaptability – -50℃~+70℃ operating range, core components pass High/Low Temperature and Accelerated Aging Testing
Structural Resilience – Engineered to withstand wind forces up to Scale 12 (dish direction fixed)
Aesthetic Integration – Customizable with client-specific logos and colors
Global Logistics Ready – Packaging suitable for air, ocean, and land transportation
60cm compact design – easy balcony/rooftop installation. High-precision reflector for excellent signal reception. All-weather durability with Scale 12 wind resistance.
| Compact & Lightweight |
User-Friendly Installation |
|---|---|
| 60cm diameter, lightweight design Ideal for balconies, small rooftops, and space-constrained locations Suitable for RVs, boats, and mobile applications Minimal installation space required |
Optimized structural design – rapid field assembly No complex tools – simple operation Precision alignment adjustments – low installation barrier L-wall/ground multi-purpose mounting |
| Superior Signal Integrity |
Exceptional Durability |
|---|---|
| High-precision reflector surface Gain: ≥38.52dBi @ 12.75GHz Minimizes signal loss for clear picture quality Compatible with standard Ku-band LNBFs |
Professional anti-corrosion coating Passed Neutral Salt Spray and Damp Heat Testing Core components passed High/Low Temperature and Accelerated Aging Testing Dacromet fasteners – salt spray test ≥24h |
| Structural Resilience |
Environmental Adaptability |
|---|---|
| Scale 8 wind – normal operation, stable signal Scale 10 wind – slight decrease in precision Scale 12 wind – dish remains intact when pointed skyward Engineered wind resistance |
Operating Temperature: -50℃ ~ +70℃ Operating Humidity: 5% ~ 95% Adapts to extreme cold, heat, and humidity Reliable operation year-round |
| Aesthetic Integration |
Global Logistics Ready |
|---|---|
| Default light gray – clean and modern Supports custom colors and client logos Matches corporate brand identity Ideal for operator bulk procurement |
Packaging suitable for air, ocean, and land transport Professional protection to minimize transit damage Global logistics experience for fast delivery |
| Specification | Details |
|---|---|
| Antenna Type | KU 60cm OFFSET Antenna |
| Antenna Color | Light gray |
| Frequency Range | 10.7~12.75 GHz |
| Gain | ≥38.52dBi |
| F/D | a=600mm, b=658mm |
| VSWR Output | 0.6±0.02 |
| Focal Length | f=492 |
| Reflector Thickness | 0.5mm (Before powdering) |
| LNBF Inner Size | Φ40±1 |
| Mast Pole Outer Diameter | Φ42mm |
| Mast Pole Thickness | 1.4mm |
| Elevation Angle | 5~85° |
| Working Temperature | -50°~70℃ |
| Working Humidity | 5~95% |
| Azimuth | 0~360° |
| Scale Indication | 30~90° |
| Installation Method | L wall ground multi-purpose type |
| Wind Resistance |
Works properly under 8 level wind. Precision decreases under 10 level wind. Dish remains intact at grade 12 wind when pointed skyward. |
| Fastener Surface Treatment | Dacromet |
| Fastener Salt Spray Test | ≥24h |
| Materials | Galvanized steel |
| Feedhorn Supporter Materials | 20×20×1 rectangular steel tube |
| Challenge | How This Antenna Solves It |
|---|---|
| Limited living space – no rooftop or yard for antenna installation |
60cm compact design – installs on balconies, window sills, or exterior walls without occupying extra space. |
| Traditional antennas require professional installation |
Optimized structural design – rapid assembly with precise scale indications. Regular users can complete pointing with basic instructions. |
| Weak signals in remote areas – small antennas lack sufficient gain |
High-precision reflector with gain ≥38.52dBi – big gain from small aperture. Excellent weak signal reception. |
| Coastal areas with high salt spray – antennas rust easily |
Professional anti-corrosion treatment – passed Neutral Salt Spray and Damp Heat Testing. Dacromet fasteners with ≥24h salt spray test. |
| Harsh winter conditions in northern regions – equipment prone to damage |
Operating temperature -50℃~+70℃ – core components passed High/Low Temperature and Accelerated Aging Testing. Reliable in extreme cold and heat. |
| Typhoon-prone areas with high winds – risk of antenna damage |
Engineered wind resistance – structurally intact at Scale 12 (dish pointed skyward). Normal operation at Scale 8. |
| International shipping – risk of antenna damage during transit |
Packaging suitable for air, ocean, and land transport – professional protection with global logistics experience. |
Compact & Lightweight – 60cm diameter for easy balcony/small rooftop installation – no extra space required.
User-Friendly Installation – Optimized structural design for rapid assembly and precise pointing – lowers installation barrier.
Superior Signal Integrity – High-precision reflector with gain ≥38.52dBi – minimizes signal loss.
Exceptional Durability – Professional anti-corrosion treatment – passed Salt Spray, Damp Heat, Temperature, and Aging tests.
Wide Temperature Range – -50℃~+70℃ operating temperature – adapts to all extreme climates.
Structural Resilience – Scale 12 wind resistance – Scale 8 normal operation.
Global Logistics Ready – Packaging suitable for air, ocean, and land transport – professional protection, fast delivery.
| Application | Description |
|---|---|
| Urban Residences / Apartments |
Balcony, window sill, or exterior wall installation – solves rooftop space limitations |
| Single-Family Homes / Villas |
Patio or small rooftop installation – clean and aesthetically pleasing |
| RV / Camping |
Satellite TV reception for mobile applications – lightweight and portable |
| Coastal Areas |
Salt-spray resistant design – adapts to high-humidity marine climates |
| Remote Areas |
Reliable reception in weak signal environments – high gain ensures picture quality |
| Operator Bulk Deployment |
Supports logo/color customization – ideal for large-scale procurement |
| Step | Description |
|---|---|
| 1. Mount Installation | Choose L-wall mount or ground mount based on installation location – secure firmly |
| 2. Antenna Assembly | Assemble reflector and feedhorn support – install LNBF |
| 3. Satellite Pointing | Use elevation scale (30~90°) and azimuth (0~360°) for precise pointing |
Mounting Types: L-wall / ground multi-purpose – adapts to different installation scenarios
Adjustment Range:
Elevation: 5° ~ 85°
Azimuth: 0° ~ 360°
| Test Item | Standard |
|---|---|
| Neutral Salt Spray Test | Passed – excellent corrosion resistance |
| Damp Heat Test | Passed – adapts to high-humidity environments |
| High/Low Temperature Test | -50℃~+70℃ – passed |
| Accelerated Aging Test | Passed – long-term reliability assured |
| Fastener Salt Spray Test | ≥24 hours |
Q: Is this antenna suitable for balcony installation?
A: Very suitable. The 60cm compact design with L-wall mount allows direct installation on balcony walls or railings – no extra space required. An ideal choice for urban residences.
Q: Does installation require professional expertise?
A: No. The product features an optimized structural design for rapid assembly. Both elevation and azimuth have clear scale indications. Regular users can complete installation and pointing by following the manual.
Q: Is gain ≥38.52dBi sufficient?
A: Absolutely. Achieving 38.52dBi gain with a 60cm antenna is an excellent level. For Ku-band satellite signal reception, this gain ensures clear picture quality in most regions, including weak signal areas.
Q: How corrosion-resistant is the antenna?
A: The antenna features a professional anti-corrosion coating and has passed Neutral Salt Spray Testing and Damp Heat Testing. Fasteners use Dacromet surface treatment with ≥24h salt spray test – especially suitable for coastal high-salt environments.
Q: Can it truly operate at -50℃~+70℃?
A: Yes. Core components have passed rigorous High/Low Temperature Testing and Accelerated Aging Testing, ensuring long-term stable operation in extreme climates (severe northern winters, scorching southern summers).
Q: How strong is the wind resistance?
A: Engineered wind resistance design:
Scale 8 wind – normal operation, stable signal
Scale 10 wind – slight decrease in precision
Scale 12 wind – dish remains intact when pointed skyward
Q: Do you support color and logo customization?
A: Yes. Default color is light gray. We support custom colors and printed logos based on client requirements – ideal for operator bulk procurement and corporate brand consistency.
Q: Is the packaging suitable for international shipping?
A: Yes. Packaging is designed for air, ocean, and land transport – professional protective structure to minimize transit damage. Global logistics experience ensures fast delivery.
| Configuration Option | Description |
|---|---|
| ST-Ku60 (Standard) | 60cm Ku-band offset antenna – includes reflector, mount, and fasteners |
| ST-Ku60-LNBF | Antenna + Ku-band LNBF (model can be specified) |
| ST-Ku60-CUST | Custom color/logo – please inquire |
Standard Package Includes:
Reflector ×1
Feedhorn support ×1
L-wall/ground mount ×1
Fastener kit ×1
Installation manual ×1
Sales & Technical Support: huang@setontech.cn
Website: www.vsatlnb.com
Technical Support: Installation guidance, bulk orders, customization requests
Choose the ST-Ku60 – 60cm compact design for easy balcony/rooftop installation. High-precision reflector for excellent signal reception. All-weather durability with Scale 12 wind resistance.
Contact us today for samples or detailed datasheets.
