Place of Origin:
China
Brand Name:
SETON
Model Number:

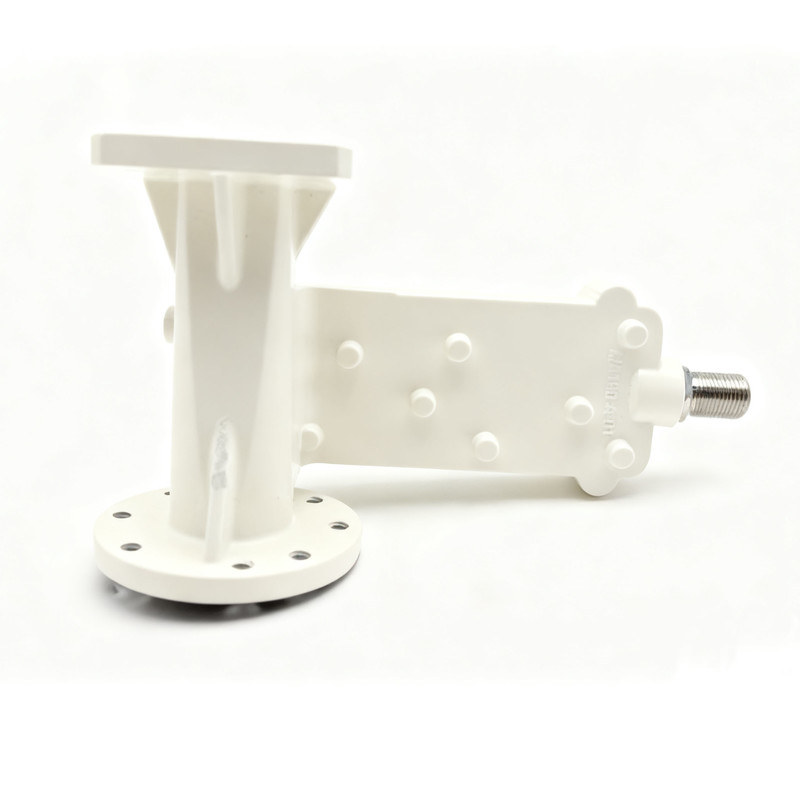

Rx OMT LNB
| No. | Item | Specification | Unit |
|---|---|---|---|
| K-1 | Input Frequency Range | 10.7 ~ 11.7 [Low band] 11.7 ~ 12.75 [High band] |
GHz |
| K-2 | Local Oscillator Freq. | 9.75/10.6[Typ.] | GHz |
| K-3 | Output Freq. Range | 950 ~ 1100 / 1950 ~ 2150 | MHz |
| K-4 | LO Initial Accuracy | ± 20[Typ.] | kHz |
| K-5 | LO Temperature Drift | ±50[Typ.] | kHz |
| K-6 | Conversion Gain | 52 ~ 70 / 56[Typ.] | dB |
| K-7 | Gain Variation over 27MHz | 5±2[Typ.] | dB |
| K-8 | Noise Figure | 1±0.2[Typ.] | dB |
| K-9 | LO Phase Noise @ 10KHz | -80.00[Max.] | dBc/Hz |
| K-10 | OMT Transmit to Receive Isolation | 35[Typ.] | dB |
| K-11 | OMT Cross Port Isolation | 35[Typ.] | dB |
| K-12 | Output VSWR | 2.5:1 | / |
| K-13 | Band Selection (LO selection) | 10.00 ~ 15.00 V [Low band] 14.00 ~ 20.00 V [High band] |
|
| K-14 | Working temperature | -40 ~ +70 | ℃ |
| K-15 | DC power | 150.00[Typ.] | mA |
| K-16 | 1dB Compression Point | 0[Min.] | dBm |
| K-17 | Output Impedance | 75.00[Typ.] | Ohm |
| K-18 | Output Port | 1 | F-Type |
