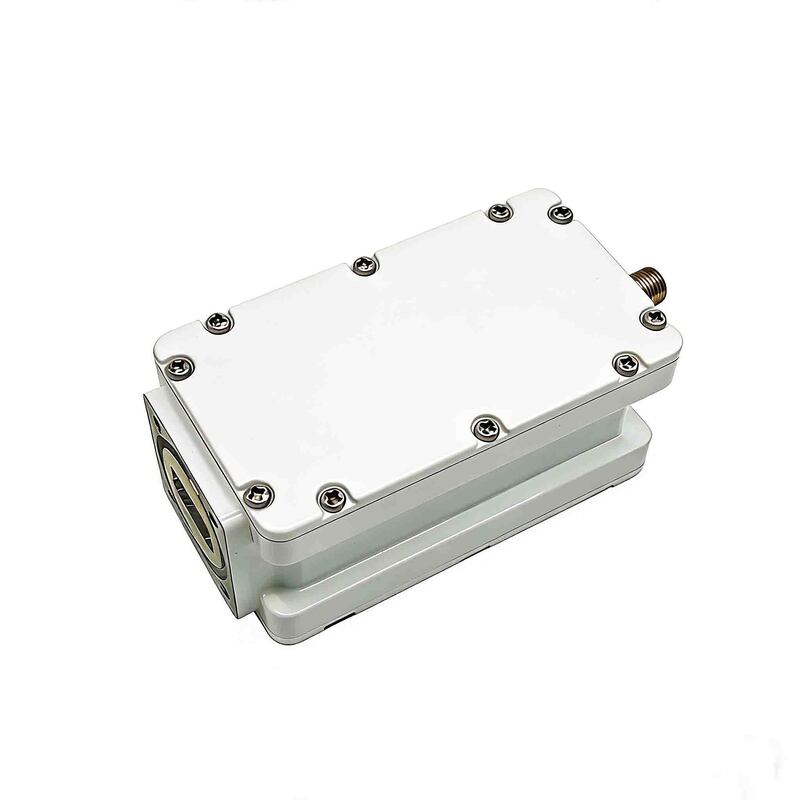

Name: 5G-Immune WR-75 Waveguide LNB - Built-in High-Rejection Filter for 3.5GHz IMT Interference
Brand: Chenzhou Seton Technology Co., Ltd
SKU: KU WR75 ST-K11G
Availability: InStock

Home > Products > VSAT LNB >

5G-Immune WR-75 Waveguide LNB - Built-in High-Rejection Filter for 3.5GHz IMT Interference

5G-Immune VSAT LNB

High-Rejection Filter WR-75 Waveguide LNB

63dB Gain KU-BAND LNB

Place of Origin:

China

Brand Name:

SETON

Model Number:

KU WR75 ST-K11G

Chat Now

Request A Quote

Product Details

Gain:

58~68dB/ 63dB (Typ.)

Noise Figure:

0.5 DB (Typ.) 0.8dB (Max.)

L.O. Frequency:

9.75 GHz/ 10 GHz/ 10.6 GHz/ 10.75 GHz/ 11.25 GHz/ 11.3 GHz, Etc.

L.O. Stability:

±50KHz

Phase Noise:

-70dBc@1KHz; -80@10KHz; -90dBc@100KHz

Guard Band:

100MHz

5G Power Level:

-30dBm

5G IMT:

3.3~3.6GHz

Highlight:

5G-Immune VSAT LNB

High-Rejection Filter WR-75 Waveguide LNB

63dB Gain KU-BAND LNB

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

CARTON

Delivery Time

30-35 days

Payment Terms

T/T,Western Union

Supply Ability

15 million pieces

VSAT ODU RF Unit - Block Upconverter (13.75-14.5GHz) with Integrated LNB (950-1700MHz), 58dB Gain

Chat Now

High Gain Low Noise Quattro LNB - Universal 4 Output Ku Band LNBF for VSAT/Satellite Systems

Chat Now

Universal Quattro LNB for VSAT - Ku Band 4 Output High Gain Low Noise Satellite LNBF

Chat Now

C-Band LNB for VSAT System - ST-C11F WR229G High Gain Anti-5G Filter, 3.7-4.2GHz Low Noise

Chat Now

86-0735-8888458

huang@setontech.cn

Chat Now

Product Description

WR-75 LNB with -30dBm 5G Immunity - Guaranteed Gain, No Intermodulation (100MHz Guard Band)

Frequency Range: 9.84~15 GHz (Customizable design according to different frequency requirements)

Local Oscillator Options: 9.75 GHz, 10 GHz, 10.6 GHz, 10.75 GHz, 11.25 GHz, 11.3 GHz, etc.

Technical Specifications

Parameter	Value
Noise Figure	0.5 dB (Typ.) 0.8dB (Max.)
L.O. Stability	±50KHz
Phase Noise	-70dBc@1KHz; -80@10KHz; -90dBc@100KHz
Input VSWR	2.2:1
Output VSWR	2.2:1
Gain	58~68dB/ 63dB (Typ.)
Gain Flatness (over full band)	5dBp-p (Max.)
Output P1dB	+5dBm
DC Power	+12VDC~+24VDC
Tone	22KHz±4
Current	250mA
Input Connection	WR75
Output Connection	F(75Ω)/N(50Ω)
Anti-Thunder	4KV(Min.)/6KV(Max.)
Rejection	KU-TI
Operating Temperature	-30℃~+60℃
Storage Temperature	-40℃~+70℃

Available Frequency Bands (Customizable)

Band 1	Band 2	Band 3	Band 4
10.7~11.7 GHz	10.95~11.7 GHz	11.7~12.75 GHz	12.25~12.75 GHz
L.O. 9.75 GHz	L.O. 10.00 GHz	L.O. 10.75 GHz	L.O. 11.30 GHz
IF 950~1950 MHz	IF 950~1700 MHz	IF 950~2000 MHz	IF 950~1450 MHz

Frequently Asked Questions

What is an ANTI-5G WR75 LNB?

The transmit way by Matrix waveguide provides the LNB with inherent anti-5G IMT @3.5GHz band interference capability.

What is a Strong Rejection-5G WR75 LNB?

This WR75 LNB can directly input 5G IMT@3.5GHz frequency from transmitting waveguide with a 100MHz guard band. At 5G power levels of -30dBm, the LNB output gain (in-band) shows no intermodulation and no saturation. The LNB features built-in high performance out-band rejection passive filters without requiring external mechanical filters.

What is High Gain Low Noise?

High Gain: 63dB (Typical) enables reception of weak intensity signals. Low Noise: 0.8dB (Maximum) guarantees better system C/N value performance.

Interference Scenario Analysis

Threat: 5G IMT @ 3.5 GHz (e.g., 3.4-3.8 GHz band)

Guard Band: 100 MHz between the 5G band and satellite C-Band (3.7-4.2 GHz)

5G Power at LNB Input: -30 dBm (very strong signal - approximately 60-80 dB stronger than typical satellite signals)

LNB Response: No gain, no intermodulation, no saturation - indicating effective filtering that attenuates 5G signals below the LNB's noise floor while preserving amplifier linearity.
