Place of Origin:
CHINA
Brand Name:
SETON
Certification:
CE, ISO, RoHS
Model Number:

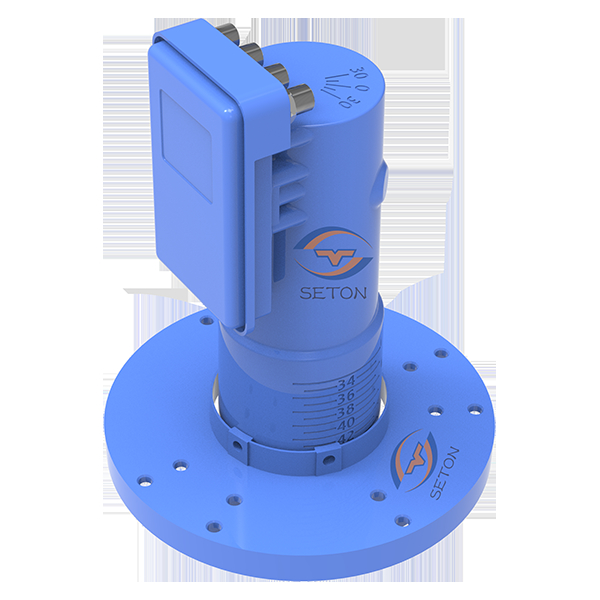

ST-C24M
| Item | Specification |
|---|---|
| Input Frequency Range | 3.7~4.2GHz |
| Output Frequency Range | 950~1450MHz |
| LO Frequency | 5.15GHz |
| Noise Figure | 17K(Typ.)/28K(Max.) |
| Conversion Gain | 60dB(Min.) |
| Gain Flatness | ±4dB |
| Gain Variation | ±0.5dB/26MHz |
| Control Signals V-Pro/H-Pro | 10.0~14.0V/16.0~20.0V |
| LO Temperature Drift(-30~+70℃) | ±0.75MHz |
| LO Phase Noise @10kHz | -80dBc/Hz |
| Output P1dB Compression Point | +5dBm(Min.) |
| Crosstalk Isolation | 20dB(Min.) |
| I/P @ (1.6 ~ 3.6GHz Frequency Rejection) | 1.6 ~ 3.3GHz @65dBc(Min.) 3.3 ~ 3.5GHz @60dBc(Min.) 3.5 ~ 3.6GHz @55dBc(Min.) |
| O/P @ >1550MHz Frequency Rejection | 70dB(Min.) |
