Place of Origin:
CHINA
Brand Name:
SETON
Certification:
CE, ISO, RoHS
Model Number:

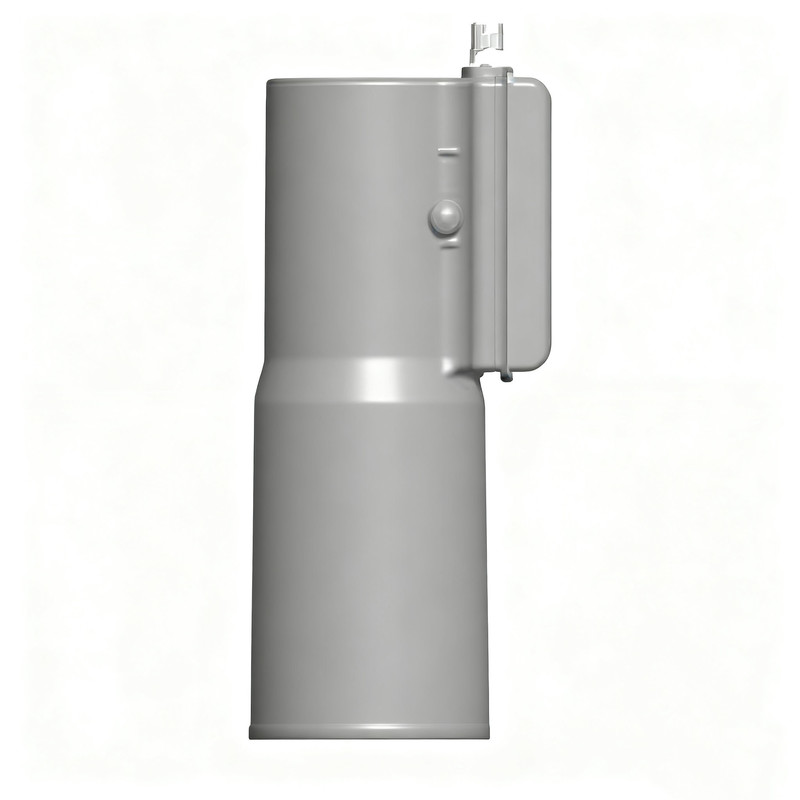

ST-C11C
| Item | Specification | Unit |
|---|---|---|
| I/P Frequency Range | 3.7 ~ 4.2 | GHz |
| O/P Frequency Range | 950 ~ 1450 | MHz |
| LO Frequency | 5.15 | GHz |
| Noise Figure | 0.7 [Typ.] | dB |
| LO Temperature Drift (- 30 ~ + 70℃) | ± 0.75 | MHz |
| LO Phase Noise @ 10K Hz | -80 | dBc/ Hz |
| Conversion Gain | 60 [Typ.] | dB |
| Gain Flatness | ± 4 | dB |
| Gain Variation | ± 0.5 | dB/26MHz |
| O/P 1 dB Compression Point (P1dB) | 0.0 [min] | dBm |
| I/P @ (1.6 ~ 3.5GHz Frequency Rejection) | 1.6~ 3.5GHz @-30[max.] | dB |
| O/P @ >1650MHz Frequency Rejection | -40[max.] | dB |
| Crosstalk Isolation | 20 [min] | dB |
| Control Signals ( V - Pro ) | 11.0 ~ 14.0 | V |
| Control Signals ( H - Pro ) | 16.0 ~ 20.0 | V |
| Output Impedance | 75 | Ω (F-Type) |
