Place of Origin:
CHINA
Brand Name:
SETON
Certification:
CE, ISO, RoHS
Model Number:
ST-C11FS

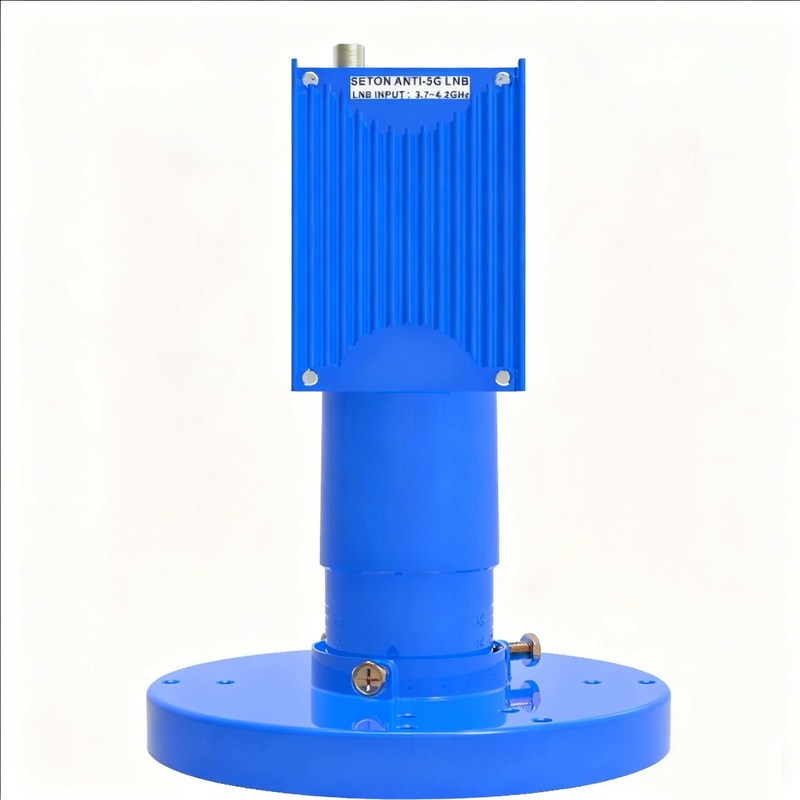

High-performance C Band LNBF with advanced interference rejection capabilities against WiMAX, LTE, and 5G signals.
| Item | Specification | Unit |
|---|---|---|
| I/P Frequency Range | 3.7 ~ 4.2 | GHz |
| O/P Frequency Range | 950 ~ 1450 | MHz |
| LO Frequency | 5.15 | GHz |
| Noise Figure | 0.7 [Typ.] | dB |
| LO Temperature Drift (-30 ~ +70℃) | ± 0.75 | MHz |
| LO Phase Noise @ 10K Hz | -85 | dBc/Hz |
| Conversion Gain | 60 [Typ.] | dB |
| Gain Flatness | ± 3 | dB |
| Gain Variation | ± 0.50 | dB/26MHz |
| 5G Power Level | -15 ~ -10 | dBm |
| I/P @ (1.6 ~ 3.6GHz Frequency Rejection) | 1.6 ~ 3.3GHz @-70[max.] 3.3 ~ 3.5GHz @-65[max.] 3.5 ~ 3.6GHz @-60[max.] 4.8 ~ 5.0GHz @-50[max.] |
dBc |
| O/P @ >1550MHz Frequency Rejection | -60[max.] | dB |
| Crosstalk Isolation | 20 [min.] 22[typ.] |
dB |
| Anti-Thunder | -3 | kV |
| Control Signals (V - Pro) | 11.0 ~ 14.0 | V |
| Control Signals (H - Pro) | 16.0 ~ 20.0 | V |
| Output Impedance | 75 | Ω (F-Type) |
