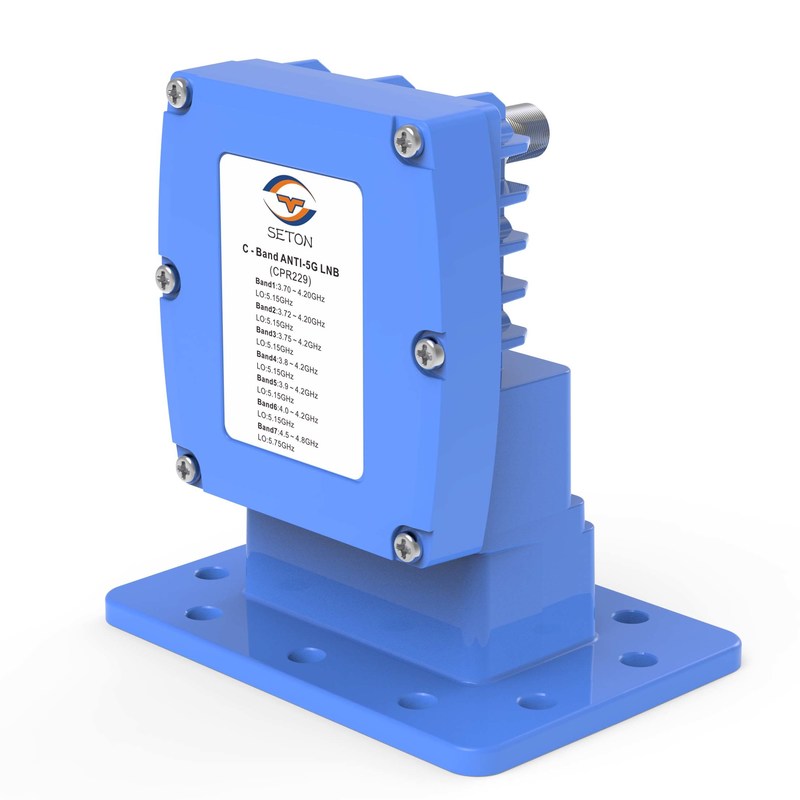

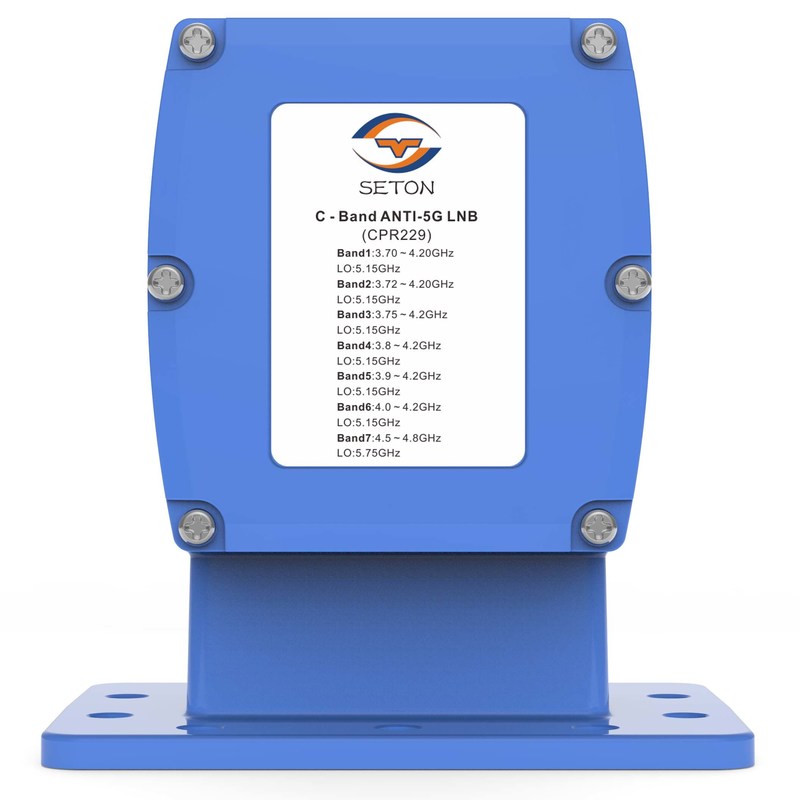

Strong Rejection-5G 3.5G IMT High Gain Low Noise WR229 LNB
LNB: 3.7~4.2GHz (Customizable design according to difference frequency)
5G IMT: 3.3~3.6GHz
Guard band: 100MHz
LNB Input 5G Power level: -30~-20dBm@ 3.3~3.6GHz.
| Input Frequency | 3700 MHz ~ 4200 MHz |
|---|---|
| Output Frequency | 950 MHz ~ 1450 MHz |
| Noise figure | 30° K (Typ.)/50° K (Max.) |
| Phase noise @ 1 KHz | -75 dBc/Hz |
| Phase noise @ 10 KHz | -85 dBc/Hz |
| Phase noise @ 100 KHz | -95 dBc/Hz |
| Conversion Gain | 58 dB~68 dB/ 63dB (Typ.) |
| Gain Flatness | 5 dBp-p (Max.) |
| P1 dB | +10 dBm (Min.) |
| VSWR Input | 2.2:1 (Max.) |
| VSWR Output | 2.2:1 (Max.) |
| Local Oscillator | 5.15GHz |
| Local Oscillator Stability | ± 25 KHz |
| LNB Input Rejection | 50 dBc min.(@100MHz) |
| P1db (LNB Input 5G Power Level) | -30 dBm (Max.) |
| DC Power | +12 VDC - + 24 VDC |
| Input Connection | WR229G |
| Output Conector | F (75 Ω) / N(50Ω) |
| Current | 200mA (Max.) |
| Frequency Band(GHz) | 3.7~4.2 | 3.72~4.2 | 3.8~4.2 | 3.9~4.2 | 4.0~4.2 |
|---|---|---|---|---|---|
| L.O. Frequency(GHz) | 5.15 | 5.15 | 5.15 | 5.15 | 5.15 |
| IF Frequency(MHz) | 950~1450 | 950~1430 | 950~1350 | 950~1250 | 950~1150 |
The transmit way by Matrix waveguide, LNB itself has anti-5G IMT @3.5G Band interference capability.
WR229 LNB directly input 5G IMT@3.5GHz frequency from transmitting waveguide, Guard band=100MHz, 5G Power Level: -30dBm, WR229 LNB output Gain(in-band) no intermodulation, Output Gain no saturation. WR229 LNB itself has strong anti-5G IMT@3.5GHz frequency capability, because with un-linking the mechanical filter outside, WR229 LNB built-in high performance out-band rejection passive filter.
WR229 LNB High Gain: 63dB (Typ.), which can receive week intensity signal; Low Noise:50°K(Max.)/ 0.8dB(Max.), which can guarantee system better C/N value.
