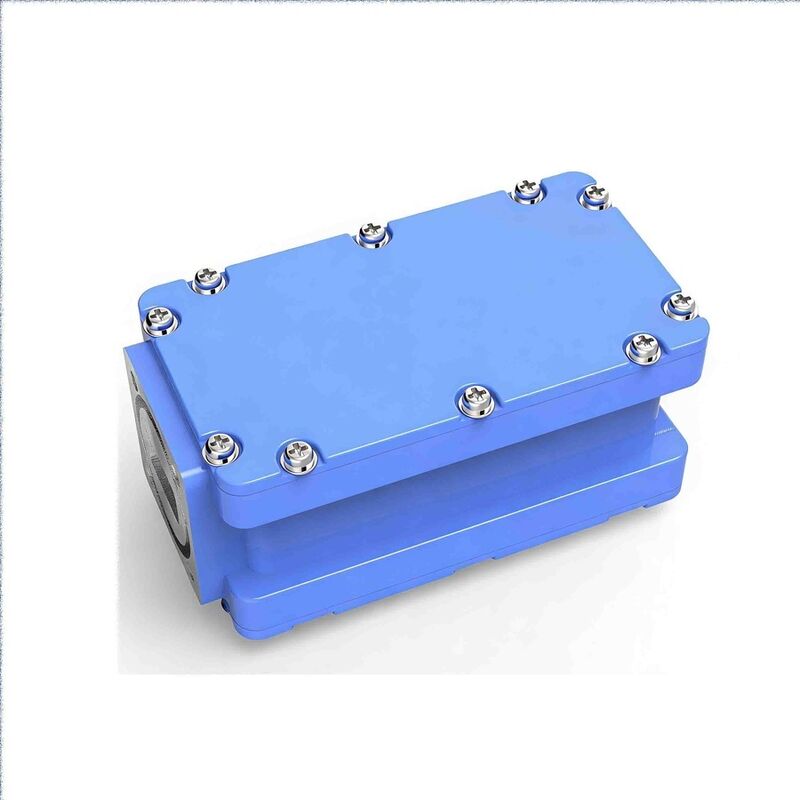

Name: Professional FSS LNB ST-K11G - High Gain, Low Noise KU Band with Built-in 5G IMT (3.5GHz) Rejection for WR-75 Systems
Brand: Chenzhou Seton Technology Co., Ltd
SKU: KU WR75 ST-K11G
Availability: InStock

Home > Products > FSS LNB >

Professional FSS LNB ST-K11G - High Gain, Low Noise KU Band with Built-in 5G IMT (3.5GHz) Rejection for WR-75 Systems

High Gain 63dB FSS LNB

Low Noise 0.5dB KU Band LNB

5G IMT 3.5GHz Rejection WR-75 LNB

Place of Origin:

China

Brand Name:

SETON

Model Number:

KU WR75 ST-K11G

Chat Now

Request A Quote

Product Details

Gain:

58~68dB/ 63dB (Typ.)

Noise Figure:

0.5 DB (Typ.) 0.8dB (Max.)

L.O. Frequency:

9.75 GHz/ 10 GHz/ 10.6 GHz/ 10.75 GHz/ 11.25 GHz/ 11.3 GHz, Etc.

L.O. Stability:

±50KHz

Phase Noise:

-70dBc@1KHz; -80@10KHz; -90dBc@100KHz

Guard Band:

100MHz

5G Power Level:

-30dBm

5G IMT:

3.3~3.6GHz

Highlight:

High Gain 63dB FSS LNB

Low Noise 0.5dB KU Band LNB

5G IMT 3.5GHz Rejection WR-75 LNB

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

CARTON

Delivery Time

30-35 days

Payment Terms

T/T,Western Union

Supply Ability

15 million pieces

KU Band FSS LNB ST-K24Q Universal QUAD LNB With 0.7dB Noise Figure 58 - 68dB Conversion Gain

Chat Now

3.7 - 4.2GHz High Gain Low Noise FSS LNB C Band FSS System Anti 5G LNB

Chat Now

C Band FSS LNB ST-C11E Satellite LNB Rejection 5G 950 MHz - 1450 MHz Output Frequency

Chat Now

C BAND FSS Satellite LNB ST-C11G IP67 Waterproof 5.15GHz LO Frequency

Chat Now

86-0735-8888458

huang@setontech.cn

Chat Now

Product Description

Professional FSS LNB ST-K11G

High Gain, Low Noise KU Band LNB with Built-in 5G IMT (3.5GHz) Rejection for WR-75 Systems

Product Overview

ST-K11G: 5G-Immune KU Band FSS LNB (WR-75) featuring high gain, low noise performance with integrated 3.5GHz filter for VSAT & FSS systems.

Technical Specifications

Parameter	Specification
LNB Frequency Range	9.84~15 GHz (Customizable design)
LO Frequency Options	9.75 GHz / 10 GHz / 10.6 GHz / 10.75 GHz / 11.25 GHz / 11.3 GHz, etc.
Noise Figure	0.5 dB (Typ.) / 0.8 dB (Max.)
L.O. Stability	±50KHz
Phase Noise	-70dBc@1KHz; -80@10KHz; -90dBc@100KHz
Input VSWR	2.2:1
Output VSWR	2.2:1
Gain	58~68dB / 63dB (Typ.)
Gain Flatness	5dBp-p (Max.) over full band
Output P1dB	+5dBm
DC Power	+12VDC~+24VDC
Tone	22KHz±4
Current	250mA
Input Connection	WR75
Output Connection	F(75Ω) / N(50Ω)
Anti-Thunder	4KV(Min.) / 6KV(Max.)
Rejection	KU-TI
Operating Temperature	-30℃ ~ +60℃
Storage Temperature	-40℃ ~ +70℃

Available Frequency Bands (Customizable)

Band	Frequency Band (GHz)	L.O. Frequency (GHz)	IF Frequency (MHz)
Band 1	10.7~11.7	9.75	950~1950
Band 2	10.95~11.7	10.00	950~1700
Band 3	11.7~12.75	10.75	950~2000
Band 4	12.25~12.75	11.30	950~1450

Frequently Asked Questions

What is an ANTI-5G WR75 LNB?

The ST-K11G features matrix waveguide transmission with built-in anti-5G IMT @3.5GHz band interference capability, eliminating the need for external filtering components.

What is a Strong Rejection-5G WR75 LNB?

This WR75 LNB incorporates a built-in high-performance out-band rejection passive filter that provides strong immunity against 5G IMT@3.5GHz frequency interference. With guard band of 100MHz and handling power levels up to -30dBm, it maintains output gain stability without intermodulation or saturation.

What is High Gain Low Noise?

High Gain (63dB typical) enables reception of weak intensity signals, while Low Noise (0.8dB maximum) ensures optimal system C/N value for superior signal quality and reliability.

Advantages of Integrated 5G Rejection Technology

Superior Rejection Performance

> 110 dB rejection at 3.5GHz - far exceeds external filter solutions
No additional insertion loss in Ku-band (external filters typically add 0.3-0.8 dB)
Better system noise figure maintained

System Integration Benefits

No external components required
Reduced complexity in installation
No additional connections (eliminating potential PIM/failure points)
Weatherproof integrity maintained

Enhanced Reliability

Factory-tuned performance
No field alignment required
Consistent performance over temperature and time
