Place of Origin:
China
Brand Name:
SETON
Model Number:

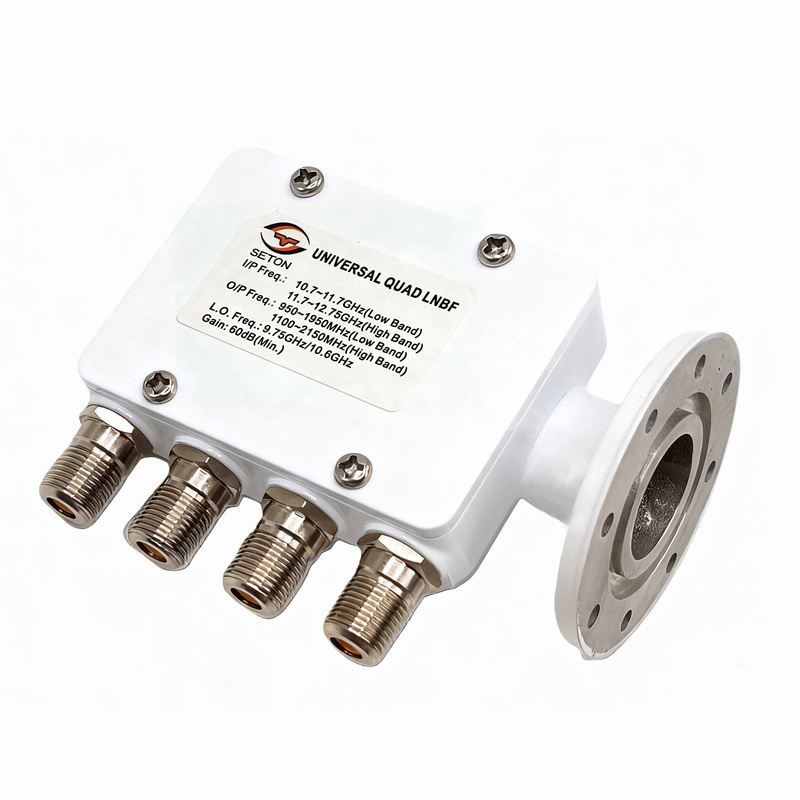

ST-K24Q(Universal QUAD LNB)
| No. | Item | Specification | Unit |
|---|---|---|---|
| K-1 | Low Band I/P Frequency Range | 10.7 ~ 11.7 | GHz |
| K-2 | O/P Frequency Range | 950 ~1950 | MHz |
| K-3 | LO Frequency | 9.75 | GHz |
| K-4 | Noise Figure | 0.7[Typ]. / 0.9[Max.]] | dB |
| K-5 | High Band I/P Frequency Range | 11.7 ~ 12.75 | GHz |
| K-6 | O/P Frequency Range | 1100 ~ 2150 | MHz |
| K-7 | LO Frequency | 10.6 | GHz |
| K-8 | Noise Figure | 0.7[Typ]. / 0.9[Max.] | dB |
| K-9 | LO Initial Accuracy | ± 0.5 | MHz |
| K-10 | LO Temperature Drift - 30 ~ + 60℃ | ± 0.75 | MHz |
| K-11 | LO Phase Noise @ 1K Hz | -70 | dBc / Hz |
| K-12 | LO Phase Noise @ 10K Hz | -80 | dBc / Hz |
| K-13 | LO Phase Noise @ 100K Hz | -90 | dBc / Hz |
| K-14 | Conversion Gain | 58-68/62[Typ.] | dB |
| K-15 | Gain Flatness | ±3.5[Max.] | dB |
| K-16 | Gain Variation | ±0.5 | dB/26MHz |
| K-17 | Image Rejection | -40 [Min.]] | dB |
| K-18 | O/P 1 dB Compression Point | 0.0 [Min.]＋3.0[Typ.]] | dBm |
| K-19 | Crosstalk Isolation | 22 [Min.]] | dB |
| K-20 | Control Signals Ca [ V ] | 10.0 ～ 14.0 | V |
| K-21 | Control Signals Cb [ H ] | 16.0 ～ 20.0 | V |
| K-22 | Control Signals Cc | 22± 4 | kHz |
| K-23 | O/P VSWR | 2.5:1 | ~ |
| K-24 | DC Power | 10 ~ 20* 150[Max.] | Vdc*mA |
| K-25 | Working Temperature | - 30 ~ + 60 | ℃ |
| K-26 | Output Impedance | 75 | Ω (F-Type) |
| K-27 | Waterproof | O-Ring |
