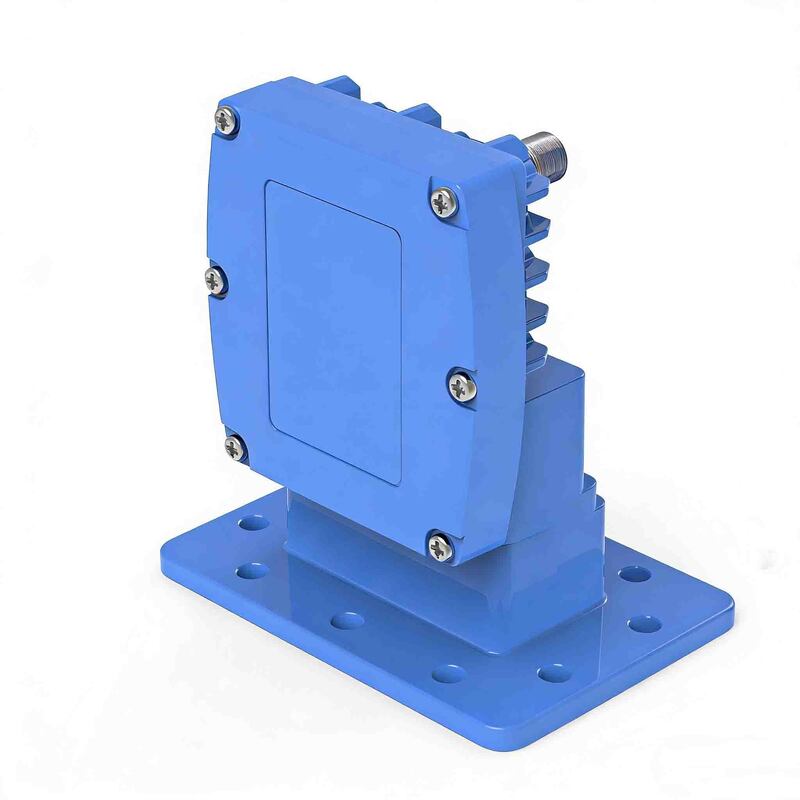

The Strong Rejection-5G WR229 LNB is a high-performance low-noise block downconverter designed to combat 5G interference in the 3.7–4.2 GHz satellite reception band. With the growing challenge of 5G IMT signals in the 3.5 GHz range, this LNB integrates a high-performance built-in rejection filter to deliver exceptional immunity to out-of-band interference—ensuring clean and stable signal reception without the need for external filtering hardware.
1. Output gain should not have lots of intermodulation when 3.3~3.6GHz interference input WR229 LNB.
2. Output gain should not be saturated when 3.3~3.6GHz interference input WR229 LNB.
| Input Frequency | 3700 MHz ~ 4200 MHz |
|---|---|
| Output Frequency | 950 MHz ~ 1450 MHz |
| Noise figure | 30° K (Typ.)/50° K (Max.) |
| Phase noise @ 1 KHz | -75 dBc/Hz |
| Phase noise @ 10 KHz | -85 dBc/Hz |
| Phase noise @ 100 KHz | -95 dBc/Hz |
| Conversion Gain | 58 dB~68 dB/ 63dB (Typ.) |
| Gain Flatness | 5 dBp-p (Max.) |
| P1 dB | +10 dBm (Min.) |
| VSWR Input | 2.2:1 (Max.) |
| VSWR Output | 2.2:1 (Max.) |
| Local Oscillator | 5.15GHz |
| Local Oscillator Stability | ± 25 KHz |
| LNB Input Rejection | 50 dBc min.(@100MHz) |
| P1db (LNB Input 5G Power Level) | -30 dBm (Max.) |
| DC Power | +12 VDC - + 24 VDC |
| Input Connection | WR229G |
| Output Conector | F (75 Ω) / N(50Ω) |
| Current | 200mA (Max.) |
| Frequency Band(GHz) | 3.7~4.2 | 3.72~4.2 | 3.8~4.2 | 3.9~4.2 | 4.0~4.2 |
|---|---|---|---|---|---|
| L.O. Frequency(GHz) | 5.15 | 5.15 | 5.15 | 5.15 | 5.15 |
| IF Frequency(MHz) | 950~1450 | 950~1430 | 950~1350 | 950~1250 | 950~1150 |
The transmit way by Matrix waveguide, LNB itself has anti-5G IMT @3.5G Band interference capability.
WR229 LNB directly input 5G IMT@3.5GHz frequency from transmitting waveguide, Guard band=100MHz, 5G Power Level: -30dBm, WR229 LNB output Gain(in-band) no intermodulation, Output Gain no saturation. WR229 LNB itself has strong anti-5G IMT@3.5GHz frequency capability, because with un-linking the mechanical filter outside, WR229 LNB built-in high performance out-band rejection passive filter.
WR229 LNB High Gain: 63dB (Typ.), which can receive week intensity signal; Low Noise:50°K(Max.)/ 0.8dB(Max.), which can guarantee system better C/N value.
