60cm KU Band Rx Antenna 10.7 - 12.75GHz For Satellite Communication

60cm KU Band Rx Antenna 10.7 - 12.75GHz For Satellite Communication

60cm Rx Antenna

Rx Antenna 12.75GHz

KU Band Antenna 10.7GHz

Place of Origin:

China

Brand Name:

SETON

Model Number:

ST-Ku60

Chat Now
Request A Quote
Product Details
Antenna Type:
KU 60cm OFFSET Antenna
Antenna Color:
Light Gray (Customizable Design)
Frequency Range:
10.7~12.75 GHz
Gain:
≥38.52dBi
F/D:
A=600mm, B=658mm
Reflector Thickness:
0.5mm (Before Powdering)
Fastener Surface Treatment:
Dacromet
All Materials:
Galvanized Steel
Highlight:

60cm Rx Antenna

,

Rx Antenna 12.75GHz

,

KU Band Antenna 10.7GHz

Payment & Shipping Terms
Packaging Details
Carton / Pallet / Case
Delivery Time
30-35 days
Payment Terms
T/T,Western Union
Supply Ability
100000/Month
Product Description

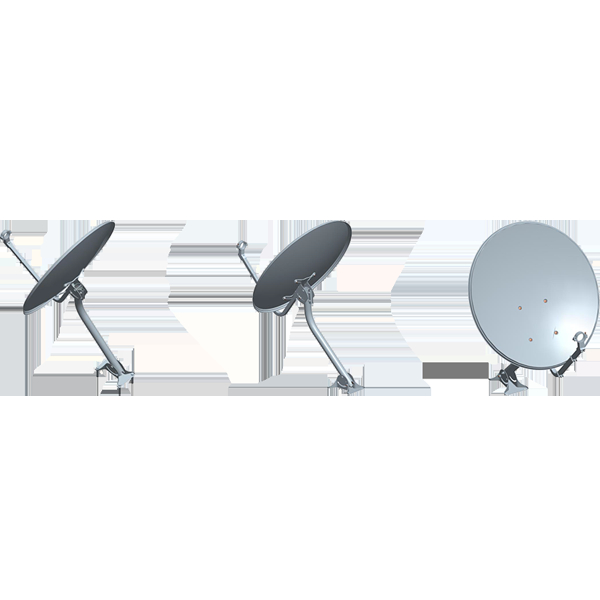

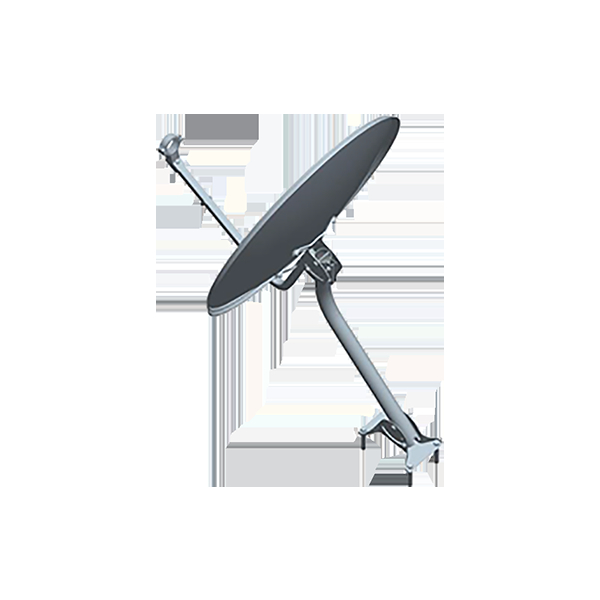

KU-BAND Rx Antenna ST-Ku60
ST-Ku60 Rx Antenna
Main Features
  • Optimized structure design for easy field assembly and alignment
  • High performance with superior surface precision
  • Surface anti-corrosion treatment ensures long operational life
  • Customizable logo and color options available
  • Designed to withstand wind forces up to scale 12 (with dish direction fixed)
  • Packaging suitable for air, ocean, and land transportation
Technical Specifications
Antenna Type KU 60cm OFFSET Antenna
Antenna Color Light gray
Frequency Range 10.7~12.75 GHz
Gain ≥38.52dBi
F/D a=600mm, b=658mm
VSWR Output 0.6±0.02
Focal Length f=492
Reflector Thickness 0.5mm  (Before powdering)
LNBF Inner Size Φ40±1
Mast Pole Outer Diameter Φ42mm
Mast Pole Thickness 1.4mm
Elevation Angle 5~85°
Working Temperature -50°~70℃
Working Humidity 5~95%
Azimuth 0~360°
Scale Indication 30~90°
Installation Method L wall ground multi-purpose type
Wind Resistance
Works properly under 8 level wind
Precision decreases under 10 level wind
Dish remains intact at grade 12 wind when pointed skyward
Fastener Surface Treatment Dacromet
Fastener Salt Spray Test ≥24h
Materials Galvanized steel
Feedhorn Supporter Materials 20×20×1 rectangular steel tube
