90cm Rx Antenna Ku Band ST-Ku90 Satellite Communication Antenna

90cm Rx Antenna Ku Band ST-Ku90 Satellite Communication Antenna

90cm Rx Antenna

90cm Satellite Communication Antenna

Rx Antenna Ku Band

Place of Origin:

China

Brand Name:

SETON

Model Number:

ST-Ku90

Chat Now
Request A Quote
Product Details
Antenna Type:
KU 90cm OFFSET Antenna
Antenna Color:
Light Gray (Customizable Design)
Frequency Range:
10.7~12.75 GHz
Gain:
≥40.32dBi
Reflector Thickness (Before Powdering):
0.7mm
Anti-wind Scale When Dish Fixed:
Working Properly Under 8 Level Wind Precision Decrease Under 10 Level Wind When Wind Grows To Grade 12, Dish Is Not Destroyed When Pointing To The Sky
Highlight:

90cm Rx Antenna

,

90cm Satellite Communication Antenna

,

Rx Antenna Ku Band

Payment & Shipping Terms
Packaging Details
Carton/ Pallet/ Case
Delivery Time
30-35 days
Payment Terms
T/T,Western Union
Supply Ability
100000/Month
Product Description
ST-Ku90 Rx Antenna
Main Features
  • Optimized structure design for easy field assembly and alignment
  • High performance with excellent surface precision
  • Surface anti-corrosion treatment ensures long operational life
  • Customizable logo and color options available
  • Designed to withstand wind forces up to scale 12 (dish direction fixed)
  • Packaging suitable for air, ocean, and land transportation
Technical Specifications
Antenna Type KU 90cm OFFSET Antenna
Antenna Color Light gray
Frequency Range 10.7~12.75 GHz
Gain ≥40.32dBi
F/D a=900mm, b=990mm
VSWR Output 0.6
Focal Length f=540
Reflector Thickness (Before powdering) 0.7mm
LNBF Inner Size Φ40±1
Mast Pole Outer Diameter Φ42mm
Mast Pole Thickness 1.4mm
Elevation Angle 5~85°
Working Environment Temperature -50°~70℃
Working Environmental Humidity 5~95%
Azimuth 0~360°
Scale Indication 10~90°
Installation Method L wall ground multi-purpose type
Anti-wind Scale when Dish Fixed
Working properly under 8 level wind
Precision decrease under 10 level wind
When wind grows to grade 12, dish is not destroyed when pointing to the sky
Surface Treatment of Fasteners Color-zinc
Color-zinc Fasteners Salt Spray Test ≥24h
All Materials Galvanized steel
Feedhorn Supporter Materials 19×19×1 rectangular steel tube

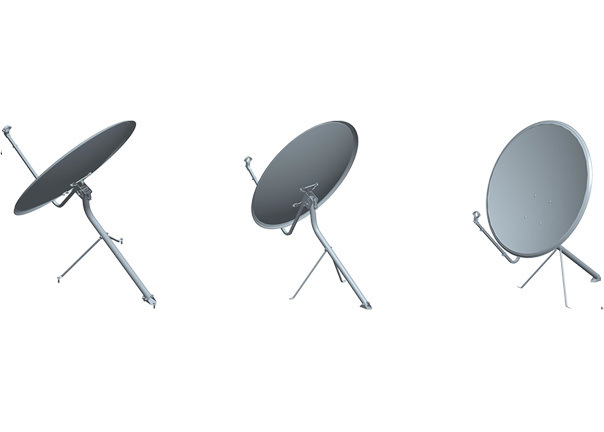

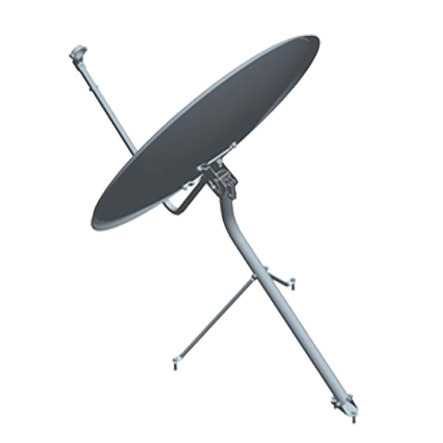

Products and Packaging
90cm Rx Antenna Ku Band ST-Ku90 Satellite Communication Antenna 0
90cm Rx Antenna Ku Band ST-Ku90 Satellite Communication Antenna 1
90cm Rx Antenna Ku Band ST-Ku90 Satellite Communication Antenna 2
90cm Rx Antenna Ku Band ST-Ku90 Satellite Communication Antenna 3
