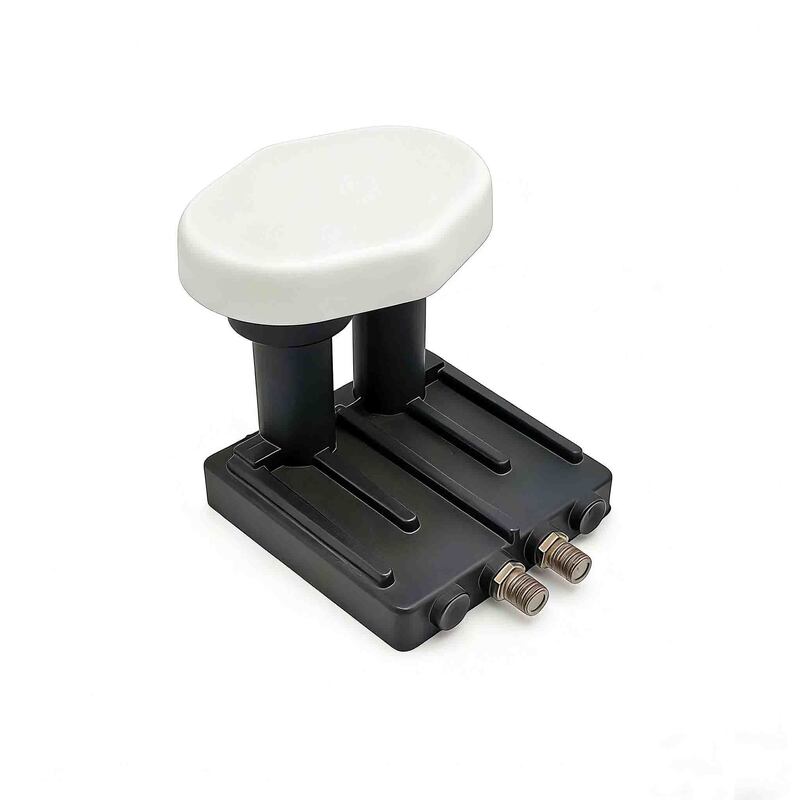

Name: Monoblock LNB Model ST-K222F - Dual Satellite Ku-Band Twin LNBF
Brand: Chenzhou Seton Technology Co., Ltd
SKU: ST-K222F
Availability: InStock

Home > Products > TVRO LNBF >

Monoblock LNB Model ST-K222F - Dual Satellite Ku-Band Twin LNBF

10.7~12.75GHz Frequency Range Monoblock LNB

0.7dB Noise Figure Ku-Band LNBF

Dual Output Twin LNBF Dual Satellite LNB

Place of Origin:

CHINA

Brand Name:

SETON

Certification:

CE, ISO

Model Number:

ST-K222F

Chat Now

Request A Quote

Product Details

Input Frequency Range(Low-Band):

10.7 ~ 11.7GHz

Input Frequency Range(High-Band):

11.7 ~ 12.75GHz

Output Frequency Range(Low-Band):

950 ~ 1950MHz

Output Frequency Range(High-Band):

1100 ~ 2150MHz

Low Band LO Frequency:

9.75GHz

High Band LO Frequency:

10.6GHz

Noise Figure:

0.7dB (Typ.)/ 1.0dB(Max.)

Conversion Gain:

58dB~68dB

Highlight:

10.7~12.75GHz Frequency Range Monoblock LNB

0.7dB Noise Figure Ku-Band LNBF

Dual Output Twin LNBF Dual Satellite LNB

Payment & Shipping Terms

Minimum Order Quantity

500pcs

Packaging Details

CARTON

Delivery Time

30-35 days

Payment Terms

T/T,Western Union

Supply Ability

15 million pieces

Dual Satellite Monoblock LNBF Model ST-K212F - Professional Ku-Band LNB for 2-Satellite Reception

Chat Now

LNB Protector / 5G Filter for C-Band (3.7-4.2GHz) - Compatible with VSAT and Satellite TV Systems

Chat Now

ST-K24HA Universal Quad LNBF - Ku Band (10.7-12.75GHz) with 9.75/10.6GHz LO

Chat Now

Universal Twin LNBF for Ku-Band (10.7-12.75 GHz) - 0.7dB Noise Figure, Vertical & Horizontal Polarization

Chat Now

86-0735-8888458

huang@setontech.cn

Chat Now

Product Description

ST-K222F Ku Band Monoblock Twin LNB for 2 Satellites

Monoblock Twin Configuration

Two separate LNBs for two satellites
Each LNB has two outputs (total: 4 outputs)
Can feed two receivers, each accessing both satellites simultaneously

Key Features

Input: 10.7~12.75 GHz
LO: 9.75 GHz and 10.6 GHz
Polarization: Vertical and Horizontal
Receive: Two Satellite (4°~6° spacing)

Technical Specifications

Parameter	Specification
Input Frequency Range (Low-Band)	10.7GHz ~ 11.7GHz
Output Frequency Range (Low-Band)	950MHz ~ 1950MHz
Low band LO frequency	9.75GHz
Noise figure	0.7dB (Typ.)/ 1.0dB(Max.)
Input Frequency Range (High-Band)	11.7GHz ~ 12.75GHz
Output Frequency Range (High-Band)	1100MHz ~ 2150MHz
High band LO frequency	10.6GHz
Noise figure	0.7dB (Typ.)/ 1.0dB(Max.)
LO Initial Accuracy	0.5MHz
LO Temperature Drift (-30~+60℃)	0.75MHz
LO phase noise @ 1 KHz	-70dBc/Hz
LO phase noise @ 10 KHz	-80dBc/Hz
LO phase noise @ 100 KHz	-90dBc/Hz
Conversion Gain	58dB~68dB
Gain Variation	±4dB (Max.)
O/P 1dB Compression Point (P1 dB)	0.0dBm (Min.)
Image-Rejection	40dB (Min.)
Crosstalk Isolation	20dB (Min.)
O/P VSWR	2.5:1
DC-Power	180mA
Output Impedance	75Ω (F-Type)
Waterproof	O-RING
Working Temperature	-30℃~+60 ℃

Polarity, Band & Satellite Selection

Vertical, Low band, Sat: A
Vertical, High band, Sat: A
Horizontal, Low band, Sat: A
Horizontal, High band, Sat: A
Vertical, Low band, Sat: B
Vertical, High band, Sat: B
Horizontal, Low band, Sat: B
Horizontal, High band, Sat: B

Frequently Asked Questions

What is a Monoblock LNB?

This design consists of two independent LNBs in a single housing and allows a user the potential of receiving the signal from two different satellites which are at slightly different orbital positions from a single dish installation. The switching between the satellites is achieved via the use of DiSEqC signals. Monoblock LNB's are available mostly for satellites with a fixed 2°/3°/4.3° or 6° spacing and the range covers Ku band Monoblock switch single, twin and quad outputs. For example where a 2° Monoblock LNB could be used is for the reception of 5°W and 7° W or with 3° distance for the reception of 13° E and 16° E.

Why It Exists: The Problem It Solves

Many TV channels and services are broadcast from clusters of satellites positioned close together in the sky (e.g., 6°, 4.3°, or 3° apart). Instead of installing two separate dishes or a heavy, expensive motorized dish to swing between them, a Monoblock LNBF provides a simple, fixed, and cost-effective solution.

How It Works

Two LNBs in One Housing: The "block" in Monoblock refers to the single, integrated unit. The two LNBs are not adjustable; their spacing is factory-set for a specific satellite orbital separation.
Fixed Angle (Skew): The unit is designed to be mounted centrally on the dish's arm. The skew (rotation) of the entire block is adjusted during installation to match the polarization angle for both satellites.
Dish Size Requirement: Because the dish's focal point is optimally aligned for the primary satellite, the secondary satellite is slightly "off-focus." Therefore, a larger-than-minimum dish size (often 80cm or larger in Europe) is usually recommended.
Connection: A Monoblock LNBF has two output cables (one for each satellite). These connect directly to a satellite receiver with two independent tuners or to a multi-switch to feed multiple receivers.

Common Uses

European Free-to-Air (FTA): The classic combo is Astra 19.2°E (German, French, international channels) and Hotbird 13.0°E (Italian, Middle Eastern, Eastern European channels). A 6° Monoblock is standard for this.
International Content: Popular in expatriate communities to receive channels from two nearby satellites from their home country.
Simultaneous Recording/Watching: Allows one tuner to record from a channel on Satellite A while watching a channel on Satellite B.

How to Choose the Right LNB

"How many satellites do I need?"

One satellite → Single/Twin/Quad LNB
Two nearby satellites → Monoblock (or motorized dish)

"How many receivers/TVs do I need to feed?"

One TV → Single LNB
Two TVs from one satellite → Twin LNB
3-4 TVs from one satellite → Quad LNB
Two TVs from two satellites → Monoblock Twin
