Place of Origin:
CHINA
Brand Name:
SETON
Certification:
CE, ISO, RoHS
Model Number:
Anti-5G Ku-Band Filter
High-Performance Anti-5G Interference · Precise Frequency Control · Safeguarding Pure Ku-Band Signals
With the continuous expansion of 5G networks in the sub-6GHz spectrum, while primary interference concerns remain in the C-band, Ku-band satellite communication systems also face increasingly complex electromagnetic environment challenges. High-frequency electronic equipment, adjacent band signals, and increasingly dense wireless communication infrastructure can all cause interference to sensitive Ku-band receiving systems.

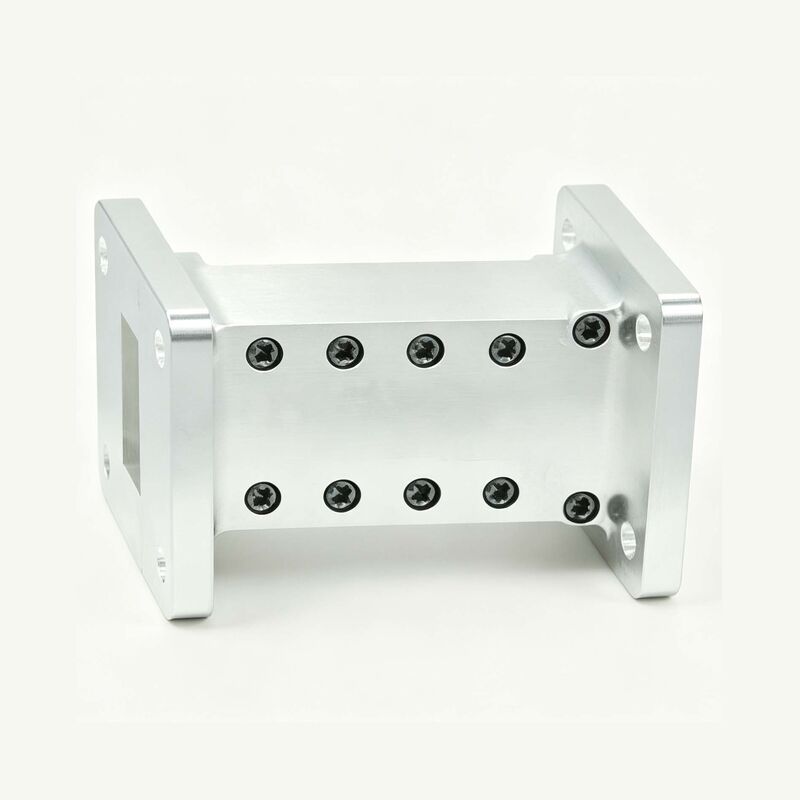

The Ku-Band 5G Filter is a high-performance bandpass filter specifically designed for Ku-band satellite communication systems. Installed between the satellite dish and LNB, it allows the 10.7-12.75GHz satellite band to pass through with ultra-low insertion loss, while providing up to 70dBc deep rejection of interference signals in the 13.75-14.5GHz transmit band – ensuring your Ku-band receiving system remains stable and reliable in complex electromagnetic environments.
 Deep Interference Rejection |
Ultra-Low Insertion Loss |
|---|---|
| Transmit band (13.75-14.5GHz) rejection depth: ≥70dBc Effectively filters out-of-band interference signals Prevents LNB saturation and signal distortion |
Passband (10.7-12.75GHz) insertion loss: ≤0.20dB (industry-leading) Satellite signals pass through with virtually no loss Preserves signal strength and picture quality |
| Easy Installation |
All-Weather Reliability |
|---|---|
| Installed on coaxial cable between dish and LNB Plug and play – no external power required No system configuration changes needed |
Operating Temperature: -40℃ ~ +60℃ Adapts to harsh outdoor environments Reliable operation in all weather |
| Full Ku-Band Coverage |
Standard Interface |
|---|---|
| Passband covers 10.7-12.75GHz full Ku-band Compatible with all Ku-band satellite receiving systems |
Input/Output Interface: WR75G/F Standard Ku-band waveguide interface Compatible with mainstream Ku-band LNBs and antenna systems |
| Parameter | Specification |
|---|---|
| Input Frequency (RF) | 10.7 ~ 12.75GHz |
| Insertion loss | 0.20dB [Max.] |
| Rejection (13.75 ~ 14.5GHz) | 70dBc [Min.] |
| VSWR | 2.2:1 |
| Operating Temperature | -40 ~ +60℃ |
| Output Connector | WR75G/F |
| Challenge | How This Filter Solves It |
|---|---|
| Transmit band interference degrades reception quality |
13.75-14.5GHz rejection depth ≥70dBc – effectively filters out-of-band interference, ensuring pure reception signals. |
| Complex electromagnetic environments cause LNB instability |
After filtering, the LNB receives cleaner signals for more stable operation and superior output quality. |
| Different installation scenarios require different band adaptation |
Passband covers 10.7-12.75GHz full Ku-band – compatible with all Ku-band satellite receiving systems. |
| Outdoor equipment must withstand harsh weather |
Operating temperature -40℃~+60℃ – adapts to all climates for reliable all-weather operation. |
| Application | Description |
|---|---|
| Ku-Band VSAT Communication Systems |
Provides interference protection for VSAT terminals – ensures stable and clean communication links |
| Ku-Band Satellite Broadcast Reception |
Ensures pure reception of satellite TV and broadcast signals – enhances picture quality |
| Enterprise Satellite Private Lines |
Protects enterprise-grade Ku-band satellite communication links from external interference |
| Dense Urban Electromagnetic Areas |
Dense wireless signals in urban environments – filter ensures stable Ku-band system operation |
| Critical Infrastructure |
Protection for Ku-band satellite communication links in utilities, oil & gas, and power sectors |
Q: Why does Ku-band still need a 5G filter?
A: While primary 5G interference concerns remain in the C-band, increasingly complex urban electromagnetic environments mean various wireless devices (including 5G base stations, microwave links, radar, etc.) can generate harmonics and out-of-band emissions that may interfere with Ku-band receiving systems. This filter provides professional out-of-band interference rejection, ensuring stable Ku-band system operation in complex electromagnetic environments.
Q: What does 0.20dB insertion loss mean?
A: 0.20dB is an industry-leading ultra-low loss level. For Ku-band signals, 0.20dB insertion loss represents only about 4.5% power loss – minimal impact on actual signal quality. Picture quality remains unaffected.
Q: How strong is 70dBc rejection capability?
A: 70dBc means interference band signals are attenuated to one ten-millionth (1/10,000,000) of their original power. This is very strong rejection capability, effectively filtering out-of-band interference signals.
Q: What frequency bands does this filter support?
A: Passband covers the 10.7-12.75GHz full Ku-band receive band, rejecting 13.75-14.5GHz transmit band interference. Compatible with all Ku-band satellite receiving systems.
Q: What is the operating temperature range?
A: -40℃ to +60℃ – suitable for most climate conditions, from cold northern winters to hot southern summers.
Q: What type of interface does it have?
A: WR75G/F waveguide interface – the standard Ku-band interface, compatible with mainstream Ku-band LNBs and antenna systems.
