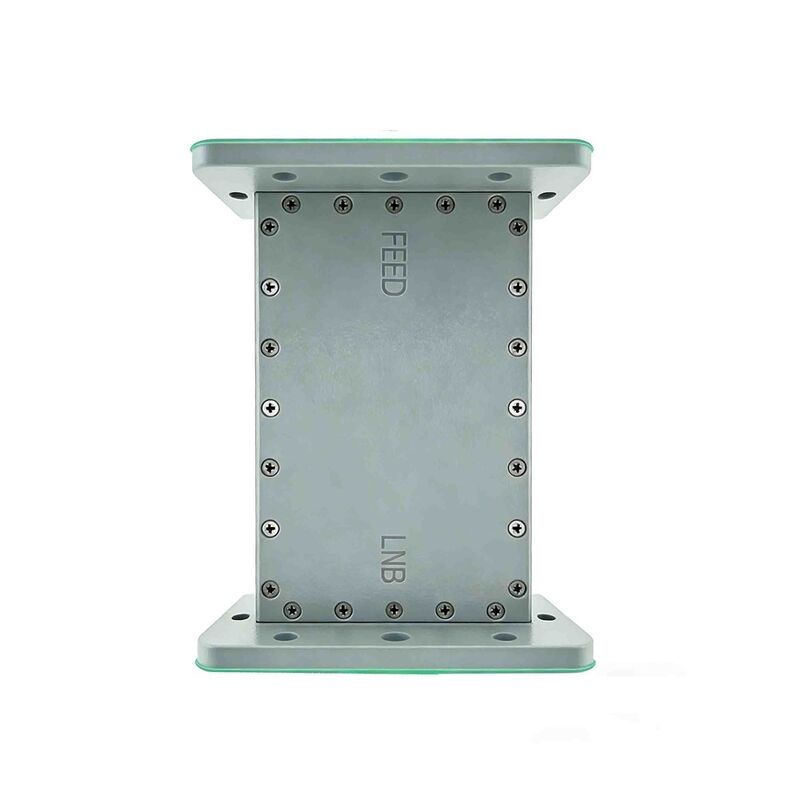

Name: LNB Protector / 5G Filter for C-Band (3.7-4.2GHz) - Compatible with VSAT and Satellite TV Systems
Brand: Chenzhou Seton Technology Co., Ltd
SKU: C-Band 5G Filter
Availability: InStock

Home > Products > TVRO LNBF >

LNB Protector / 5G Filter for C-Band (3.7-4.2GHz) - Compatible with VSAT and Satellite TV Systems

3.7-4.2GHz Bandpass C-Band 5G Filter

60dBc Out-of-band Rejection LNB Protector

0.45dB Insertion Loss VSAT Interference Filter

Place of Origin:

CHINA

Brand Name:

SETON

Certification:

CE, ISO, RoHS

Model Number:

C-Band 5G Filter

Chat Now

Request A Quote

Product Details

Input Frequency(RF):

3.7 ~ 4.2GHz (Customizable)

Insertion Loss:

0.45dB[Max.]

Out-of-band Rejection (Guard Band=100MHz):

60dBc[Min.]

Output Connector:

WR229G/F

Highlight:

3.7-4.2GHz Bandpass C-Band 5G Filter

60dBc Out-of-band Rejection LNB Protector

0.45dB Insertion Loss VSAT Interference Filter

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

CARTON

Delivery Time

30-35 days

Payment Terms

T/T,Western Union

Dual Satellite Monoblock LNBF Model ST-K212F - Professional Ku-Band LNB for 2-Satellite Reception

Chat Now

LNB Protector / 5G Filter for C-Band (3.7-4.2GHz) - Compatible with VSAT and Satellite TV Systems

Chat Now

ST-K24HA Universal Quad LNBF - Ku Band (10.7-12.75GHz) with 9.75/10.6GHz LO

Chat Now

Universal Twin LNBF for Ku-Band (10.7-12.75 GHz) - 0.7dB Noise Figure, Vertical & Horizontal Polarization

Chat Now

86-0735-8888458

huang@setontech.cn

Chat Now

Product Description

5G Interference Filter for C-Band VSAT - 3.7-4.2GHz Bandpass, Protects Satellite LNB

The C-Band 5G Filter provides essential protection for satellite communication systems against interference from nearby 5G signals. This anti-5G rejection filter is specifically designed to safeguard your VSAT equipment from signal saturation and loss.

Installation & Function

Satellite Dish → [C-Band 5G Filter] → LNB → Receiver

Installed between the satellite dish and LNB in the coaxial cable path, this filter rejects or heavily attenuates the 5G band while allowing the full 3.7-4.2 GHz satellite band to pass through unimpeded. This prevents strong nearby 5G signals from saturating the Low-Noise Block Downconverter (LNB) and causing signal degradation.

Key Features

LNB Frequency Range: 3.7~4.2 GHz (Customizable design available for different frequency requirements)
100 MHz Guard Band for enhanced signal isolation
Advanced 5G rejection technology

Technical Specifications

Parameter	Specification
Input Frequency (RF)	3.7 ~ 4.2 / 3.8 ~ 4.2 / 3.9 ~ 4.2 / 4.0 ~ 4.2 GHz
Insertion Loss	0.45 dB (Max.)
Out-of-band Rejection (Guard band=100MHz)	60 dBc (Min.)
VSWR	2.2:1
Operating Temperature	-40 ~ +60℃
Output Connector	WR229G/F

How This Bandpass Filter Differs from Notch Filters

Feature	Bandpass Filter	Notch/Reject Filter
Primary Function	Allows ONLY 3.7-4.2GHz through, blocks everything else	Allows everything EXCEPT 5G band
Rejection Approach	Rejects ALL frequencies outside passband	Targets specific 5G frequencies only
Protection Level	Higher - blocks multiple interference sources	Lower - only blocks 5G interference
Insertion Loss	Slightly higher (0.3-0.8 dB)	Typically lower (0.2-0.5 dB)
Cost	Higher	Lower

The 3.7-4.2 GHz bandpass filter represents the premium solution for protecting VSAT systems from 5G interference. While more expensive than simple notch filters, it provides:

Comprehensive protection against multiple interference sources
Preservation of full C-Band spectrum access
Professional-grade performance for critical communications
Future-proofing against evolving RF environment

For enterprise, maritime, aeronautical, and broadcast VSAT applications where reliability is paramount, this bandpass filter solution is often the recommended choice despite its higher cost, as it addresses both current 5G interference and potential future interference scenarios.
