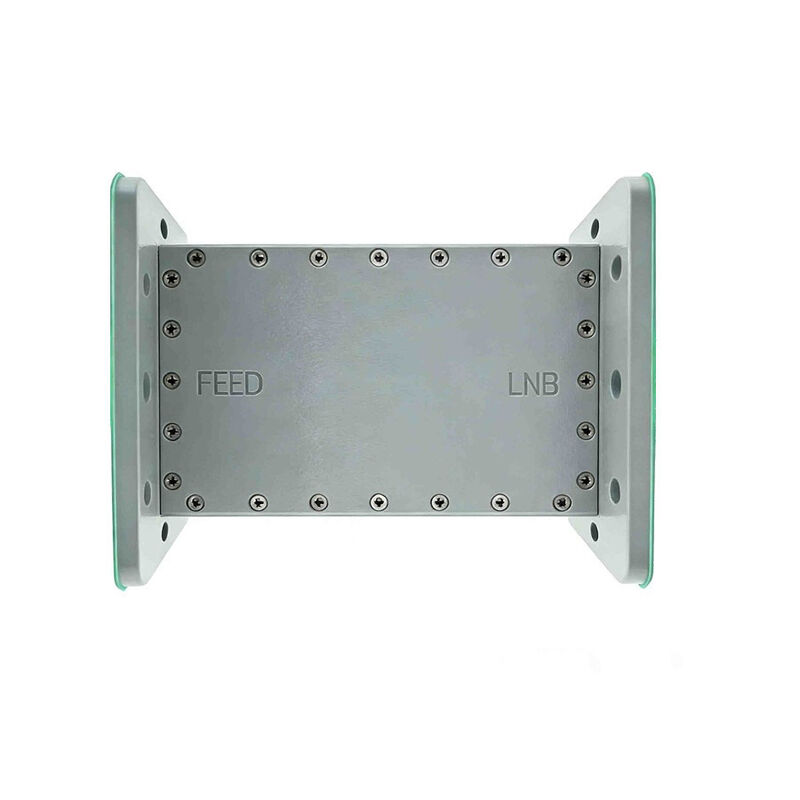

Name: C Band 5G Filter with 3.7 ~ 4.2GHz Input Frequency VSAT Systems Satellite dish LNB
Brand: Chenzhou Seton Technology Co., Ltd
SKU: C-Band 5G Filter
Availability: InStock

Home > Products > TVRO LNBF >

C Band 5G Filter with 3.7 ~ 4.2GHz Input Frequency VSAT Systems Satellite dish LNB

3.7 ~ 4.2GHz Input Frequency C Band 5G Filter

60dBc Out-of-band Rejection 5G Rejection Filter

0.45dB Insertion Loss VSAT System Filter

Place of Origin:

CHINA

Brand Name:

SETON

Certification:

CE, ISO, RoHS

Model Number:

C-Band 5G Filter

Chat Now

Request A Quote

Product Details

Input Frequency(RF):

3.7 ~ 4.2GHz (Customizable)

Insertion Loss:

0.45dB[Max.]

Out-of-band Rejection (Guard Band=100MHz):

60dBc[Min.]

Output Connector:

WR229G/F

Highlight:

3.7 ~ 4.2GHz Input Frequency C Band 5G Filter

60dBc Out-of-band Rejection 5G Rejection Filter

0.45dB Insertion Loss VSAT System Filter

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

CARTON

Delivery Time

30-35 days

Payment Terms

T/T,Western Union

Ku Band Universal Quad LNBF ST-K24HA 10.7 - 12.75GHz With 9.75 / 10.6GHz LO

Chat Now

KU Band Universal Twin LNBF ST-K22FA 10.7 - 12.75GHz Input Vertical Horizontal Polarization

Chat Now

Video

Ku-Band Universal Single LNBF PLL ST-K21WN with 10.7GHz ~ 12.75GHz Range, 0.7dB Noise Figure, and Vertical/Horizontal Polarization

Chat Now

Video

10.7 - 12.75GHz KU BAND Universal LNB ST-K22S Universal Twin LNB

Chat Now

86-0735-8888458

huang@setontech.cn

Chat Now

Product Description

C BAND 5G Filter for VSAT Systems

The C BAND 5G Filter provides essential protection for satellite communication systems against interference from nearby 5G signals. This anti-5G rejection filter is specifically designed to safeguard your VSAT equipment from signal saturation and loss.

Installation & Function

Satellite Dish → [C-Band 5G Filter] → LNB → Receiver

Installed between the satellite dish and LNB in the coaxial cable path, this filter rejects or heavily attenuates the 5G band while allowing the full 3.7-4.2 GHz satellite band to pass through unimpeded. This prevents strong nearby 5G signals from saturating the Low-Noise Block Downconverter (LNB) and causing signal degradation.

Key Features

LNB Frequency Range: 3.7~4.2 GHz (Customizable design available for different frequency requirements)
100 MHz Guard Band for enhanced signal isolation
Advanced 5G rejection technology

Technical Specifications

Parameter	Specification
Input Frequency (RF)	3.7 ~ 4.2 / 3.8 ~ 4.2 / 3.9 ~ 4.2 / 4.0 ~ 4.2 GHz
Insertion Loss	0.45 dB (Max.)
Out-of-band Rejection (Guard band=100MHz)	60 dBc (Min.)
VSWR	2.2:1
Operating Temperature	-40 ~ +60℃
Output Connector	WR229G/F
