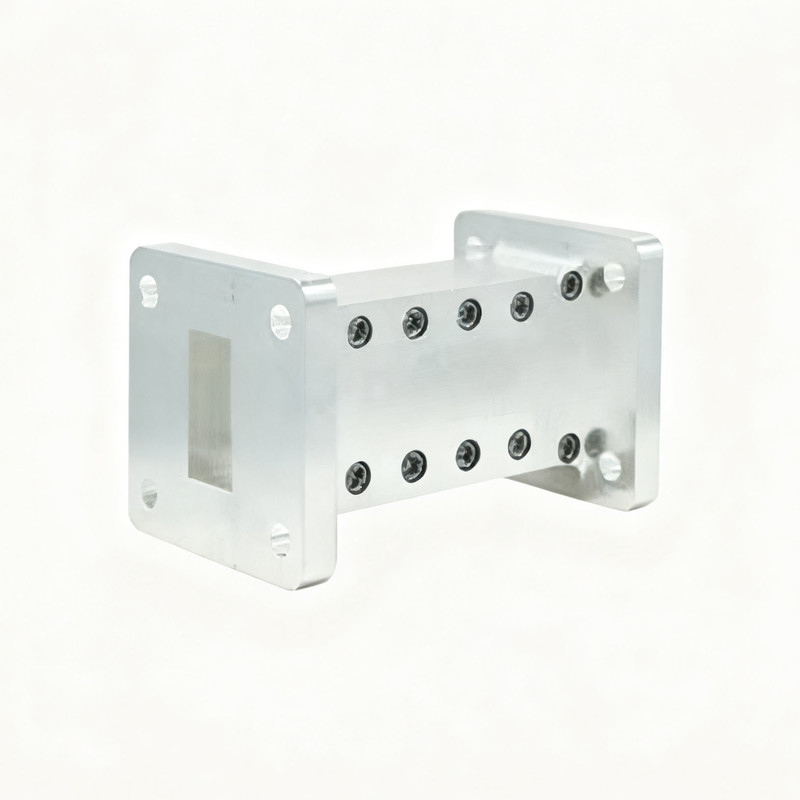

Name: KU Band 5G LNB Filter With 0.20dB Insertion Loss And 70dBc Rejection 2.2:1 VSWR
Brand: Chenzhou Seton Technology Co., Ltd
SKU: Anti-5G Ku-Band Filter
Availability: InStock

Home > Products > TVRO LNBF >

KU Band 5G LNB Filter With 0.20dB Insertion Loss And 70dBc Rejection 2.2:1 VSWR

KU Band 5G LNB Filter

5G LNB Filter 12.75GHz

KU Band Filter 70dBc

Place of Origin:

CHINA

Brand Name:

SETON

Certification:

CE, ISO, RoHS

Model Number:

Anti-5G Ku-Band Filter

Chat Now

Request A Quote

Product Details

Input Frequency(RF):

10.7 ~ 12.75GHz

Insertion Loss:

0.20dB[Max.]

Rejection(13.75 ~ 14.5GHz):

70dBc[Min.]

VSWR:

2.2:1

Operating Temperature:

-40 ~ +60℃

Output Connector:

WR75G/F

Highlight:

KU Band 5G LNB Filter

5G LNB Filter 12.75GHz

KU Band Filter 70dBc

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

CARTON

Delivery Time

30-35 days

Payment Terms

T/T,Western Union

Universal Octo LNBF KU Band ST-K28H 10.7 - 12.75GHz Input Frequency

Chat Now

ST-K22Z KU BAND Universal LNBF Dual LO Frequency 9.75GHz 10.6GHz

Chat Now

ST-K21WD KU Band Single LNBF Universal 10.7 - 12.75GHz

Chat Now

Ku Band Universal Quad LNBF ST-K24HA 10.7 - 12.75GHz With 9.75 / 10.6GHz LO

Chat Now

86-0735-8888458

huang@setontech.cn

Chat Now

Product Description

Ku-Band 5G Filter

High-performance Ku-BAND 5G Filter with superior Anti-5G rejection capabilities, designed for precise frequency control in 5G applications.

Technical Specifications

Parameter	Specification
Input Frequency (RF)	10.7 ~ 12.75GHz
Insertion loss	0.20dB [Max.]
Rejection (13.75 ~ 14.5GHz)	70dBc [Min.]
VSWR	2.2:1
Operating Temperature	-40 ~ +60℃
Output Connector	WR75G/F
