Place of Origin:
CHINA
Brand Name:
SETON
Certification:
CE, ISO, RoHS
Model Number:

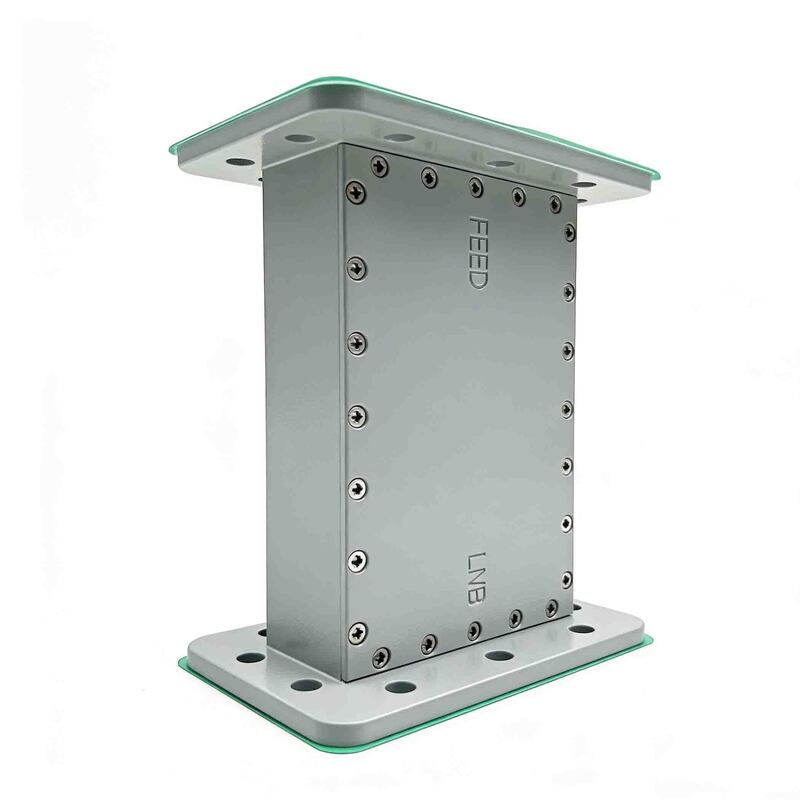

C-Band 5G Filter
With the dense deployment of 5G communication networks near the C-band spectrum, strong 5G signals in the 3.3-3.6GHz band pose a serious interference threat to C-band satellite reception systems (3.7-4.2GHz). These 5G signals can cause the LNB (Low-Noise Block Downconverter) to saturate, resulting in signal loss, quality degradation, and even communication interruption.
The C-Band 5G Filter is specifically designed to address this challenge. Installed on the coaxial cable between the satellite dish and LNB, it effectively rejects 5G band signals while allowing the full 3.7-4.2GHz satellite band to pass through with minimal loss – ensuring your VSAT system remains stable and reliable in the 5G era.
 High-Efficiency 5G Rejection |
Satellite Signal Passes Through |
|---|---|
| 5G band (3.3-3.6GHz) rejection depth: ≥60dBc (100MHz guard band) Effectively prevents LNB saturation Ensures stable satellite reception system operation |
In-band (3.7-4.2GHz) insertion loss: ≤0.45dB (extremely low) Satellite signals pass through without attenuation No impact on existing signal quality |
| Easy Installation |
All-Weather Reliability |
|---|---|
| Installed on coaxial cable between dish and LNB Plug and play – no external power required No system configuration changes needed |
Operating Temperature: -40℃ ~ +60℃ Adapts to harsh outdoor environments Reliable operation in all weather |
| Flexible Configuration |
Standard Interface |
|---|---|
| Multiple passband frequency configurations available: 3.7-4.2 / 3.8-4.2 / 3.9-4.2 / 4.0-4.2 GHz Custom designs available for different frequency requirements |
Input/Output Interface: WR229G/F Standard C-band waveguide interface Compatible with mainstream C-band LNBs and antenna systems |
| Parameter | Specification |
|---|---|
| Input Frequency (RF) | 3.7 ~ 4.2 / 3.8 ~ 4.2 / 3.9 ~ 4.2 / 4.0 ~ 4.2 GHz |
| Insertion Loss | 0.45 dB (Max.) |
| Out-of-band Rejection (Guard band=100MHz) | 60 dBc (Min.) |
| VSWR | 2.2:1 |
| Operating Temperature | -40 ~ +60℃ |
| Output Connector | WR229G/F |
| Challenge | How This Filter Solves It |
|---|---|
| Strong nearby 5G base station signals cause LNB saturation |
5G signal rejection depth ≥60dBc – effectively attenuates strong interference, preventing LNB saturation. |
| Strong 5G interference degrades satellite signal quality |
Satellite passband (3.7-4.2GHz) insertion loss only ≤0.45dB – signal passes through without attenuation, preserving picture quality. |
| Need to adapt to VSAT systems with different frequency configurations |
Supports multiple passband configurations (3.7-4.2/3.8-4.2/3.9-4.2/4.0-4.2GHz) – customizable per requirements. |
| Outdoor equipment must withstand harsh weather |
Operating temperature -40℃~+60℃ – adapts to all climates for reliable all-weather operation. |
| Application | Description |
|---|---|
| VSAT Satellite Communication Systems |
Provides 5G interference protection for VSAT terminals – ensures stable communication links |
| Enterprise Satellite Private Lines |
Protects enterprise-grade satellite communication links from 5G base station interference |
| Coastal / Urban Areas |
Dense 5G base station deployment areas – essential protection for C-band satellite systems |
| Critical Infrastructure |
Protection for backup or emergency satellite communication links in utilities, oil & gas, and power sectors |
| Broadcast / TV Signal Reception |
Ensures pure C-band satellite TV signal reception |
| Passband Configuration | Application Scenario |
|---|---|
| 3.7 ~ 4.2 GHz | Standard C-band – globally compatible configuration |
| 3.8 ~ 4.2 GHz | C-band allocation for specific regions |
| 3.9 ~ 4.2 GHz | Specific frequency band requirements |
| 4.0 ~ 4.2 GHz | Extended frequency band requirements |
| Custom Frequency | Please inquire for custom solutions |
Q: Why do I need a C-Band 5G Filter?
A: 5G networks deploy in the 3.3-3.6GHz band, adjacent to the C-band satellite reception band (3.7-4.2GHz). Strong 5G signals can cause LNB saturation, leading to signal quality degradation and even communication interruption. This filter removes 5G interference before it enters the LNB, effectively protecting your satellite system.
Q: What does 0.45dB insertion loss mean?
A: 0.45dB is an extremely low loss level. For a 3.7-4.2GHz signal, 0.45dB insertion loss represents only about 10% power loss – minimal impact on actual signal quality. Picture quality remains unaffected.
Q: How strong is 60dBc rejection capability?
A: 60dBc means 5G band signals are attenuated to one millionth (1/1,000,000) of their original power. This is very strong rejection capability, effectively protecting the LNB from saturation by strong 5G signals.
Q: What frequency configurations does this filter support?
A: Standard versions support multiple passband configurations including 3.7-4.2 / 3.8-4.2 / 3.9-4.2 / 4.0-4.2 GHz. Custom designs for other frequencies are also available upon request.
Q: What is the operating temperature range?
A: -40℃ to +60℃ – suitable for most climate conditions, from cold northern winters to hot southern summers.
Q: What type of interface does it have?
A: WR229G/F waveguide interface – the standard C-band interface, compatible with mainstream C-band LNBs and antenna systems.
