Place of Origin:
China
Brand Name:
SETON
Model Number:
ST-Ku90
| Parameter | Specification |
|---|---|

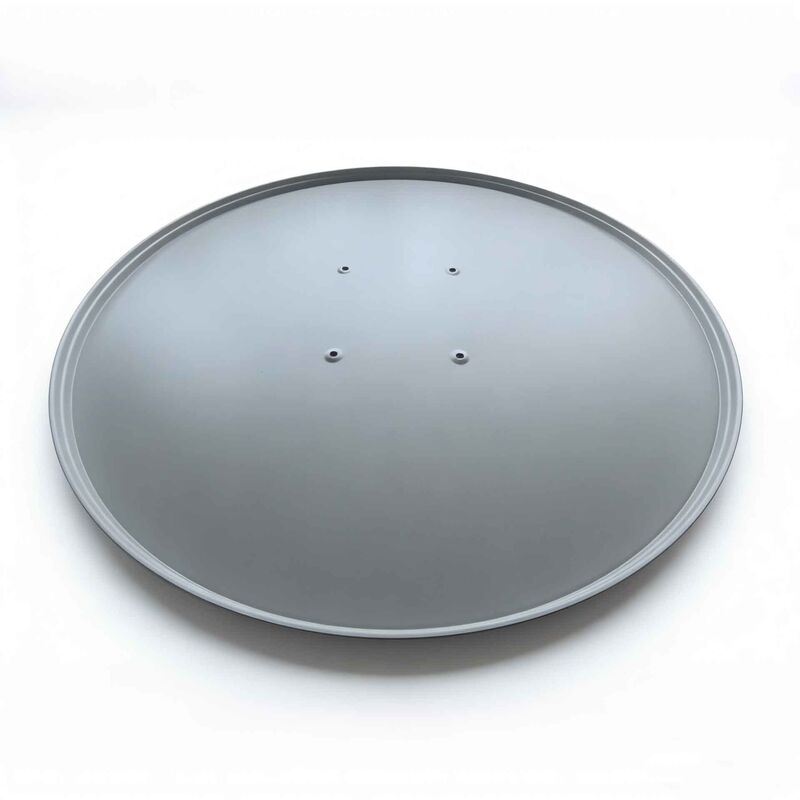

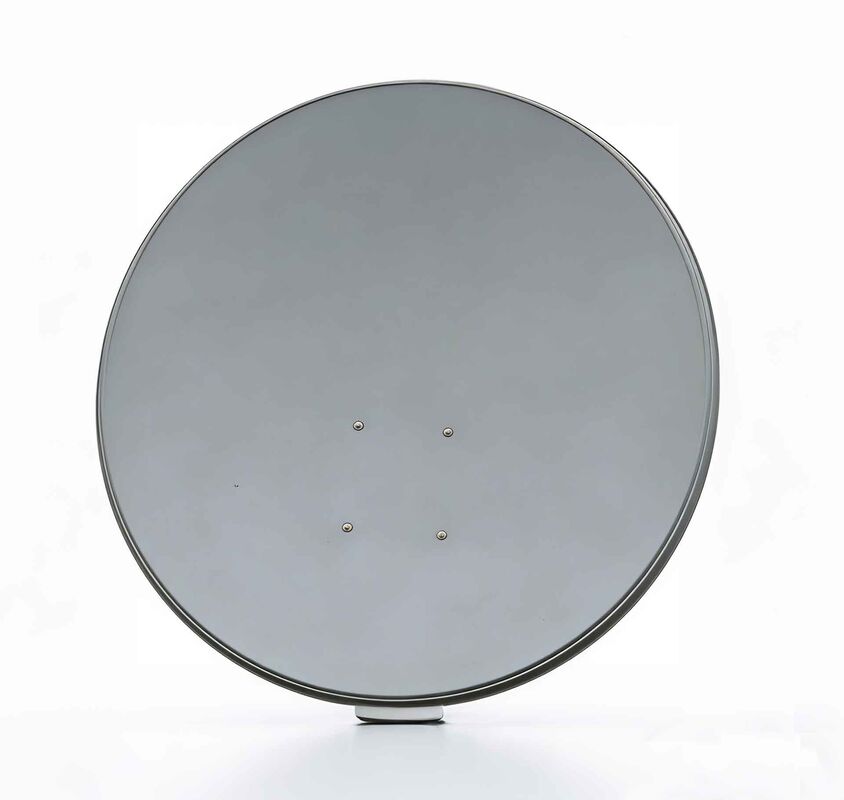

| Antenna Type | KU 90cm OFFSET Antenna |
| Antenna Color | Light gray (Customizable Design) |
| Frequency Range | 10.7~12.75 GHz |
| Gain | ≥40.32dBi |
| F/D | a=900mm, b=990mm |
| VSWR Output | 0.6 |
| Focal Length | f=540 |
| Reflector Thickness | 0.7mm (Before powdering) |
| LNBF Inner Size | Φ40±1 |
| Mast Pole Outer Diameter | Φ42mm |
| Mast Pole Thickness | 1.4mm |
| Elevation Angle | 5~85° |
| Working Environment Temperature | -50°~70℃ |
| Working Environmental Humidity | 5~95% |
| Azimuth | 0~360° |
| Scale Indication | 10~90° |
| Installation Method | L wall ground multi-purpose type |
| Anti-wind Scale when Dish Fixed | Working properly under 8 level wind. Precision decrease under 10 level wind. When wind grows to grade 12, dish is not destroyed when pointing to the sky |
| Surface Treatment of Fasteners | Color-zinc |
| Color-zinc Fasteners Salt Spray Test | ≥24h |
| All Materials | Galvanized steel |
| Feedhorn Supporter Materials | 19×19×1 rectangular steel tube |
