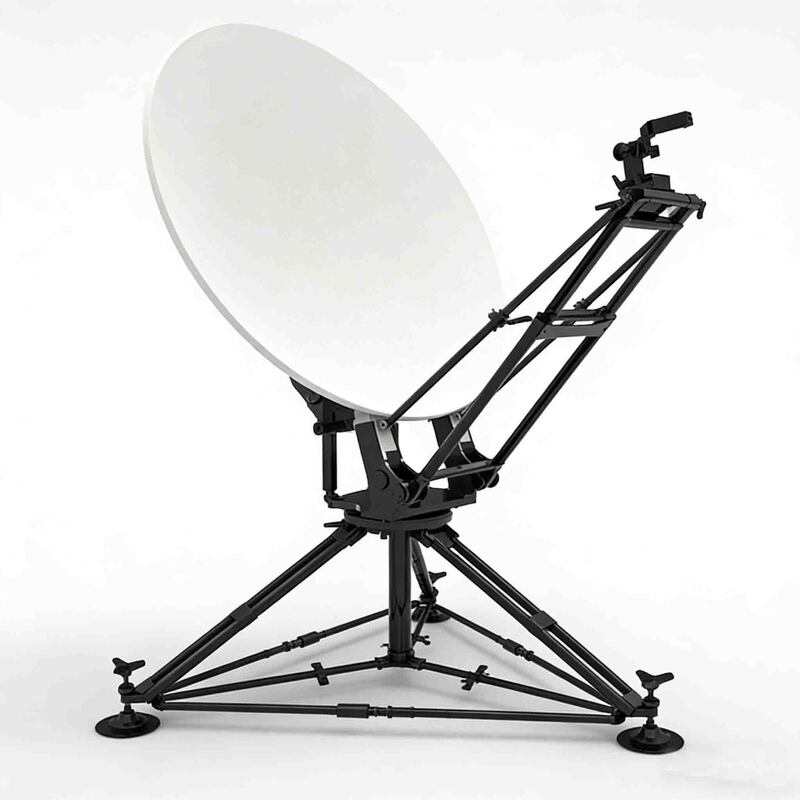

Name: 1.8m Carbon Fiber Flyaway Antenna with Manual Tripod Mount for C/X/Ku/Ka-Band Satellite Communications
Brand: Chenzhou Seton Technology Co., Ltd
SKU: Flyaway Antenna
Availability: InStock

Home > Products > Rx Antenna >

1.8m Carbon Fiber Flyaway Antenna with Manual Tripod Mount for C/X/Ku/Ka-Band Satellite Communications

1.8m Carbon Fiber Reflector Flyaway Antenna

C/X/Ku/Ka-Band Compatible Satellite Communication Antenna

Manual Tripod Mount VSAT Antenna

Place of Origin:

China

Brand Name:

SETON

Model Number:

Flyaway Antenna

Chat Now

Request A Quote

Product Details

Antenna Diameter:

1.8m

Antenna Type:

Single Offset

Reflector Construction:

Carbon Fiber

Surface Accuracy (R.M.S):

0.3mm

Band Support:

Compatible With C, X, Ku, And Ka Frequency Bands

Weight:

98KG

Highlight:

1.8m Carbon Fiber Reflector Flyaway Antenna

C/X/Ku/Ka-Band Compatible Satellite Communication Antenna

Manual Tripod Mount VSAT Antenna

Payment & Shipping Terms

Packaging Details

CARTON/ PALLET/ CASE

Delivery Time

30-35 days

Payment Terms

T/T,Western Union

1.8m Carbon Fiber Manual Offset Flyaway VSAT Antenna - 98kg Tripod Type for Rapid Deployment

Chat Now

Galvanized Steel 60cm Ku-Band Dish - 10.7-12.75GHz, Heavy-Duty for Satellite Communication

Chat Now

75cm Ku-Band Satellite Antenna - 10.7-12.75GHz, Galvanized Steel Construction for VSAT/Communication

Chat Now

90cm Ku Band Antenna for Satellite Communication with 10.7~12.75 GHz Frequency Range and Galvanized Steel Construction

Chat Now

86-0735-8888458

huang@setontech.cn

Chat Now

Product Description

1.8m Carbon Fiber Flyaway Antenna | C/X/Ku/Ka-Band | Manual Tripod for Satellite Communications

The 1.8M Carbon Fiber Manual Offset Flyaway Antenna is a high-performance, ultra-portable satellite communication solution engineered for rapid deployment in mission-critical environments. Featuring a lightweight carbon fiber reflector and sturdy tripod mount, this antenna delivers exceptional signal accuracy and reliability for professionals who need to establish communication links anytime, anywhere.

Engineered for Field Performance

Traditional satellite antennas present a compromise between portability and performance. The 1.8M Carbon Fiber Manual Offset Flyaway Antenna resolves this conflict through innovative design:

Carbon Fiber Construction: Revolutionary weight reduction without compromising structural strength
Tool-Free Rapid Deployment: No wrenches or specialized training required for assembly
Multi-Band Compatibility: Single antenna covering C, X, Ku, and Ka frequency bands
Tripod Stability: Optimal balance between stability and portability for field operations

Applications

Emergency Response & Disaster Relief

On-site information gathering for natural disasters, emergency rescue operations, and public events

Critical Infrastructure & National Security

Deployed in military, government, oil & gas, electric power, and financial sectors

Remote & Rural Connectivity

Communication coverage for areas beyond terrestrial network reach

Field Operations

Ideal for geological exploration, military exercises, police tactics, and news broadcasting

Technical Specifications

Electrical Specifications

Operation Frequency (GHz)	KU Band		C Band
Type	CFM 180
Operation Frequency (GHz)	Receive: 10.7-12.75	Transmit: 13.75-14.5	Receive: 3.625-4.2	Transmit: 5.85-6.425
Typical Gain (dBi)	44.8@12GHz	46.2@14GHz	35.7@4GHz	39.2@6GHz
Polarization	Linear		Linear
XPD on Axis (dB)	33dB		33dB
Power Handling Capability	200W		400W
Feed Interface	WR75		CPR229 / CPR137
Tx/Rx Isolation	80dB
Radiation Pattern	ITU-R.S580-5

Mechanical Specifications

Antenna Diameter	1.8m
Antenna Type	Single Offset
Reflector Construction	Carbon Fiber
Pointing Mode	Manual
Azimuth Travel	360°
Elevation Travel	0 to 90°
POL Travel	±95°
Mount Type	Elevation over azimuth
Surface Accuracy (R.M.S)	0.3mm
Weight	98KG
Operation Temperature	-40 to +60℃
Wind Loading	Operating: 40Km/h gusting to 72Km/h Survival: 96Km/h with ties down
Relative Humidity	0%-100%

Key Features

Lightweight High-Precision Carbon Fiber Reflector: Advanced carbon fiber construction with surface accuracy (R.M.S ≤ 0.3mm) for high-efficiency signal transmission
Multi-Band Compatibility: Supports C, X, Ku, and Ka frequency bands for maximum flexibility
Tool-Free Rapid Deployment: Quick and intuitive assembly without specialized training or tools
Advanced Ka-Band Ready: Compact, robust design for fast and reliable broadband communications
Rugged Field-Ready Design: Built for challenging outdoor environments with reliable performance
