Name: ST-K11G FSS LNB KU BAND FSS System High Gain Low Noise WR75
Brand: Chenzhou Seton Technology Co., Ltd
SKU: KU WR75 ST-K11G
Availability: InStock

Home > Products > FSS LNB >

ST-K11G FSS LNB KU BAND FSS System High Gain Low Noise WR75

FSS LNB KU BAND

FSS LNB High Gain

LNB FSS System Low Noise

Place of Origin:

China

Brand Name:

SETON

Model Number:

KU WR75 ST-K11G

Chat Now

Request A Quote

Product Details

Gain:

58~68dB/ 63dB (Typ.)

Noise Figure:

0.5 DB (Typ.) 0.8dB (Max.)

L.O. Frequency:

9.75 GHz/ 10 GHz/ 10.6 GHz/ 10.75 GHz/ 11.25 GHz/ 11.3 GHz, Etc.

L.O. Stability:

±50KHz

Phase Noise:

-70dBc@1KHz; -80@10KHz; -90dBc@100KHz

Guard Band:

100MHz

5G Power Level:

-30dBm

5G IMT:

3.3~3.6GHz

Highlight:

FSS LNB KU BAND

FSS LNB High Gain

LNB FSS System Low Noise

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

CARTON

Delivery Time

30-35 days

Payment Terms

T/T,Western Union

Supply Ability

15 million pieces

KU Band FSS LNB ST-K24Q Universal QUAD LNB With 0.7dB Noise Figure 58 - 68dB Conversion Gain

Chat Now

FSS LNB System OMT Feedhorn With 1.2:1 VSWR 3700 - 4200MHz Input Frequency Range

Chat Now

C BAND FSS Satellite LNB ST-C11G IP67 Waterproof 5.15GHz LO Frequency

Chat Now

C Band FSS LNB ST-C11E Satellite LNB Rejection 5G 950 MHz - 1450 MHz Output Frequency

Chat Now

86-0735-8888458

huang@setontech.cn

Chat Now

Product Description

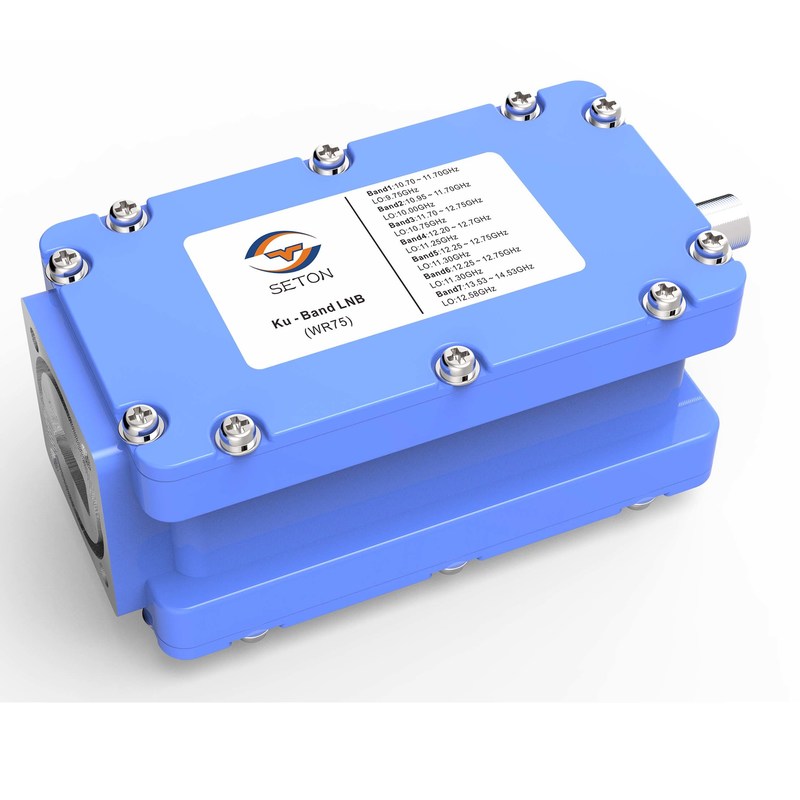

KU-BAND FSS System & VSAT System High Gain Low Noise WR75 LNB ST-K11G

VSAT & FSS SYSTEM LNB

LNB ST-K11G

KU-BAND FSS System & VSAT System High Gain Low Noise WR75 LNB:
LNB: 9.84~15 GHz (Customizable design according to different frequency)
LO: 9.75 GHz/ 10 GHz/ 10.6 GHz/ 10.75 GHz/ 11.25 GHz/ 11.3 GHz, etc.

Technical Specification

Noise Figure	0.5 dB (Typ.) 0.8dB (Max.)
L.O. Stability	±50KHz
Phase Noise	-70dBc@1KHz; -80@10KHz; -90dBc@100KHz
Input VSWR	2.2:1
Output VSWR	2.2:1
Gain	58~68dB/ 63dB (Typ.)
Gain Flatness(over full band)	5dBp-p (Max.)
Output P1dB	+5dBm
DC Power	+12VDC~+24VDC
Tone	22KHz±4
Current	250mA
Input Connection	WR75
Output Connection	F(75Ω)/N(50Ω)
Anti-Thunder	4KV(Min.)/6KV(Max.)
Rejection	KU-TI
Operating Temperature	-30℃~+60℃
Storage Temperature	-40℃~+70℃

Frequency Bands Available (Customizable)

	Band 1	Band 2	Band 3	Band 4
Frequency Band(GHz)	10.7~11.7	10.95~11.7	11.7~12.75	12.25~12.75
L.O. Frequency(GHz)	9.75	10.00	10.75	11.30
IF Frequency(MHz)	950~1950	950~1700	950~2000	950~1450

Frequently Asked Questions

Q: What is an ANTI-5G WR75 LNB?

A: The transmit way by Matrix waveguide, LNB itself has anti-5G IMT @3.5G Band interference capability.

Q: What is a Strong Rejection-5G WR75 LNB?

A: WR75 LNB directly input 5G IMT@3.5GHz frequency from transmitting waveguide, Guard band=100MHz, 5G Power Level: -30dBm, WR75 LNB output Gain(in-band) no intermodulation, Output Gain no saturation. WR75 LNB itself has strong anti-5G IMT@3.5GHz frequency capability, because with un-linking the mechanical filter outside, WR75 LNB built-in high performance out-band rejection passive filter.

Q: What is High Gain Low Noise?

A: WR75 LNB High Gain: 63dB (Typ.), which can receive week intensity signal; Low Noise: 0.8dB(Max.), which can guarantee system better C/N value.
