Place of Origin:
China
Brand Name:
SETON
Model Number:

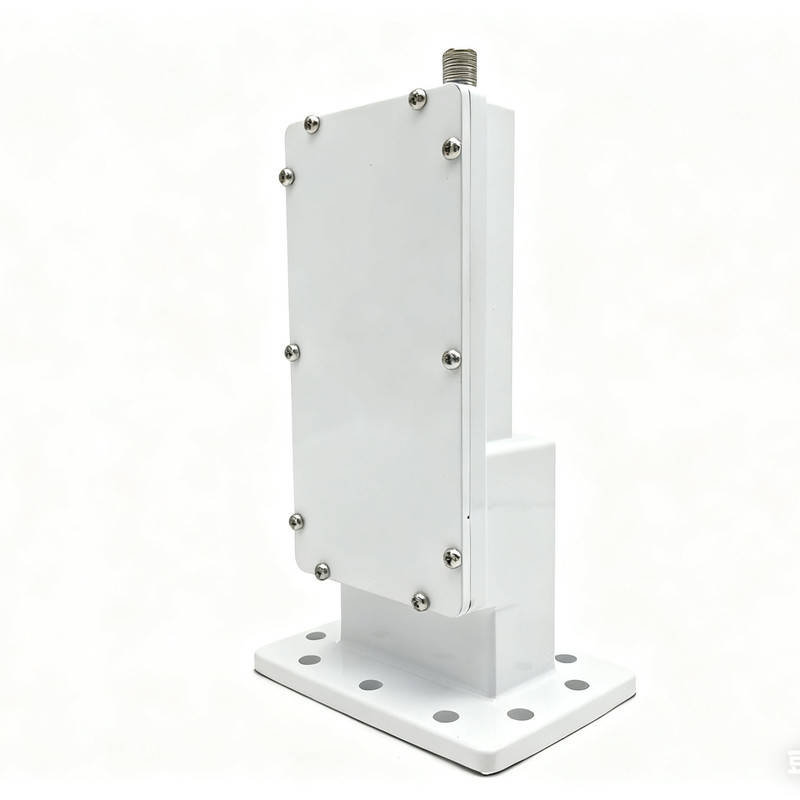

ST-C11G
| No. | Item | Specification | Unit |
|---|---|---|---|
| C-1 | I/P Frequency Range | 3.7 ~ 4.2/3.8 ~ 4.2/3.9 ~ 4.2/4.0 ~ 4.2 (BW500MHz optional) | GHz |
| C-2 | O/P Frequency Range | 950 ~ 1450 | MHz |
| C-3 | Noise Figure | 30[Max.] / 17[Typ.] | °K |
| C-4 | LO Frequency | 5.15 | GHz |
| C-5 | LO Stability | ±100(-30℃ ~ +60℃) | kHz |
| C-6 | Input power Level ability | -30@3300 ~ 3600MHz | dBm |
| C-7 | LNB out of band Rejection@≤3600MHz | 60[Min.] | dBc |
| C-8 | LO Phase Noise | -80[Max.] / @10KHz | dBc |
| C-9 | O/P1dB Compression Point(P1dB) | +5[Typ.] | dB |
| C-10 | Gain | 58[Min.] | dB |
| C-11 | Gain Flatness | ±3 | dB |
| C-12 | Gain Variation | ±0.75/ 36MHz | dB/MHz |
| C-13 | DC-Power | 200[Max.] / 10 ~ 24V | mA |
| C-14 | Output impedance | 75 | Ω/F-Type |
| C-15 | Operating temperature range | -30 ~ +60 | °C |
| C-16 | Storage temperature range | -40 ~ +70 | °C |
| C-17 | Relative humidity | 5% ~ 95% | / |
| C-18 | Barometric pressure | 55 ~ 106 | kPa |
| C-19 | Waterproof Rate | IP67 | / |
