Place of Origin:
China
Brand Name:
SETON
Model Number:
ST-Ku75
| Specification | Value |
|---|---|

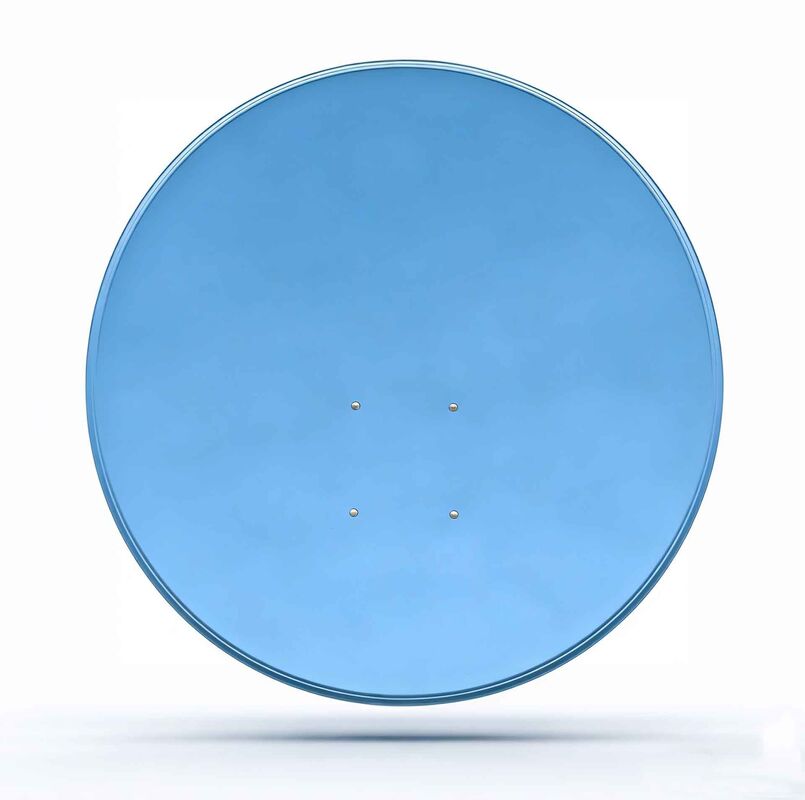

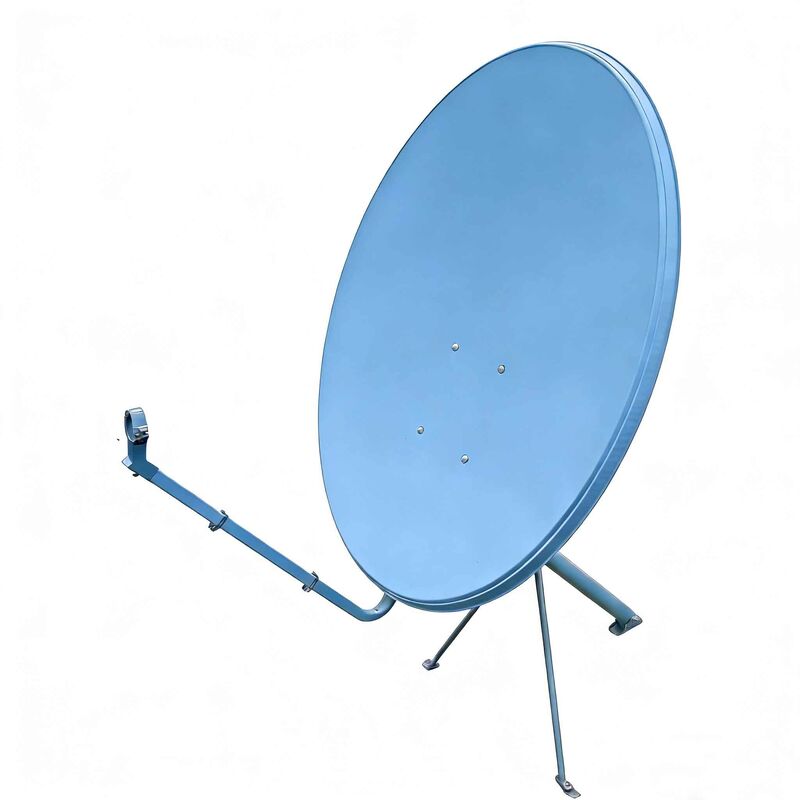

| Antenna Type | KU 75cm OFFSET Antenna |
| Antenna Color | Light Gray |
| Frequency Range | 10.7~12.75 GHz |
| Gain | ≥38.52dBi |
| F/D | a=750mm, b=825mm |
| VSWR Output | 0.6±0.02 |
| Focal Length | f=492 |
| Reflector Thickness (Before powdering) | 0.6mm |
| LNBF Inner Size | Φ40±1 |
| Mast Pole Outer Diameter | Φ42mm |
| Mast Pole Thickness | 1.4mm |
| Elevation Angle | 5~85° |
| Working Environment Temperature | -50°~70℃ |
| Working Environmental Humidity | 5~95% |
| Azimuth | 0~360° |
| Scale Indication | 30~90° |
| Installation Method | L wall ground multi-purpose type |
| Anti-wind Scale when Dish Fixed | Working properly under 8 level wind Precision decrease under 10 level wind Dish remains intact at grade 12 wind when pointing to the sky |
| Surface Treatment of Fasteners | Dacromet |
| Color-zinc Fasteners Salt Spray Test | ≥24h |
| All Materials | Galvanized Steel |
| Feedhorn Supporter Materials | 20×20×1 rectangular steel tube |
