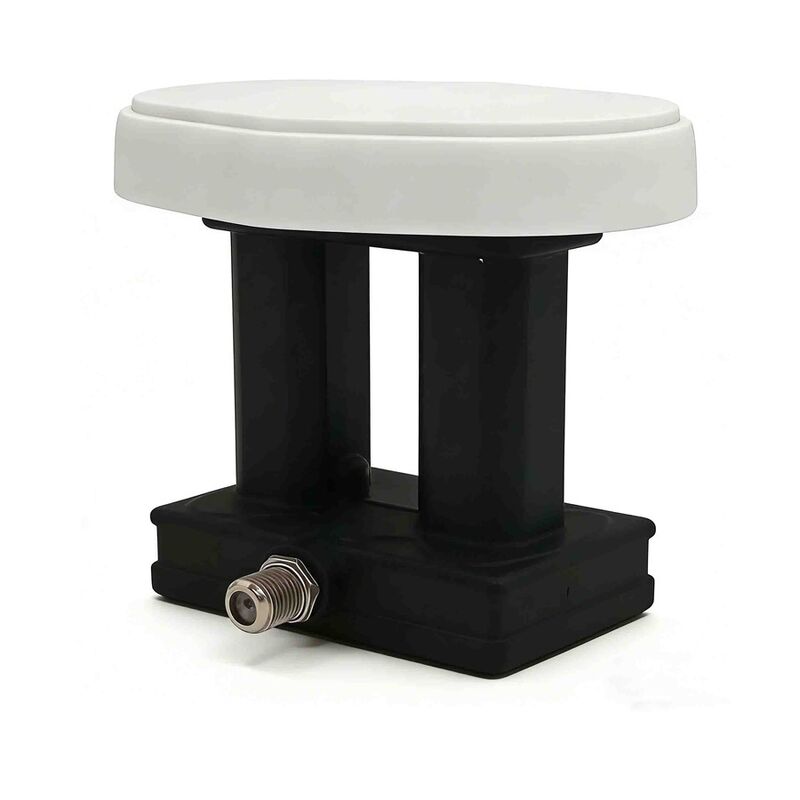

Name: Ku-Band Monoblock LNBF with 10.7-12.75GHz Frequency Range, 58-68dB Gain, and Fixed 4°-6° Spacing for Dual Satellite Reception
Brand: Chenzhou Seton Technology Co., Ltd
SKU: ST-K212F
Availability: InStock

ホーム > 製品 > TVRO LNBF >

Ku-Band Monoblock LNBF with 10.7-12.75GHz Frequency Range, 58-68dB Gain, and Fixed 4°-6° Spacing for Dual Satellite Reception

10.7-12.75GHz Ku-Band Monoblock LNBF

58-68dB Gain Ku-Band LNBF

Fixed 4°-6° Spacing Dual Satellite LNB

起源の場所:

中国

ブランド名:

SETON

証明:

CE, ISO

モデル番号:

ST-K212F

今雑談しなさい

引用を要求しなさい

製品詳細

入力周波数範囲（ローバンド）:

10.7〜11.7GHz

入力周波数範囲（ハイバンド）:

11.7〜12.75GHz

出力周波数範囲（ローバンド）:

950〜1950MHz

出力周波数範囲（ハイバンド）:

1100〜2150MHz

低帯域LO周波数:

9.75GHz

高帯域LO周波数:

10.6GHz

雑音指数:

0.7dB(標準)/1.0dB(最大)

コンバージョンゲイン:

58db〜68db

ハイライト:

10.7-12.75GHz Ku-Band Monoblock LNBF

58-68dB Gain Ku-Band LNBF

Fixed 4°-6° Spacing Dual Satellite LNB

支払及び船積みの言葉

最小注文数量

500個

パッケージの詳細

カートン

受渡し時間

30～35日

支払条件

T/T、ウェスタンユニオン

供給の能力

1,500万個

Ku-Band Universal Quad LNB 4 Output ST-K24HA Satellite Receiver for Multiroom TV Freesat PVR

今雑談しなさい

Monoblock Quad LNB Ku-Band 8 Outputs Dual Satellite Astra Hotbird 4K 4TV

今雑談しなさい

Monoblock Twin LNB Ku-Band 4 Outputs Dual Satellite LNBF for Astra/Hotbird

今雑談しなさい

Ku-Band Monoblock LNBF with 10.7-12.75GHz Frequency Range, 58-68dB Gain, and Fixed 4°-6° Spacing for Dual Satellite Reception

今雑談しなさい

送信

86-0735-8888458

huang@setontech.cn

今雑談しなさい

製品の説明

Innovative Dual-Satellite Reception Technology | Professional-Grade Monoblock Ku-Band LNBF

Model ST-K212F

One LNB, Two Satellites - A New Era in Satellite TV Reception

Tired of installing two separate dishes to receive programs from different satellite positions? The traditional approach consumes valuable space, involves high costs, requires complex installation, and compromises property aesthetics. The Monoblock Dual-Satellite Integrated LNBF provides the perfect solution!

What is a Monoblock LNBF?

A Monoblock LNBF features an innovative design that integrates two independent LNBs within a single housing, enabling simultaneous signal reception from two different satellite positions using just one dish. Whether you need programming from 13°E and 16°E, or content from 5°W and 7°W, Monoblock handles it all with ease.

Key Advantages:

One Dish, Two Satellites – Saves space, reduces costs
Fixed Spacing Design – Available for 2°/3°/4.3°/6° satellite separation
DiSEqC Fast Switching – Seamless transition between satellites
Multiple Configurations – Single, Twin, and Quad output options for every need

Product Specifications | Monoblock Ku-Band Single Output LNBF

Basic Parameters

Parameter	Specification
Input Frequency	10.7 ~ 12.75 GHz
Local Oscillator	9.75 GHz (Low Band) / 10.6 GHz (High Band)
Polarization	Vertical / Horizontal
Satellite Reception	Dual-Satellite (4°~6° spacing)
Output Connector	F-Type Female (75Ω)

Detailed Technical Specifications

Low-Band Performance

Parameter	Specification
Input Frequency Range	10.7 ~ 11.7 GHz
Output Frequency Range	950 ~ 1950 MHz
LO Frequency	9.75 GHz
Noise Figure	0.7 dB (Typ.) / 1.0 dB (Max.)

High-Band Performance

Parameter	Specification
Input Frequency Range	11.7 ~ 12.75 GHz
Output Frequency Range	1100 ~ 2150 MHz
LO Frequency	10.6 GHz
Noise Figure	0.7 dB (Typ.) / 1.0 dB (Max.)

Local Oscillator Characteristics

Parameter	Specification
LO Initial Accuracy	0.5 MHz
LO Temperature Drift (-30~+60℃)	0.75 MHz
Phase Noise @ 1 KHz	-70 dBc/Hz
Phase Noise @ 10 KHz	-80 dBc/Hz
Phase Noise @ 100 KHz	-90 dBc/Hz

Gain & Output Performance

Parameter	Specification
Conversion Gain	58 ~ 68 dB
Gain Variation	±4 dB (Max.)
Output 1dB Compression Point	0.0 dBm (Min.)
Image Rejection	40 dB (Min.)
Crosstalk Isolation	20 dB (Min.)
Output VSWR	2.5:1
DC Power Consumption	150 mA
Output Impedance	75Ω (F-Type)

Environmental Protection

Parameter	Specification
Waterproofing	O-Ring Sealed
Operating Temperature	-30℃ ~ +60℃

Comprehensive Operating Modes

The Monoblock LNBF supports 8 distinct operating modes, covering all polarization, band, and satellite combinations:

Satellite A (SA)

Polarization	Band	Satellite
Vertical	Low Band	Satellite A
Vertical	High Band	Satellite A
Horizontal	Low Band	Satellite A
Horizontal	High Band	Satellite A

Satellite B (SB)

Polarization	Band	Satellite
Vertical	Low Band	Satellite B
Vertical	High Band	Satellite B
Horizontal	Low Band	Satellite B
Horizontal	High Band	Satellite B

Typical Applications

Ideal for residential and commercial satellite TV systems requiring multi-satellite reception, broadcast monitoring, and professional satellite communication applications.
