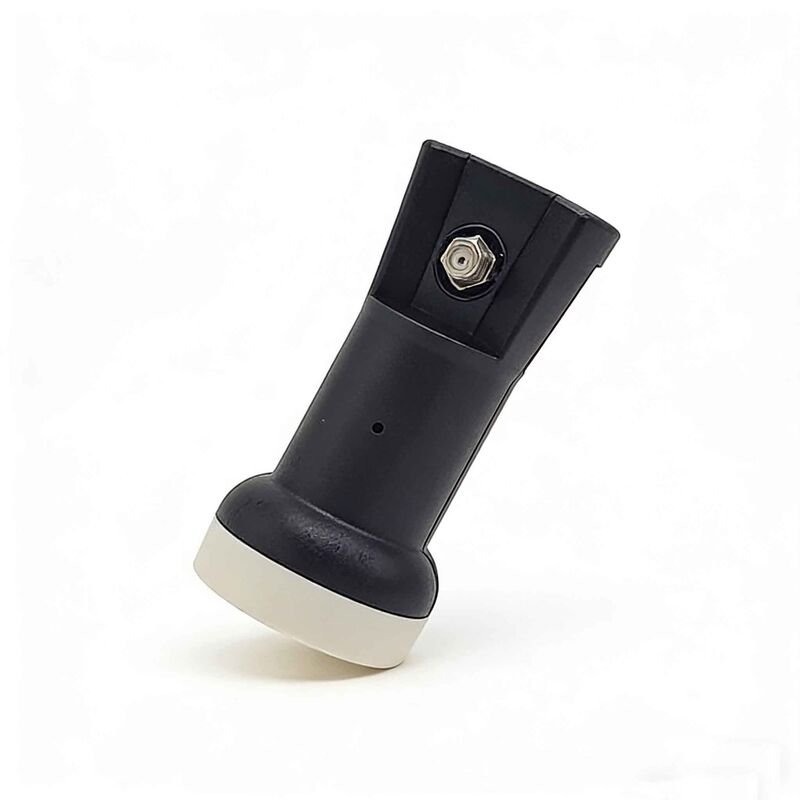

Ku-Band LNBF with 11.7-12.75GHz Frequency Range and Dual-Polarization Support Featuring 10.75GHz Single LO

Ku-Band LNBF with 11.7-12.75GHz Frequency Range and Dual-Polarization Support Featuring 10.75GHz Single LO

11.7-12.75GHz Ku-Band LNBF

Dual-Polarization Ku-Band LNBF

10.75GHz LO Single LO LNBF

Place of Origin:

CHINA

Brand Name:

SETON

Certification:

CE, ISO, RoHS

Model Number:

ST-K11WS

Chat Now
Request A Quote
Ku-Band LNBF with 11.7-12.75GHz Frequency Range and Dual-Polarization Support Featuring 10.75GHz Single LO
Product Details
Input Frequency Range:
11.7GHz ~ 12.75GHz
Output Frequency Range:
950MHz ~ 2000MHz
LO Frequency:
10.75GHz
Noise Figure:
0.7dB (Typ.)/ 1.0dB(Max.)
Conversion Gain:
55dB~65dB/ 60dB (Typ.)
Highlight:

11.7-12.75GHz Ku-Band LNBF

,

Dual-Polarization Ku-Band LNBF

,

10.75GHz LO Single LO LNBF

Payment & Shipping Terms
Minimum Order Quantity
2000pcs
Packaging Details
CARTON
Delivery Time
30-35 days
Payment Terms
T/T,Western Union
Supply Ability
15 million pieces
RELATED PRODUCTS
Good price Ku-Band Single LO LNBF (10.75GHz) - Optimized for 11.7-12.75GHz High-Band Reception online

Ku-Band Single LO LNBF (10.75GHz) - Optimized for 11.7-12.75GHz High-Band Reception

Chat Now
Good price Ku-Band LNBF with 11.7-12.75GHz Frequency Range and Dual-Polarization Support Featuring 10.75GHz Single LO online

Ku-Band LNBF with 11.7-12.75GHz Frequency Range and Dual-Polarization Support Featuring 10.75GHz Single LO

Chat Now
Good price 11.7GHz - 12.75GHz Ku Band Single LO LNBF ST-K11WS 10.75GHz Low Noise online

11.7GHz - 12.75GHz Ku Band Single LO LNBF ST-K11WS 10.75GHz Low Noise

Chat Now
Good price ST-K21WD Universal Single LNBF - Ku-Band, Dual LO 9.75/10.6GHz, V/H Polarization online

ST-K21WD Universal Single LNBF - Ku-Band, Dual LO 9.75/10.6GHz, V/H Polarization

Chat Now
CONTACT US
86-0735-8888458
huang@setontech.cn
Chat Now
Product Description
ST-K11WS Dual-Polarization LNBF
Ku-Band 11.7-12.75GHz Single LO LNBF with integrated feedhorn, supporting both linear (Vertical/Horizontal) and circular (LHCP/RHCP) polarization.
Product Overview
This specialized Ku-band LNBF is designed to receive only the upper portion of the Ku-band frequency spectrum. Its internal electronics are tuned with a fixed, single local oscillator frequency of 10.75 GHz to process the high-band portion of the Ku spectrum efficiently.
Key Features
  • Dual polarization support: Linear (Vertical/Horizontal) and Circular (LHCP/RHCP)
  • Single local oscillator frequency: 10.75 GHz
  • Optimized for high-band Ku spectrum reception: 11.7-12.75 GHz
  • Low noise figure: 0.7dB typical / 1.0dB maximum
  • Standard F-Type output connector (75Ω)
Technical Specifications
Parameter Value
Input Frequency Range 11.7 GHz ~ 12.75 GHz
Output Frequency Range 950 MHz ~ 2000 MHz
Local Oscillator Frequency 10.75 GHz
Noise Figure 0.7 dB (Typ.) / 1.0 dB (Max.)
Conversion Gain 55 dB ~ 65 dB / 60 dB (Typ.)
Output 1dB Compression Point 0.0 dBm (Min.)
Image Rejection -40 dBc (Min.)
Output Impedance 75Ω (F-Type)
Working Temperature -30℃ ~ +60℃
DC Power 10~20V / 100mA (Max.)
