Name: Dual Satellite Monoblock LNBF Model ST-K212F - Professional Ku-Band LNB for 2-Satellite Reception
Brand: Chenzhou Seton Technology Co., Ltd
SKU: ST-K212F
Availability: InStock

Home > Products > TVRO LNBF >

Dual Satellite Monoblock LNBF Model ST-K212F - Professional Ku-Band LNB for 2-Satellite Reception

10.7~12.75GHz Monoblock LNBF

Dual Satellite Ku-Band LNB

0.7dB Noise Figure Dual Satellite LNB

Place of Origin:

CHINA

Brand Name:

SETON

Certification:

CE, ISO

Model Number:

ST-K212F

Chat Now

Request A Quote

Product Details

Input Frequency Range(Low-Band):

10.7 ~ 11.7GHz

Input Frequency Range(High-Band):

11.7~12.75GHz

Output Frequency Range(Low-Band):

950 ~ 1950MHz

Output Frequency Range(High-Band):

1100~2150MHz

Low Band LO Frequency:

9.75GHz

High Band LO Frequency:

10.6GHz

Noise Figure:

0.7dB (Typ.)/ 1.0dB(Max.)

Conversion Gain:

58dB~68dB

Highlight:

10.7~12.75GHz Monoblock LNBF

Dual Satellite Ku-Band LNB

0.7dB Noise Figure Dual Satellite LNB

Payment & Shipping Terms

Minimum Order Quantity

500pcs

Packaging Details

CARTON

Delivery Time

30-35 days

Payment Terms

T/T,Western Union

Supply Ability

15 million pieces

Dual Satellite Monoblock LNBF Model ST-K212F - Professional Ku-Band LNB for 2-Satellite Reception

Chat Now

LNB Protector / 5G Filter for C-Band (3.7-4.2GHz) - Compatible with VSAT and Satellite TV Systems

Chat Now

ST-K24HA Universal Quad LNBF - Ku Band (10.7-12.75GHz) with 9.75/10.6GHz LO

Chat Now

Universal Twin LNBF for Ku-Band (10.7-12.75 GHz) - 0.7dB Noise Figure, Vertical & Horizontal Polarization

Chat Now

86-0735-8888458

huang@setontech.cn

Chat Now

Product Description

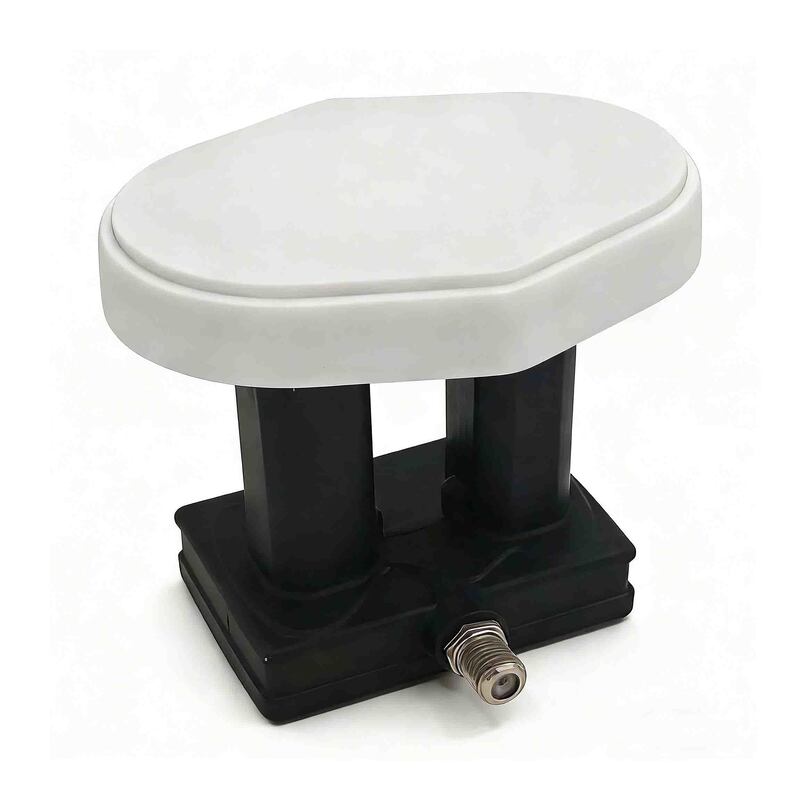

Dual Satellite Monoblock LNBF Model ST-K212F

Product Overview

The ST-K212F is a MONOBLOCK Ku-Band LNBF designed for professional satellite reception with dual satellite capability.

A Monoblock LNBF is a single satellite dish feedhorn unit that houses two built-in LNBs (Low-Noise Block Downconverters) at a fixed, precise distance apart, allowing it to receive signals from two different geostationary satellites simultaneously using a single dish without a motor.

Think of it as a pair of ears on a single head, each permanently angled to hear a different person talking.

Key Features

Input: 10.7~12.75 GHz
LO: 9.75 GHz and 10.6 GHz
Polarization: Vertical and Horizontal
Receive: Two Satellite (4°~6° spacing)

Technical Specifications

Parameter	Low-Band	High-Band
Input Frequency Range	10.7GHz ~ 11.7GHz	11.7GHz ~ 12.75GHz
Output Frequency Range	950MHz ~ 1950MHz	1100MHz ~ 2150MHz
LO Frequency	9.75GHz	10.6GHz
Noise Figure	0.7dB (Typ.)/ 1.0dB(Max.)	0.7dB (Typ.)/ 1.0dB(Max.)
LO Initial Accuracy	0.5MHz
LO Temperature Drift (-30~+60℃)	0.75MHz
LO phase noise @ 1 KHz	-70dBc/Hz
LO phase noise @ 10 KHz	-80dBc/Hz
LO phase noise @ 100 KHz	-90dBc/Hz
Conversion Gain	58dB~68dB
Gain Variation	±4dB (Max.)
O/P 1dB Compression Point (P1 dB)	0.0dBm (Min.)
Image-Rejection	40dB (Min.)
Crosstalk Isolation	20dB (Min.)
O/P VSWR	2.5:1
DC-Power	150mA
Output Impedance	75Ω (F-Type)
Waterproof	O-RING
Working Temperature	-30℃~+60 ℃

Polarity, Band & Satellite Selection

Configuration	Value
Polarity, Band & Satellite Selection (V, Low, SA)	Vertical, Low band, Sat: A
Polarity, Band & Satellite Selection (V, High, SA)	Vertical, High band, Sat: A
Polarity, Band & Satellite Selection (H, Low, SA)	Horizontal, Low band, Sat: A
Polarity, Band & Satellite Selection (H, High, SA)	Horizontal, High band, Sat: A
Polarity, Band & Satellite Selection (V, Low, SB)	Vertical, Low band, Sat: B
Polarity, Band & Satellite Selection (V, High, SB)	Vertical, High band, Sat: B
Polarity, Band & Satellite Selection (H, Low, SB)	Horizontal, Low band, Sat: B
Polarity, Band & Satellite Selection (H, High, SB)	Horizontal, High band, Sat: B

Frequently Asked Questions

What is a Monoblock LNB?

This design features two independent LNBs in a single housing, allowing reception from two different satellites at slightly different orbital positions using a single dish. Switching between satellites is achieved via DiSEqC signals. Monoblock LNBs are available mostly for satellites with fixed 2°/3°/4.3° or 6° spacing, covering Ku band with single, twin, and quad outputs.

Why It Exists: The Problem It Solves

Many TV channels and services are broadcast from clusters of satellites positioned close together in the sky (e.g., 6°, 4.3°, or 3° apart). Instead of installing two separate dishes or a heavy, expensive motorized dish to swing between them, a Monoblock LNBF provides a simple, fixed, and cost-effective solution.

How It Works

Two LNBs in One Housing: The "block" in Monoblock refers to the single, integrated unit. The two LNBs are not adjustable; their spacing is factory-set for a specific satellite orbital separation (e.g., 4.3°E/5°E, 13°E/16°E, or the very popular Astra 19.2°E & Hotbird 13.0°E, which are 6.2° apart).
Fixed Angle (Skew): The unit is designed to be mounted centrally on the dish's arm. The skew (rotation) of the entire block is adjusted during installation to match the polarization angle for both satellites.
Dish Size Requirement: Because the dish's focal point is optimally aligned for the primary (central) satellite, the secondary satellite is slightly "off-focus." Therefore, a larger-than-minimum dish size (often 80cm or larger in Europe) is usually recommended to gather enough signal for both satellites.
Connection: A Monoblock LNBF has two output cables (one for each satellite). These connect directly to a satellite receiver with two independent tuners (a Twin Tuner receiver) or to a multi-switch to feed multiple receivers.

Common Uses

European Free-to-Air (FTA): The classic combo is Astra 19.2°E (German, French, international channels) and Hotbird 13.0°E (Italian, Middle Eastern, Eastern European channels). A 6° Monoblock is standard for this.
International Content: Popular in expatriate communities to receive channels from two nearby satellites from their home country.
Simultaneous Recording/Watching: Allows one tuner to record from a channel on Satellite A while watching a channel on Satellite B.
